Pipe 3586088

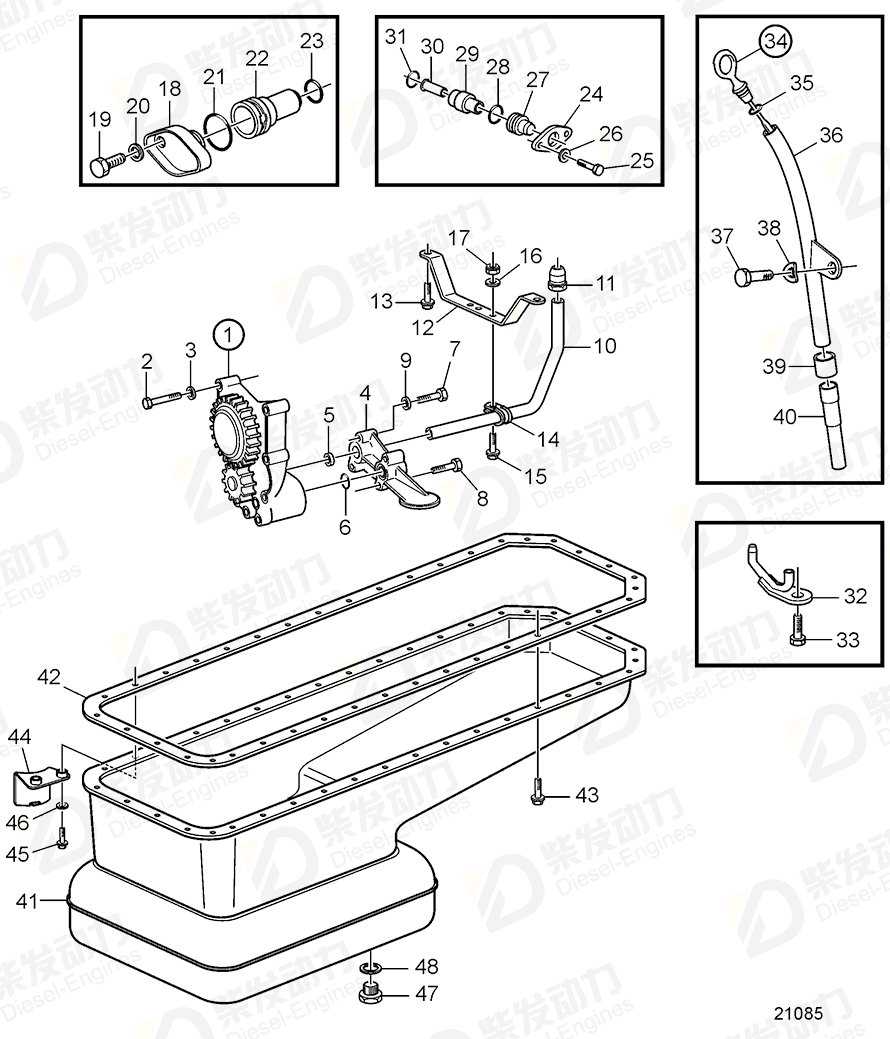

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 479317 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Spring washer | 942336 | 4 | |
| 4 | Oil strainer | 479325 | 1 | |
| 5 | Sealing ring | 470263 | 1 | Late type |
| 6 | O-ring | 949659 | 1 | |
| 7 | Hexagon screw | 949886 | 2 | (191337) |
| 8 | Hexagon screw | 959794 | 2 | |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Oil pressure pipe | 1545828 | 1 | |
| 11 | Fitting | 466908 | 1 | |
| 12 | Bracket | 470918 | 1 | |
| 13 | Flange screw | 942402 | 2 | |
| 14 | Attaching clamp | 1545432 | 1 | |
| 15 | Flange screw | 942402 | 1 | |
| 16 | Spring washer | 941907 | 1 | |
| 17 | Hexagon nut | 955826 | 1 | |
| 18 | Cover | 471752 | 1 | |
| 19 | Hexagon screw | 940100 | 2 | |
| 20 | Spring washer | 941906 | 2 | |
| 21 | O-ring | 949658 | 1 | (925061) early type |
| 22 | Reduction valve | 471707 | 1 | |
| 23 | Sealing ring | 469846 | 1 | |
| 24 | Flange | 424714 | 1 | |
| 25 | Hexagon screw | 955513 | 2 | |
| 26 | Spring washer | 941906 | 2 | |
| 27 | Plug | 424715 | 1 | |
| 28 | O-ring | 949657 | 1 | (925060) |
| 29 | Valve | 422836 | 1 | For DH10A, THD102KD |
| 30 | Pipe | 424801 | 1 | |
| 31 | O-ring | 949656 | 1 | |
| 32 | Piston cooling jet | 864374 | 6 | For DH10A |
| 33 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 34 | Oil dipstick | 478624 | 1 | Replaced by 23171001 |
| 34 | Oil dipstick | 23171001 | 1 | |
| 35 | O-ring | 949187 | 1 | |
| 36 | Tube | 479302 | 1 | |
| 37 | Hexagon screw | 940100 | 1 | |
| 38 | Spring washer | 941906 | 1 | |
| 39 | Hose | 191512 | 1 | L=40mm |
| 40 | Pipe | 3586088 | 1 | (467235) |
| 41 | Oil sump | 1545840 | 1 | |
| 42 | Gasket | 1545696 | 1 | |
| 43 | Flange screw | 942402 | 39 | |
| 44 | Bracket, oil cooler | 467916 | 1 | |
| 45 | Hexagon screw | 955525 | 2 | |
| 46 | Spring washer | 941907 | 2 | |
| 47 | Magnetic plug | 949175 | 1 | |
| 48 | Gasket | 18813 | 1 |
| Item | Part Name | Part No. |
| 40 | Pipe 3586088 | 3586088 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TD1030VE, TWD1031VE |
| Application | Lubricating System |
| Specification | |
| Descriptions | (467235) |
