Pipe 836747

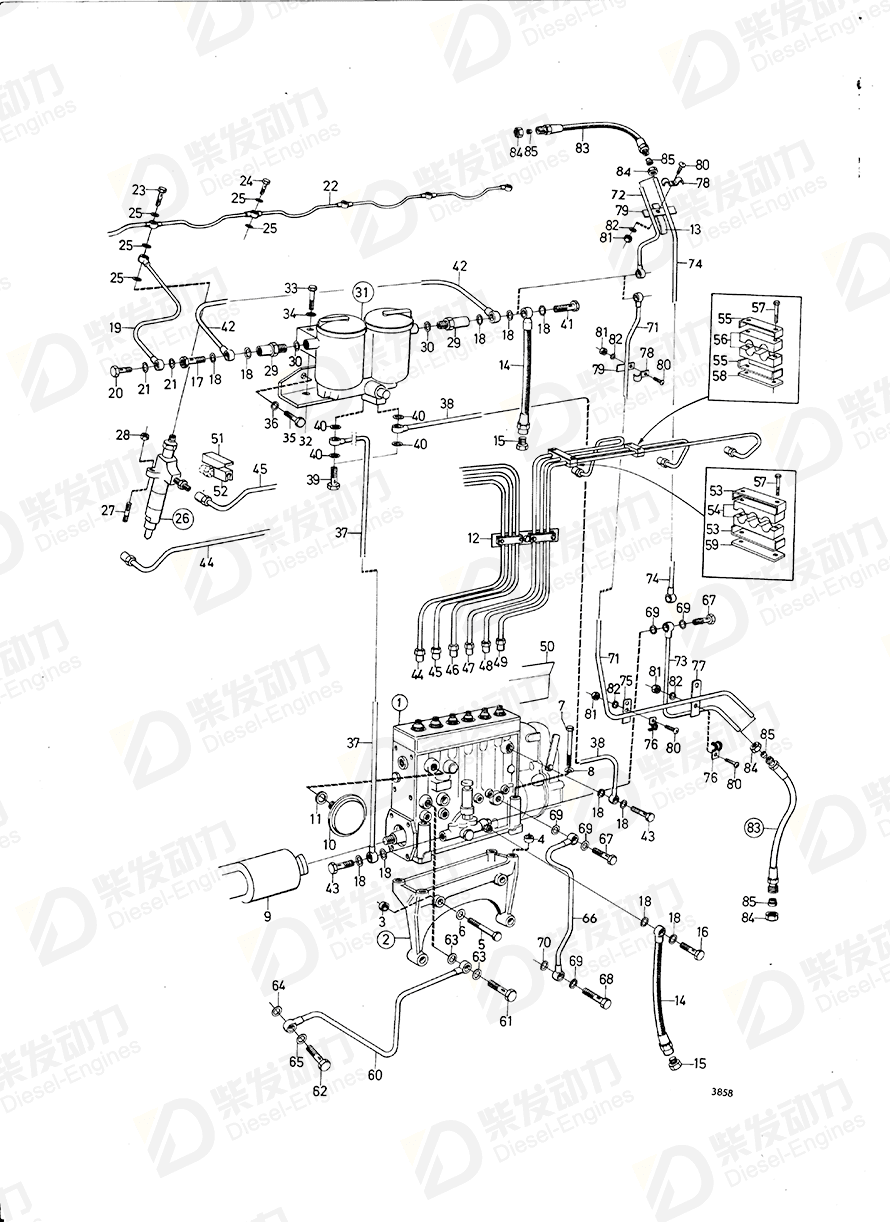

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 843978 | 1 | Repair kit 6211269 |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 10 | Pressure equalizer | 466398 | 1 | |
| 11 | Gasket | 957178 | 1 | |
| 12 | Bracket | 822546 | 1 | |
| 14 | Fuel hose | 845372 | 2 | (837364) |
| 15 | Nipple | 22753 | 2 | |
| 16 | Hollow screw | 25167 | 1 | |
| 17 | Hollow screw | 16496 | 1 | |
| 18 | Gasket | 957178 | 11 | |
| 19 | Pipe | 836747 | 1 | |
| 20 | Hollow screw | 74033 | 1 | |
| 21 | Gasket | 957171 | 2 | |
| 22 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 23 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 24 | Hollow screw | 74033 | 5 | |
| 25 | Gasket | 957171 | 13 | |
| 26 | Injector | 837097 | 6 | |
| 26 | Injector | 3803249 | 6 | |
| 27 | Stud | 941928 | 12 | |
| 28 | Nut | 417110 | 12 | |
| 29 | Overflow valve | 35096 | 2 | |
| 30 | Gasket | 957178 | 2 | |
| 31 | Fuel filter kit | 243405 | 1 | |
| 32 | Bracket | 845319 | 1 | (836365) |
| 33 | Hexagon screw | 940134 | 2 | |
| 34 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 35 | Hexagon screw | 940115 | 2 | |
| 36 | Spring washer | 942336 | 2 | |
| 37 | Fuel pipe | 836750 | 1 | |
| 38 | Fuel pipe | 836749 | 1 | |
| 39 | Hollow screw | 26013 | 2 | AQ115A MOXXXX/86909-. |
| 40 | Gasket | 957181 | 4 | |
| 41 | Hollow screw | 180211 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 42 | Pipe | 836748 | 1 | |
| 43 | Hollow screw | 25167 | 2 | |
| 44 | Delivery pipe | 823781 | 1 | |
| 45 | Delivery pipe | 823782 | 1 | |
| 46 | Delivery pipe | 823783 | 1 | |
| 47 | Delivery pipe | 823784 | 1 | |
| 48 | Delivery pipe | 823785 | 1 | |
| 49 | Delivery pipe | 823786 | 1 | |
| 50 | Protecting plate | 824377 | 1 | |
| 51 | Protecting plate | 824379 | 6 | |
| 52 | Protecting sleeve | 836456 | 6 | |
| 53 | Attaching clamp | 414346 | 8 | |
| 54 | Attaching clamp | 414347 | 8 | |
| 55 | Attaching clamp | 414344 | 2 | |
| 56 | Attaching clamp | 414345 | 2 | |
| 57 | Hexagon screw | 955247 | 10 | |
| 58 | Nut plate | 414736 | 1 | |
| 59 | Nut plate | 414735 | 2 | |
| 60 | Feed line | 423393 | 1 | |
| 61 | Hollow screw | 48634 | 1 | |
| 62 | Hollow screw | 942081 | 1 | |
| 63 | Gasket | 957173 | 2 | |
| 64 | Gasket | 18666 | 1 | |
| 65 | Gasket | 11994 | 1 | |
| 66 | Return pipe | 422246 | 1 | |
| 67 | Hollow screw | 25167 | 1 | |
| 68 | Hollow screw | 954394 | 1 | |
| 69 | Gasket | 957178 | 3 | |
| 70 | Gasket | 957181 | 1 | |
| 71 | Fuel pipe | 837610 | 1 | MOXXXXX/9820- |
| 73 | Fuel pipe | 837607 | 1 | Replaced by 837363., See group2D |
| 75 | Anchorage | 821036 | 1 | |
| 76 | Clamp | 952625 | 2 | |
| 77 | Anchorage | 821625 | 1 | |
| 78 | Clamp | 941492 | 1 | |
| 79 | Anchorage | 821076 | 1 | |
| 80 | Cross recessed screw | 950046 | 4 | |
| 81 | Hexagon nut | 955825 | 4 | Late type |
| 82 | Spring washer | 941906 | 4 | |
| 83 | Fuel hose | 845450 | 2 | (880618) |
| 84 | Fitting nut | 956983 | 2 | |
| 85 | Ferrule | 956969 | 2 |
| Item | Part Name | Part No. |
| 19 | Pipe 836747 | 836747 |
| Details | |
| Engine model | D120A TAD120AHC TD120A TD120AHC TD120ARC |
| Application | Classed Fuel System: A Classed Fuel System: B Fuel System: A Fuel System: B Fuel System: C |
