Pipe 896775

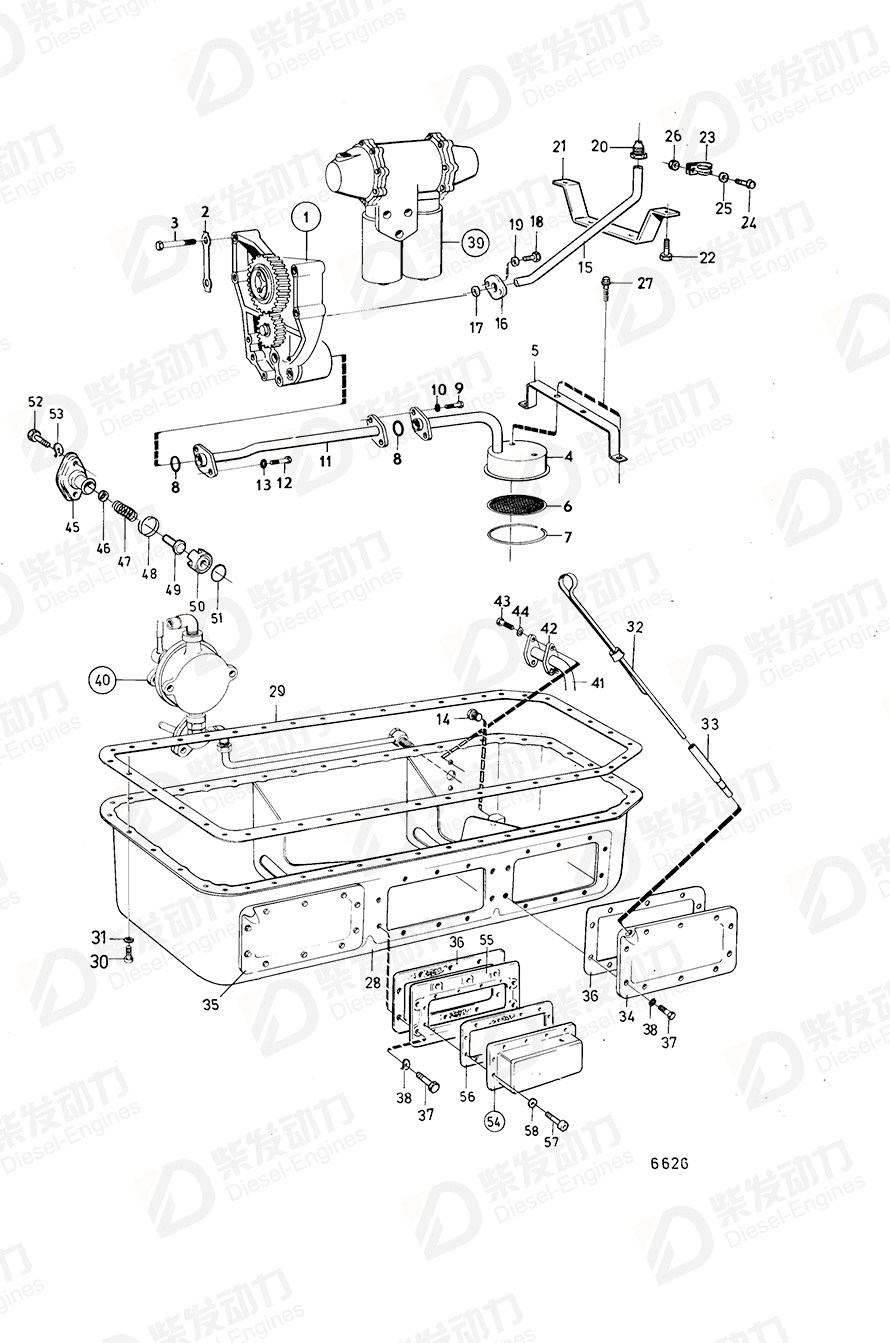

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 468351 | 1 | MO16911/XXXXX- |
| 2 | Tab washer | 190529 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 824156 | 1 | |
| 5 | Bracket | 896682 | 1 | |
| 6 | Wire gauze | 414621 | 1 | |
| 7 | Retaining ring | 118125 | 1 | |
| 8 | O-ring | 949658 | 2 | (925061) early type |
| 9 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 10 | Spring washer | 941907 | 2 | |
| 11 | Intermediate pipe | 824174 | 1 | |
| 12 | Hexagon screw | 940135 | 2 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Magnetic plug | 951906 | 1 | |
| 15 | Oil pressure pipe | 470264 | 1 | Late type |
| 16 | Flange | 470262 | 1 | Late type |
| 17 | Sealing ring | 470263 | 1 | Late type |
| 18 | Hexagon screw | 959793 | 2 | |
| 19 | Washer | 955894 | 2 | |
| 20 | Fitting | 466908 | 1 | |
| 21 | Bracket | 470143 | 1 | Late type |
| 22 | Flange screw | 942402 | 2 | |
| 23 | Clamp | 949786 | 1 | Late type |
| 24 | Flange screw | 942402 | 1 | |
| 25 | Washer | 955894 | 1 | |
| 26 | Lock nut | 945467 | 1 | Late type |
| 27 | Flange screw | 942402 | 4 | |
| 28 | Crankcase | 822586 | 1 | |
| 29 | Gasket | 470133 | 1 | (423365) |
| 30 | Hex. socket screw | 956570 | 43 | |
| 31 | Spring washer | 941907 | 43 | |
| 32 | Oil dipstick | 822542 | 1 | |
| 33 | Tube | 846922 | 1 | (785606) |
| 34 | Hatch | 822588 | 1 | |
| 35 | Cover | 822587 | 2 | |
| 36 | Gasket | 822589 | 3 | |
| 37 | Hexagon screw | 955535 | 30 | |
| 38 | Spring washer | 942336 | 30 | |
| 41 | Pipe | 896775 | 1 | |
| 42 | Gasket | 802287 | 1 | |
| 43 | Hexagon screw | 955525 | 2 | |
| 44 | Spring washer | 941907 | 2 | |
| 45 | Cover | 469465 | 1 | |
| 46 | O-ring | 949658 | 1 | (925061) early type |
| 47 | Spring | 468727 | 1 | For 424920 |
| 48 | Compression spring | 470291 | 1 | |
| 49 | Valve cone | 471085 | 1 | |
| 50 | Valve seat | 469468 | 1 | |
| 51 | Sealing ring | 424342 | 1 | |
| 52 | Hexagon screw | 955512 | 2 | |
| 53 | Washer | 192287 | 2 | Spec. 867055., Replaced by later production., Early type |
| 55 | Cap | 843503 | 1 | 5 |
| 56 | Gasket | 823185 | 1 | |
| 57 | Hex. socket screw | 956569 | 12 | |
| 58 | Gasket | 11992 | 12 |
| Item | Part Name | Part No. |
| 41 | Pipe 896775 | 896775 |
| Details | |
| Engine model | D120A, TD120A D70B TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100ARC TD100CHC TD100CRC TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | LUBRICATING SYSTEM Lubricating System, Classed Engine Lubricating System, Classed Engine: A Lubricating System: A Lubricating System: B Lubricating System: C Lubricating System: D Oil Sump Pump and Installation Components: A |
| Specification | |
| Descriptions | Spec. 867113. alt spec. 9969. |
