Pipe elbow 842866

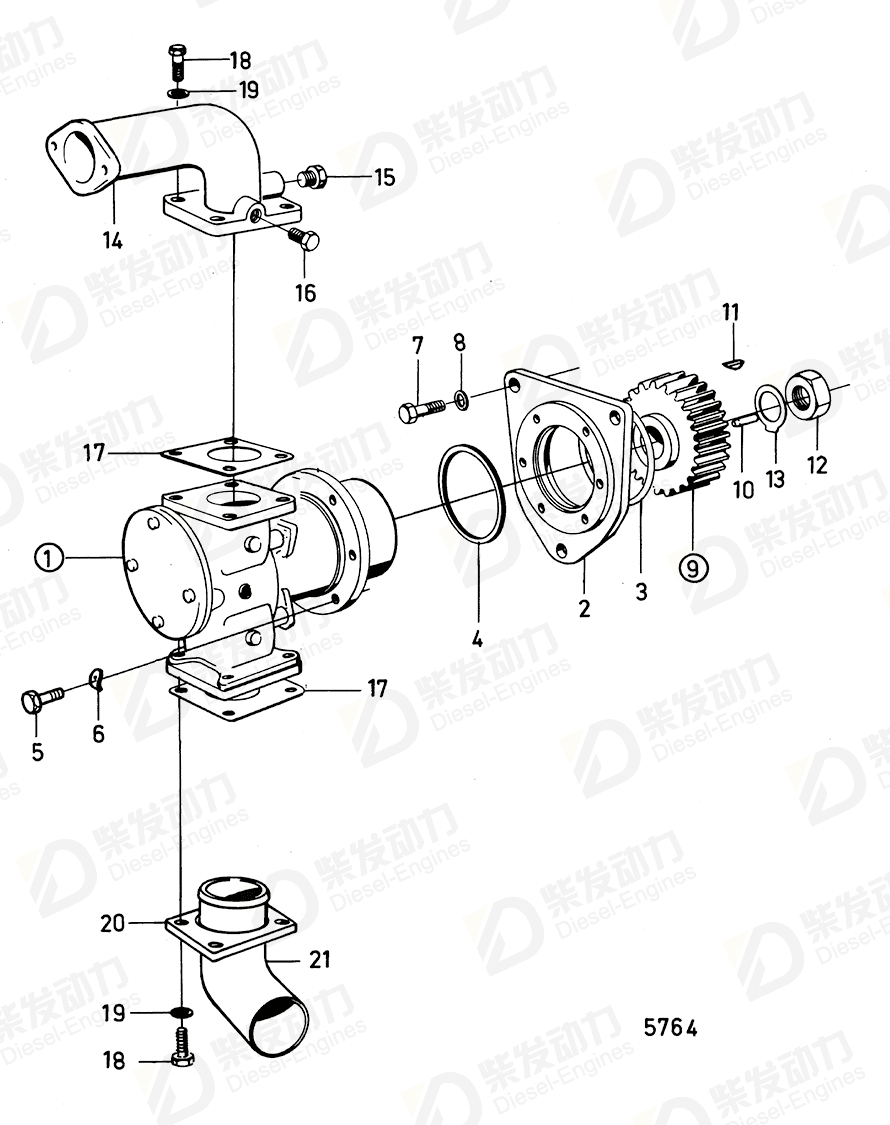

| No. | Part Name | Part Number | Qty | Description |
| 1 | Sea water pump | 845189 | 1 | |
| 2 | Spacer | 820695 | 1 | |
| 3 | O-ring | 925095 | 1 | |
| 4 | O-ring | 975610 | 1 | For engines without air compressor. |
| 5 | Hexagon screw | 940114 | 3 | |
| 6 | Spring washer | 942336 | 3 | |
| 7 | Hexagon screw | 955576 | 3 | |
| 8 | Spring washer | 941911 | 3 | |
| 9 | Gear, SEA WATER PUMP | 820957 | 1 | MB20B MO-XXXX/86637., SEE GROUP 2B |
| 10 | Pin | 950564 | 1 | |
| 11 | Woodruff key | 942406 | 1 | SEE GROUP 2A |
| 12 | Hexagon nut | 955860 | 1 | |
| 13 | Tab washer | 942735 | 1 | |
| 14 | Pipe elbow | 842866 | 1 | |
| 15 | Plug | 180759 | 1 | |
| 16 | Plug | 192134 | 1 | |
| 17 | Gasket | 862583 | 2 | |
| 18 | Hexagon screw | 940114 | 8 | |
| 19 | Spring washer | 942336 | 8 | |
| 20 | Flange | 842867 | 1 | |
| 21 | Hose attachment | 842868 | 1 |
| Item | Part Name | Part No. |
| 14 | Pipe elbow 842866 | 842866 |
| Details | |
| Engine model | TAD120BHC TAD120CHC TAD121CHC |
| Application | Cooling System, Induction and Exhaust Manifold Sea Water Pump with Installation Components Sea Water Pump with Installation Components: B |
