Pipe flange 843577

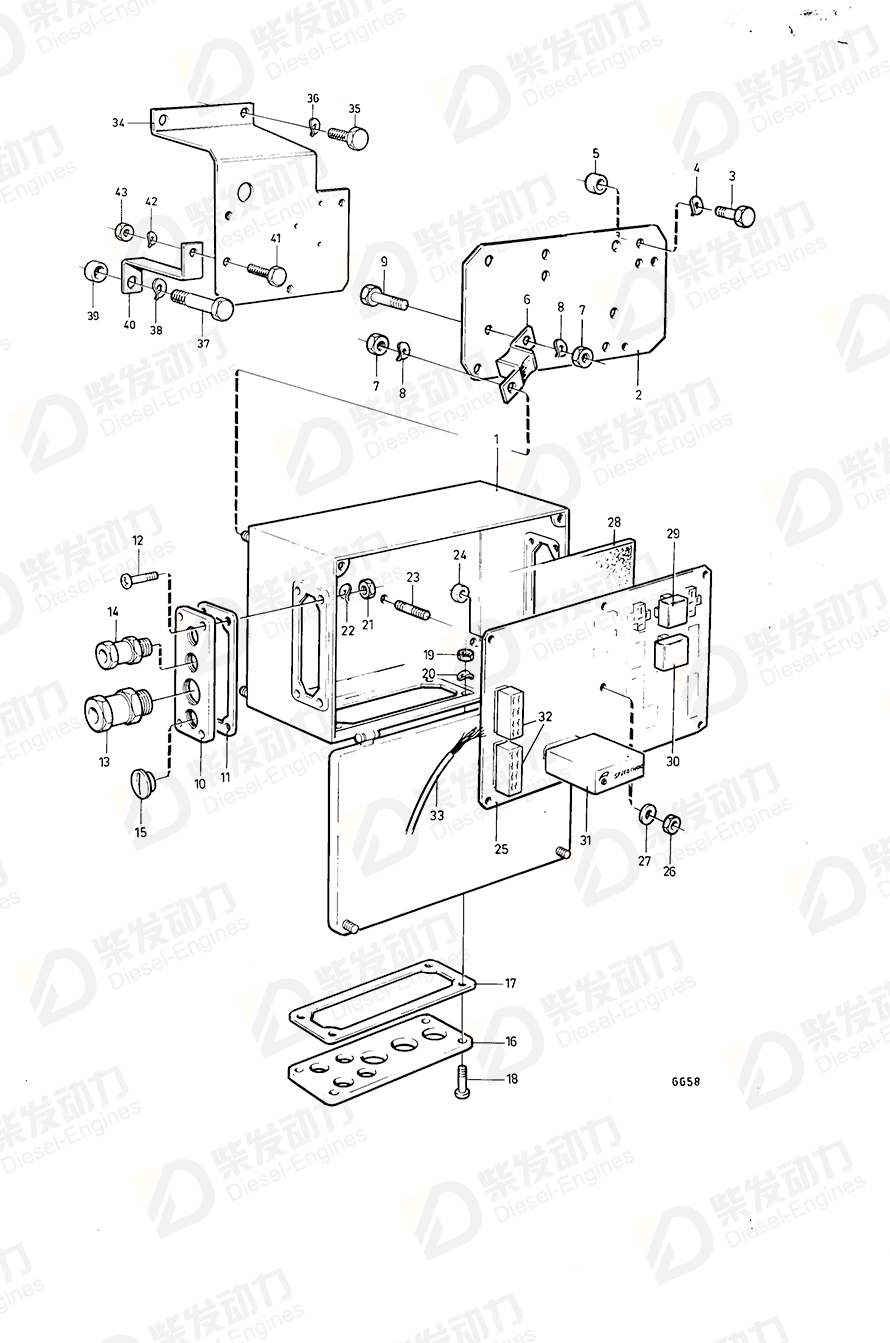

| No. | Part Name | Part Number | Qty | Description |
| 1 | Box | 843536 | 1 | |
| 2 | Attaching plate | 843562 | 1 | |
| 3 | Hexagon screw | 940159 | 3 | |
| 4 | Spring washer | 941907 | 3 | |
| 5 | Spacer sleeve | 821539 | 3 | L=14mm, spec 9762 |
| 6 | Vibration damper | 845513 | 4 | MOXXXX/39533- |
| 7 | Hexagon nut | 955782 | 8 | |
| 8 | Spring washer | 941907 | 8 | |
| 9 | Hexagon screw | 955295 | 4 | |
| 10 | Pipe flange | 843094 | 2 | |
| 11 | Gasket | 843578 | 2 | |
| 12 | Cross recessed screw | 956093 | 8 | |
| 13 | Grommet | 881193 | 2 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 14 | Grommet | 822327 | 2 | |
| 15 | Plug | 843903 | 1 | |
| 16 | Pipe flange | 843577 | 1 | |
| 17 | Gasket | 843579 | 1 | |
| 18 | Cross recessed screw | 956114 | 4 | |
| 19 | Hexagon nut | 955782 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Hexagon nut | 955781 | 8 | |
| 22 | Spring washer | 941906 | 8 | |
| 23 | Stud | 924045 | 6 | LATE TYPE |
| 24 | Washer | 962673 | 6 | |
| 25 | Circuit board | 843375 | 1 | |
| 26 | Lock nut | 963104 | 6 | |
| 27 | Washer | 962673 | 6 | |
| 28 | Damping element | 845463 | 1 | |
| 29 | Relay | 1504951 | 16 | For instrument panel 841096 and 841097., 24Vlate production. |
| 30 | Voltage monitor | 842987 | 1 | |
| 31 | Runaway monitor | 843910 | 1 | |
| 32 | Housing | 944077 | 4 | 6,3x8 natural |
| 34 | Bracket | 846819 | 1 | |
| 35 | Hexagon screw | 940133 | 2 | |
| 36 | Spring washer | 942336 | 2 | |
| 37 | Hexagon screw | 955562 | 1 | L=38mm |
| 38 | Spring washer | 940280 | 1 | |
| 39 | Spacer sleeve | 823196 | 1 | For bracket 829839 with 8 holes. |
| 40 | Bracket | 846911 | 1 | |
| 41 | Hexagon screw | 955524 | 1 | Used on crankshaft 829999. |
| 42 | Spring washer | 941907 | 1 | |
| 43 | Hexagon nut | 955826 | 1 |
| Item | Part Name | Part No. |
| 16 | Pipe flange 843577 | 843577 |
| Details | |
| Engine model | D70CHC, D70CRC, TD70CHC, TD70CRC TAD120AHC TAD120CHC TAD121CHC TD100ARC TD100CHC TD100CRC TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | Electrical Box and Installation Components Electrical Box and Installation Components: A Electrical Box and Installation Components: B Electrical Box and Installation Components: C Electrical Box and Installation Components: D ELECTRICAL BOX WITH INSTALLATION COMPONENTS |
