Pivot pin 843923

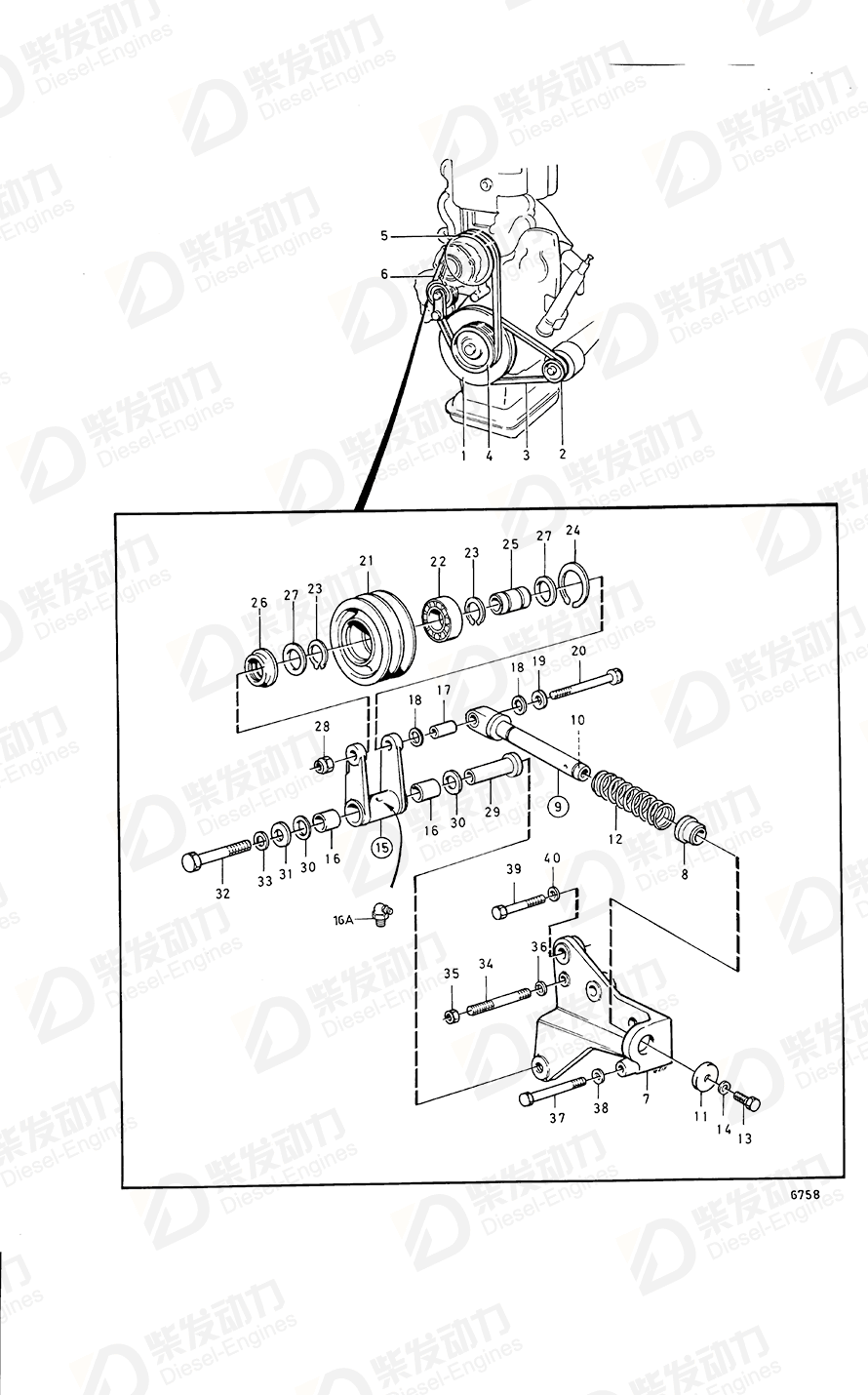

| No. | Part Name | Part Number | Qty | Description |
| 3 | V-belt | 958319 | 1 | |
| 6 | V-belt | 967194 | 1 | L = 2X1338 MM |
| 7 | Bracket | 843913 | 1 | |
| 8 | Bushing | 843914 | 1 | |
| 9 | Spring guide | 843915 | 1 | |
| 10 | End plate | 843918 | 1 | |
| 11 | Bearing bushing | 943959 | 1 | |
| 12 | Compression spring | 843919 | 1 | |
| 13 | Hexagon screw | 955269 | 1 | For 1570594 |
| 14 | Spring washer | 941906 | 1 | |
| 15 | Link arm | 847034 | 1 | |
| 16 | Bearing bushing | 946176 | 2 | |
| 17 | Pivot pin | 843923 | 1 | |
| 18 | Wear washer | 843924 | 2 | |
| 19 | Washer | 960143 | 1 | |
| 20 | Hexagon screw | 955329 | 1 | |
| 21 | Pulley | 844048 | 1 | |
| 22 | Ball bearing | 1544092 | 1 | (181430) |
| 23 | Retaining ring | 914462 | 2 | |
| 24 | Retaining ring | 914533 | 1 | |
| 25 | Spindle | 843925 | 1 | |
| 26 | Protecting plate | 844049 | 2 | |
| 27 | Sealing ring | 965862 | 2 | |
| 28 | Lock nut | 963107 | 1 | |
| 29 | Spindle | 843926 | 1 | |
| 30 | Wear washer | 843927 | 2 | |
| 31 | Washer | 18702 | 1 | |
| 32 | Hexagon screw | 962914 | 1 | |
| 33 | Spring washer | 941911 | 1 | |
| 34 | Stud | 953278 | 1 | |
| 35 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 36 | Spring washer | 942336 | 1 | |
| 37 | Hexagon screw | 959797 | 1 | |
| 38 | Spring washer | 942336 | 1 | |
| 39 | Hexagon screw | 955578 | 1 | |
| 40 | Spring washer | 941911 | 1 | |
| 16A | Lubricating nipple | 914170 | 1 |
| Item | Part Name | Part No. |
| 17 | Pivot pin 843923 | 843923 |
| Details | |
| Engine model | TD120C TD120G TD70G TD70G-83, TID70G TID120FG |
| Application | Automatic Belt Tensioner and Installation Components Automatic Belt Tensioner and Installation Components Alt Belt Transmission and Automatic Belt Tensioner |
