Plane gasket 21630537

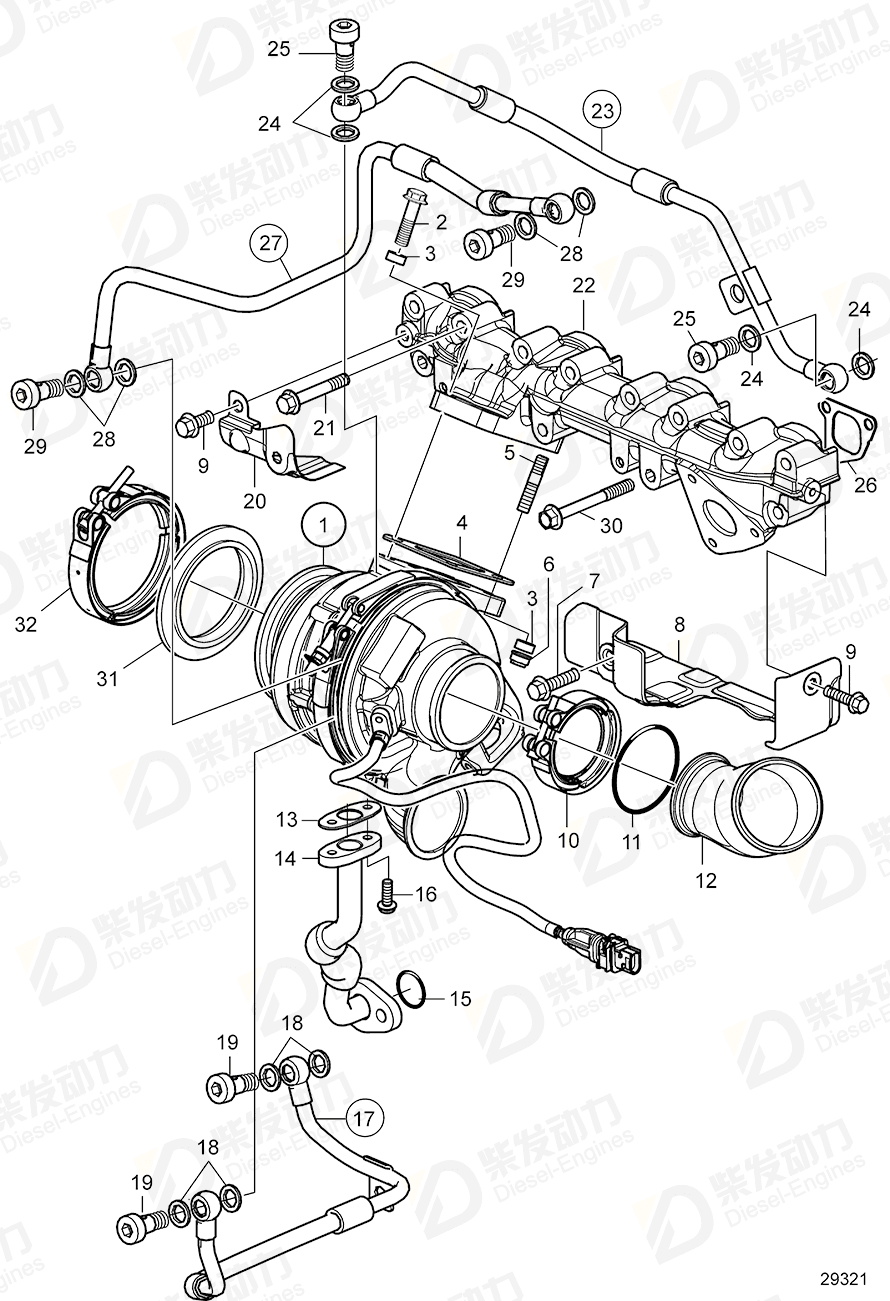

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801569 | 1 | Outlet, Low, Replaced by 3801637 |
| 1 | Turbocharger, exch | 3801637 | 1 | Outlet, Low, Replaced by 3801737 |
| 1 | Turbocharger, exch | 3801737 | 1 | Outlet, Low, Replaced by 3801788 |
| 1 | Turbocharger | 3801788 | 1 | Outlet, Low |
| 1 | Turbocharger | 22005659 | 1 | Outlet, Low, Replaced by 22374727 |
| 1 | Turbocharger | 22374727 | 1 | Outlet, Low, Replaced by 22557651 |
| 1 | Turbocharger | 22557651 | 1 | Outlet, Low, Replaced by 23162534 |
| 1 | Turbocharger | 23162534 | 1 | Outlet, Low |
| 2 | Flange screw | 981000 | 2 | |
| 3 | Spacer sleeve | 470467 | 2 | |
| 4 | Plane gasket | 21630537 | 1 | |
| 5 | Stud | 977581 | 2 | |
| 6 | Flange nut | 1543499 | 2 | |
| 7 | Flange screw | 984734 | 1 | |
| 8 | Heat shield | 21682971 | 1 | |
| 9 | Flange screw | 984733 | 3 | |
| 10 | Hose clamp | 20592787 | 1 | |
| 11 | Sealing ring | 1542781 | 1 | |
| 12 | Connecting pipe | 21750927 | 1 | |
| 13 | Gasket | 21638923 | 1 | |
| 14 | Oil return pipe | 21553660 | 1 | Replaced by 22628282 |
| 14 | Oil return pipe | 22628282 | 1 | |
| 15 | Sealing ring | 21940615 | 1 | |
| 16 | Flange screw | 984734 | 2 | |
| 17 | Coolant pipe | 21553676 | 1 | Replaced by 22702048 |
| 17 | Coolant pipe | 22702048 | 1 | |
| 18 | Sealing ring | 20852763 | 4 | |
| 19 | Anchorage | 22038622 | 2 | |
| 20 | Shield | 21611895 | 1 | |
| 21 | Flange screw | 995653 | 12 | |
| 22 | Exhaust manifold | 21996449 | 1 | |
| 23 | Pressure hose | 21553658 | 1 | Replaced by 22698665 |
| 23 | Pressure hose | 22698665 | 1 | Replaced by 22701707 |
| 23 | Pressure hose | 22701707 | 1 | |
| 24 | Gasket | 22505410 | 4 | |
| 25 | Anchorage | 22038622 | 2 | |
| 26 | Gasket | 21742293 | 4 | |
| 27 | Coolant pipe | 21943991 | 1 | Replaced by 22702038 |
| 27 | Coolant pipe | 22702038 | 1 | |
| 28 | Sealing ring | 20852763 | 4 | |
| 29 | Anchorage | 22038622 | 2 | |
| 30 | Flange screw | 21344787 | 2 | |
| 31 | Flange | 22366011 | 1 | |
| 32 | V-clamp | 21472836 | 1 |
| Item | Part Name | Part No. |
| 4 | Plane gasket 21630537 | 21630537 |
| Details | |
| Engine model | TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE |
| Application | Exhaust Manifold and Turbocharger. Exhaust Manifold and Turbocharger. High Outlet. Exhaust Manifold and Turbocharger. Low Outlet. Repair Kits |
