Plate 3829353

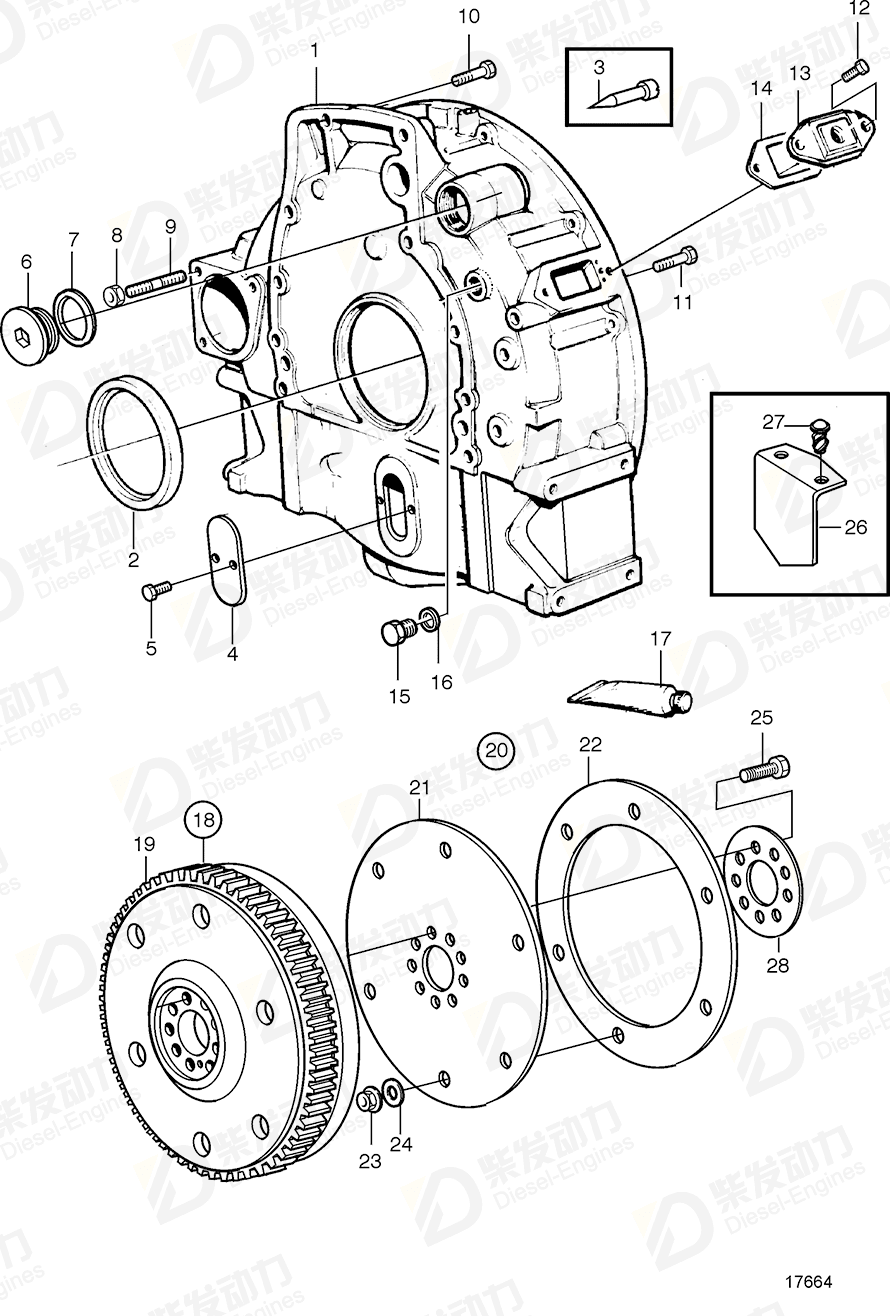

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 3829352 | 1 | |
| 2 | Crankshaft seal | 477119 | 1 | (3825165) |
| 3 | Setting indicator | 864494 | 1 | |
| 4 | Plate | 3829353 | 1 | |
| 5 | Flange screw | 967949 | 2 | |
| 6 | Plug | 467367 | 1 | |
| 7 | Gasket | 469328 | 1 | |
| 8 | Flange nut | 971095 | 3 | Alt |
| 9 | Stud | 953067 | 3 | |
| 10 | Flange screw | 966363 | 2 | L=65mm |
| 11 | Flange screw | 966361 | 6 | L=55mm |
| 11 | Flange screw | 968753 | 2 | L=75mm |
| 12 | Flange screw | 946934 | 2 | |
| 13 | Cover | 4772169 | 1 | For electric speed control. |
| 14 | Gasket | 4804167 | 1 | |
| 15 | Plug | 180761 | 1 | |
| 16 | Gasket | 11996 | 1 | |
| 17 | Sealant | 1161231 | 1 | 304ml |
| 18 | Flywheel | 3825287 | 1 | For MT643 with flywheel housing of vehichle type. |
| 19 | Ring gear | 420314 | 1 | |
| 20 | Flexplate | 3827293 | 1 | |
| 23 | Nut set | 1529230 | 1 | |
| 24 | Washer | 960142 | 6 | Replaced by 1 PC 843512,1 ST 191026. |
| 25 | Flange screw | 465826 | 9 | SN-2071018953 |
| 26 | Setting indicator | 865522 | 1 | For Allison MT643 with Volvo Penta flywheel housing |
| 27 | Drive screw | 905654 | 2 | |
| 28 | Thrust plate | 477844 | 1 |
| Item | Part Name | Part No. |
| 4 | Plate 3829353 | 3829353 |
| Details | |
| Engine model | TD640VE TWD740VE |
| Application | Flywheel and Flywheel Housing for Allison MD3060 Flywheel and Flywheel Housing for Allison MT643, MT653 |
