Plate 4778040

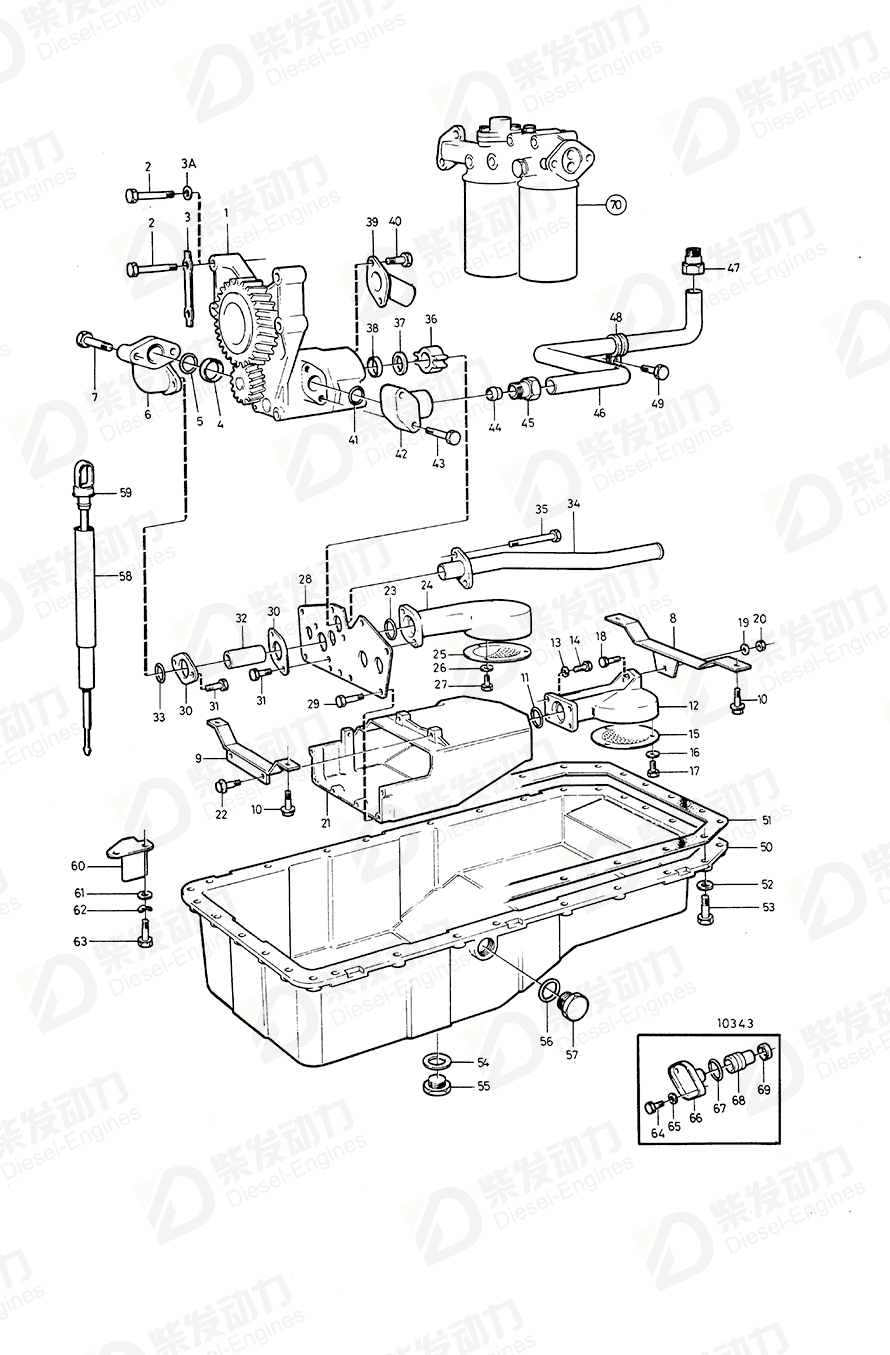

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 4778318 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Tab washer | 190529 | 2 | |
| 4 | Sleeve | 4778328 | 1 | |
| 5 | O-ring | 944126 | 1 | |
| 6 | Connector | 4778327 | 1 | |
| 7 | Flange screw | 965179 | 2 | |
| 8 | Bracket | 11031506 | 1 | |
| 9 | Bracket | 4778344 | 1 | |
| 10 | Flange screw | 942402 | 4 | |
| 11 | O-ring | 944126 | 1 | |
| 12 | Strainer housing | 4778037 | 1 | |
| 13 | Washer | 955894 | 4 | |
| 14 | Hexagon screw | 940142 | 4 | ÅKERMAN. |
| 15 | Strainer | 4778048 | 1 | |
| 16 | Toothed washer | 955948 | 3 | |
| 17 | Hexagon screw | 955268 | 3 | |
| 18 | Flange screw | 945444 | 1 | |
| 19 | Washer | 955894 | 1 | |
| 20 | Lock nut | 946036 | 1 | |
| 21 | Oil reservoir | 4778343 | 1 | |
| 22 | Flange screw | 945444 | 2 | |
| 23 | O-ring | 944126 | 1 | |
| 24 | Strainer housing | 4778466 | 1 | |
| 25 | Strainer | 4778048 | 1 | |
| 26 | Toothed washer | 955948 | 3 | |
| 27 | Hexagon screw | 955268 | 3 | |
| 28 | Plate | 4778040 | 1 | |
| 29 | Flange screw | 946440 | 6 | |
| 30 | Flange | 4778330 | 2 | |
| 31 | Flange screw | 945444 | 4 | |
| 32 | Pipe | 4778042 | 1 | |
| 33 | O-ring | 944126 | 1 | |
| 34 | Suction pipe | 4778333 | 1 | |
| 35 | Screw | 4778436 | 2 | |
| 36 | Spacer | 4778332 | 1 | |
| 37 | Spacer | 4778331 | 1 | |
| 38 | Sealing ring | 470383 | 1 | SN-2120226439 |
| 39 | Pipe | 4778425 | 1 | |
| 3A | Spring washer | 942336 | 4 | |
| 40 | Hexagon screw | 966688 | 2 | For THD102KB |
| 41 | O-ring | 949657 | 1 | (925060) |
| 42 | Flange | 4778338 | 1 | |
| 43 | Flange screw | 965216 | 2 | |
| 44 | Ferrule | 956973 | 1 | |
| 45 | Fitting | 470377 | 1 | SN-2120226439 |
| 46 | Pipe | 4778340 | 1 | |
| 47 | Fitting | 466908 | 1 | |
| 48 | Attaching clamp | 1545432 | 1 | |
| 49 | Flange screw | 946440 | 1 | |
| 50 | Oil sump | 4778350 | 1 | |
| 51 | Gasket | 470745 | 1 | |
| 52 | Spring washer | 941907 | 30 | |
| 53 | Hexagon screw | 940186 | 28 | |
| 54 | Gasket | 18813 | 1 | |
| 55 | Magnetic plug | 949175 | 1 | |
| 56 | O-ring | 925064 | 1 | |
| 57 | Plug | 960638 | 1 | |
| 58 | Suction pipe | 4772188 | 1 | |
| 59 | Oil dipstick | 11031503 | 1 | |
| 60 | Bracket | 468653 | 1 | |
| 61 | Washer | 960141 | 2 | |
| 62 | Spring washer | 941907 | 2 | |
| 63 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 64 | Hexagon screw | 940100 | 2 | |
| 65 | Spring washer | 949607 | 2 | |
| 66 | Cover | 471752 | 1 | |
| 67 | O-ring | 949658 | 1 | (925061) early type |
| 68 | Reduction valve | 471707 | 1 | |
| 69 | Sealing ring | 469846 | 1 |
| Item | Part Name | Part No. |
| 28 | Plate 4778040 | 4778040 |
| Details | |
| Engine model | TD121G-87, TID121K-87 TWD1230ME |
| Application | Lubricating System, Tilted Oil Sump Lubrication System, 40° Inclination, Earlier Production |
