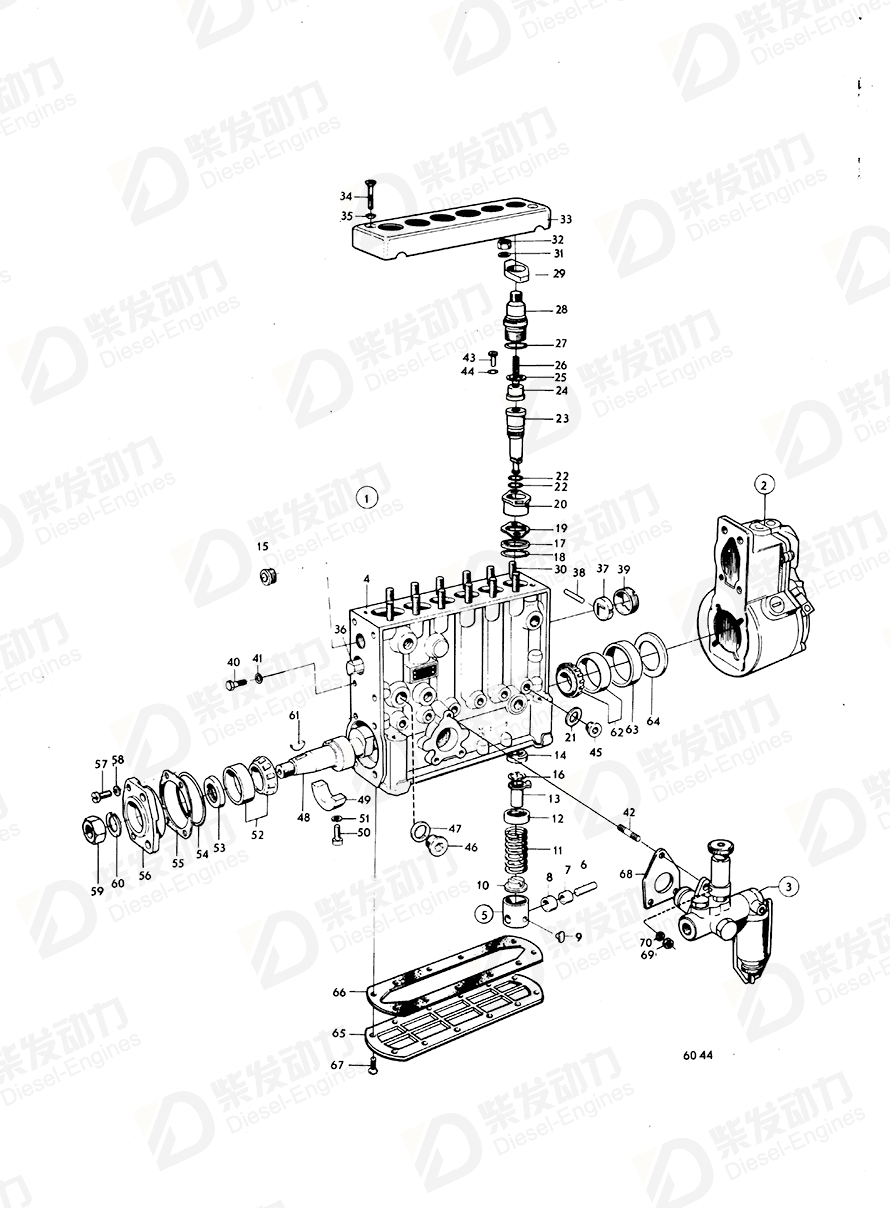

Plate 6212117
| No. | Part Name | Part Number | Qty | Description |
| 1 | Fuel pump | 845369 | 1 | |
| 2 | Governor | 844970 | 1 | |
| 3 | Feed pump | 244391 | 1 | Repl by 1699140 |
| 5 | Push rod | 244404 | 6 | |
| 6 | Bearing bolt | 240779 | 6 | |
| 7 | Bushing | 240780 | 6 | |
| 8 | Bearing | 846577 | 6 | |
| 10 | Spring disc | 244685 | 6 | (6211952) |
| 11 | Compression spring | 244402 | 6 | |
| 12 | Spring disc | 239984 | 6 | |
| 13 | Control sleeve | 240782 | 6 | |
| 14 | Cover | 239991 | 6 | |
| 15 | Plug | 844988 | 1 | |
| 16 | Lock ring | 239990 | 6 | |
| 17 | Washer | 241677 | 6 | |
| 18 | Gasket | 240002 | 6 | |
| 19 | Shim | 244381 | 1 | TH=1,50mm |
| 19 | Shim | 244382 | 1 | TH=1,60mm |
| 19 | Shim | 244383 | 1 | TH=1,70mm |
| 19 | Shim | 244384 | 1 | TH=1,80mm |
| 19 | Shim | 244385 | 1 | TH=1,90mm |
| 19 | Shim | 244386 | 1 | TH=2,00mm |
| 19 | Shim | 244633 | 1 | TH=1,2mm |
| 19 | Shim | 244634 | 1 | TH=1,3mm |
| 19 | Shim | 244635 | 1 | TH=1,4mm |
| 19 | Adjusting washer | 844990 | 1 | TH=0.40mm |
| 19 | Adjusting washer | 844991 | 1 | TH=0.50mm |
| 19 | Adjusting washer | 844992 | 1 | TH=0.70mm |
| 19 | Adjusting washer | 844993 | 1 | TH=0.80mm |
| 19 | Adjusting washer | 844994 | 1 | TH=1.00mm |
| 19 | Adjusting washer | 844995 | 1 | TH=1.10mm |
| 19 | Adjusting washer | 844996 | 1 | TH=1,30mm |
| 20 | Bushing | 244407 | 6 | |
| 21 | Gasket | 18836 | 6 | |
| 22 | O-ring | 240422 | 12 | |
| 23 | Pump element | 244401 | 6 | |
| 24 | Delivery valve | 240423 | 6 | |
| 25 | Sealing washer | 239993 | 6 | |
| 26 | Compression spring | 240969 | 6 | |
| 27 | O-ring | 240001 | 6 | |
| 28 | Retainer | 244636 | 6 | |
| 29 | Washer | 243743 | 12 | |
| 30 | Stud | 244380 | 12 | |
| 31 | Spring washer | 941908 | 12 | |
| 32 | Hexagon nut | 943927 | 12 | |
| 33 | Cover | 240011 | 1 | |
| 34 | Cross recessed screw | 956209 | 2 | |
| 35 | Lock washer | 18891 | 2 | |
| 36 | Control rod | 241706 | 1 | |
| 37 | Bushing | 240014 | 2 | |
| 38 | Spring pin | 244008 | 1 | (131015) |
| 39 | Bushing | 240015 | 1 | |
| 40 | Lock screw | 6642955 | 1 | |
| 41 | Gasket | 947620 | 1 | (233321) |
| 42 | Stud | 130673 | 3 | |
| 43 | Peg | 240971 | 6 | |
| 44 | Washer | 240972 | 1 | TH=0.2mm |
| 44 | Washer | 240973 | 1 | TH=0.5mm |
| 45 | Plug | 180707 | 1 | |
| 46 | Sealing plug | 243263 | 1 | |
| 47 | Gasket | 240017 | 1 | Spec.867473 alt |
| 48 | Camshaft | 845454 | 1 | |
| 49 | Bearing | 244406 | 1 | |
| 50 | Screw | 240427 | 2 | |
| 51 | Spring washer | 941906 | 2 | |
| 52 | Roller bearing | 240023 | 1 | |
| 53 | Sealing ring | 240022 | 1 | |
| 54 | O-ring | 243299 | 1 | |
| 55 | Shim | 240024 | 1 | TH=0.15mm |
| 55 | Shim | 240025 | 1 | TH=0.12mm |
| 55 | Shim | 240026 | 1 | TH=0.14mm |
| 55 | Shim | 240027 | 1 | TH=0.16mm |
| 55 | Shim | 240028 | 1 | TH=0.18mm |
| 55 | Shim | 240029 | 1 | TH=0.30mm |
| 55 | Shim | 240030 | 1 | TH=0.50mm |
| 56 | Bearing cover | 240021 | 1 | |
| 57 | Cross recessed screw | 956094 | 4 | |
| 58 | Spring washer | 941906 | 4 | |
| 59 | Hexagon nut | 955806 | 1 | |
| 60 | Spring washer | 955927 | 1 | |
| 61 | Key | 35168 | 1 | |
| 62 | Roller bearing | 240023 | 1 | |
| 63 | Ring | 240032 | 1 | |
| 64 | Shim | 240033 | 1 | TH=1.2mm |
| 64 | Shim | 240034 | 1 | TH=1.5mm |
| 64 | Shim | 240035 | 1 | TH=1.8mm |
| 64 | Shim | 240036 | 1 | TH=2.0mm |
| 65 | Cover | 240947 | 1 | |
| 66 | Gasket | 240948 | 1 | |
| 67 | Cross recessed screw | 956205 | 12 | |
| 68 | Plate | 6212117 | 1 | |
| 69 | Hexagon nut | 940197 | 3 | |
| 70 | Spring washer | 941906 | 3 |
| Item | Part Name | Part No. |
| 68 | Plate 6212117 | 6212117 |
| Details | |
| Application | Fuel Injection Pump FUEL INJECTION PUMP: 845369 FUEL INJECTION PUMP: 845928 |
