Plug 16324

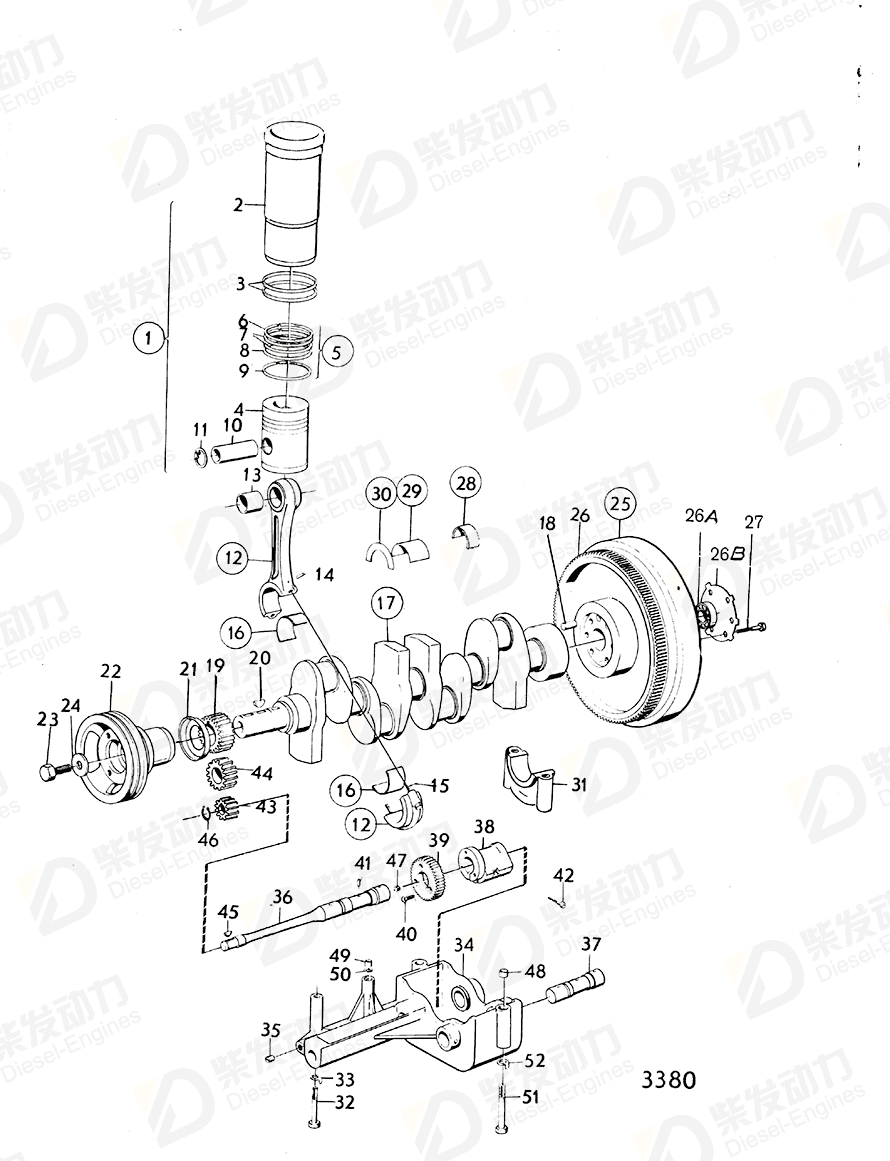

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 754563 | 4 | REPLACED BY 6630394., MO-XXXXX/29765 |
| 1 | Cylinder liner kit | 6630394 | 4 | D42A PP SPEC. 16053, 867638. |
| 1 | Cylinder liner kit | 6630395 | 4 | MOXXXXX/29766- |
| 3 | Seal | 4804215 | 8 | (785948) |
| 5 | Piston ring kit | 6630017 | 4 | |
| 10 | Gudgeon pin | 785947 | 4 | |
| 10 | Gudgeon pin | 787224 | 4 | D42A PP SPEC. 16053, 867638. |
| 11 | Retaining ring | 914523 | 8 | |
| 11 | Retaining ring | 914524 | 8 | D42A PP SPEC. 16053, 867638 |
| 12 | Connecting rod | 787170 | 4 | (787291) |
| 12 | Connecting rod | 4804450 | 4 | D42A PP SPEC. 16053, 867638., (787450 |
| 13 | Bushing | 785949 | 4 | |
| 13 | Bushing | 787227 | 4 | D42A PP SPEC. 16053, 867638. |
| 14 | Pin | 131205 | 8 | |
| 15 | Connecting rod bolt | 420126 | 8 | |
| 16 | Big-end bearing kit | 270093 | 4 | STD D |
| 16 | Big-end bearing kit | 270094 | 4 | 0.25 MM U.S |
| 16 | Big-end bearing kit | 270095 | 4 | 0.50 MM U.S |
| 16 | Big end bearing kit | 270096 | 4 | 0.75 MM U.S |
| 16 | Big-end bearing kit | 270097 | 4 | 1.00 MM U.S |
| 16 | Big end bearing kit | 270098 | 4 | 1.25 MM U.S |
| 17 | Crankshaft | 787445 | 1 | D42A PP SPEC. 16053, 867638 |
| 18 | Pin | 950677 | 1 | |
| 19 | Gear | 787299 | 1 | |
| 20 | Key | 910127 | 3 | |
| 21 | Ring | 785540 | 1 | |
| 22 | Pulley | 785783 | 1 | STD |
| 22 | Pulley | 785785 | 1 | FOR ENGINE WITH WATER PUMP 787187 |
| 22 | Pulley | 787614 | 1 | D42A PP SPEC. 16053, 867638 |
| 23 | Screw | 787163 | 1 | |
| 24 | Washer | 785542 | 1 | |
| 25 | Flywheel | 830515 | 1 | |
| 25 | Flywheel | 830627 | 1 | FOR ENGINE WITH CLUTCH 342973 |
| 26 | Gear ring | 785520 | 1 | |
| 27 | Hex. socket screw | 947527 | 6 | |
| 27 | Screw | 955726 | 6 | FOR ENGINE WITH CLUTCH 342973 |
| 28 | Main bearing kit | 270432 | 4 | STD D |
| 28 | Main bearing kit | 270433 | 4 | 0.25 MM U.S |
| 28 | Main bearing kit | 270434 | 4 | 0.50 MM U.S |
| 28 | Main bearing kit | 270435 | 4 | 0.75 MM U.S |
| 28 | Main bearing kit | 270436 | 4 | 1.00 MM U.S |
| 28 | Main bearing kit | 270437 | 4 | 1.25 MM U.S |
| 29 | Main bearing kit | 754589 | 1 | STD D |
| 29 | Main bearing kit | 754590 | 1 | 0.25 MM U.S |
| 29 | Main bearing kit | 754591 | 1 | 0.50 MM U.S |
| 29 | Main bearing kit | 754592 | 1 | 0.75 MM U.S |
| 29 | Main bearing kit | 754593 | 1 | 1.00 MM U.S |
| 29 | Main bearing kit | 754594 | 1 | 1.25 MM U.S |
| 30 | Thrust washer kit | 276754 | 1 | STD D |
| 30 | Thrust washer kit | 276755 | 1 | 0.1 MM O.S |
| 30 | Thrust washer kit | 276756 | 1 | 0.2 MM O.S |
| 30 | Thrust washer kit | 276757 | 1 | 0.3 MM O.S |
| 32 | Hexagon screw | 955556 | 1 | MO-3130302/215732., L=89mm |
| 33 | Lock washer | 921221 | 1 | |
| 34 | Bracket | 4804465 | 1 | (785432) |
| 35 | Plug | 16324 | 1 | |
| 36 | Shaft | 785439 | 1 | |
| 37 | Shaft | 785440 | 1 | |
| 38 | Counterweight | 785943 | 2 | |
| 38 | Counterweight | 787448 | 2 | D42A PP SPEC. 16053, 867638 |
| 39 | Gear | 785459 | 2 | |
| 40 | Cross recessed sunk | 950145 | 6 | L=16mm |
| 40 | Hex. socket screw | 956553 | 2 | D42A PP SPEC. 16053, 867638., L = 16 MM |
| 40 | Screw | 956556 | 4 | D42A PP SPEC. 16053, 867638., L = 25 MM |
| 41 | Spring pin | 951950 | 2 | |
| 42 | Screw | 926312 | 2 | |
| 42 | Hex. socket screw | 956588 | 2 | D42A PP SPEC. 16053, 867638. |
| 43 | Gear, GEAR | 785435 | 1 | |
| 43 | Drive, GEAR | 787298 | 1 | |
| 44 | Idler gear, IDLER GEAR | 785513 | 1 | |
| 44 | Idler gear | 787297 | 1 | |
| 45 | Woodruff key | 910115 | 1 | |
| 46 | Retaining ring | 914454 | 1 | |
| 47 | Plug | 16324 | 2 | |
| 48 | Sleeve | 785649 | 1 | |
| 49 | Tube | 785438 | 1 | |
| 50 | O-ring | 926032 | 1 | |
| 51 | Screw | 191812 | 2 | |
| 52 | Lock washer | 921231 | 2 | |
| 26A | Ball bearing | 181335 | 1 | |
| 26B | Lock washer | 466050 | 1 |
| Item | Part Name | Part No. |
| 35 | Plug 16324 | 16324 |
| Details | |
| Engine model | D42A TD45B |
| Application | CRANKSHAFT AND RELATED PARTS Crankshaft and Related Parts: A Crankshaft and Related Parts: B |
Related Products
Tags: Plug, Volvo Penta, 16324
