Plug 16325

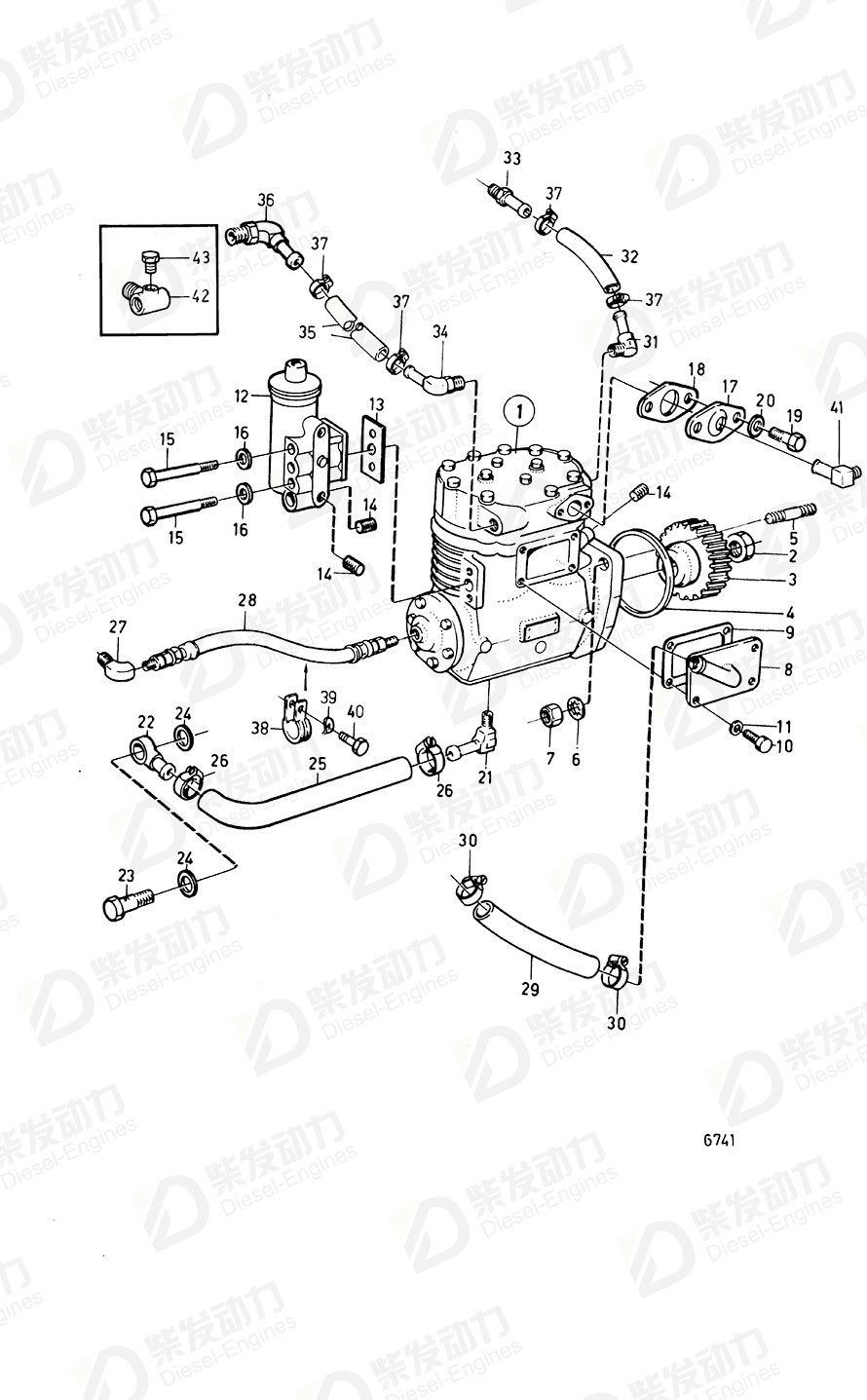

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1570594 | 1 | Repl by 1590264 |
| 1 | Compressor | 1590264 | 1 | |
| 2 | Nut | 1518355 | 1 | |
| 3 | Gear | 423087 | 1 | |
| 4 | Gasket | 413619 | 1 | |
| 5 | Stud | 953346 | 3 | |
| 6 | Spring washer | 941911 | 3 | |
| 7 | Hexagon nut | 955828 | 3 | |
| 8 | Air inlet, air intake | 1593444 | 1 | (1573398) |
| 9 | Gasket, gasket | 1190349 | 1 | (1573174) |
| 10 | Hexagon screw | 955269 | 4 | For 1570594 |
| 11 | Spring washer | 941906 | 4 | |
| 12 | Governor | 1503492 | 1 | |
| 13 | Gasket | 324042 | 1 | |
| 14 | Plug | 16325 | 5 | |
| 15 | Hexagon screw | 955304 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Flange | 330634 | 1 | |
| 18 | Gasket | 324359 | 1 | |
| 19 | Hexagon screw | 955297 | 2 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Elbow nipple | 942240 | 1 | |
| 22 | Banjo nipple | 824463 | 1 | MO-28308. |
| 23 | Hollow screw | 836832 | 1 | MO-28308. |
| 24 | Gasket | 18818 | 2 | |
| 25 | Hose | 941522 | 1 | (13799) L=45mm |
| 26 | Hose clamp | 943474 | 2 | |
| 27 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 28 | Hose assembly | 1507501 | 1 | |
| 29 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 30 | Hose clamp | 943472 | 2 | |
| 31 | Hose nipple | 961603 | 1 | |
| 32 | Hose | 941522 | 1 | (13799) L=45mm |
| 33 | Hose nipple | 961654 | 1 | |
| 34 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 35 | Hose | 941522 | 1 | (13799) L=45mm |
| 36 | Elbow nipple | 942240 | 1 | |
| 37 | Hose clamp | 943472 | 4 | |
| 38 | Clamp | 941565 | 1 | |
| 39 | Spring washer | 942336 | 1 | |
| 40 | Hexagon screw | 940133 | 1 | |
| 41 | T-nipple | 192531 | 1 | |
| 42 | T-nipple | 834391 | 1 | Spec.867490 |
| 43 | Plug | 180759 | 2 |
| Item | Part Name | Part No. |
| 14 | Plug 16325 | 16325 |
| Details | |
| Engine model | D100A D100B D100B, TD100A D100BHC D100BRC D120A D120A, TD120A D70B D70CHC, D70CRC, TD70CHC, TD70CRC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD120A TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120BHC TD120BRC TD120C TD120G, TD120GG TD121CHC TD121CRC TD60A TD60B TD60D TD60D-83 TD70B TD70G TD70G-83 TID60D TID70G |
| Application | Air Compressor 15.5W31 and Installation Components Air Compressor 15.5W31 and Installation Components Alt Air Compressor and Installation Components Air Compressor and Installation Components: A Air Compressor and Installation Components: B Air Compressor and Installation Components: C AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: B AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: B Air Filter and Installation Components Air Filter and Installation Components, Earlier Prod Air Filter and Installation Components, Later Production Air Filter and Installation Components: B Conn.box and Installation Comp., Classed Engine, Spec 867108, 86 Connecting Box and Installation Components Connecting Box and Installation Components, Classed Engine Connecting Pipe and Starting Element with Installation Comp. Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D Starting Element and Installation Components Turbo and Installation Components, Classed Engine |
| Specification | |
| Descriptions | D70B early production.D70B classed engine,spec.867053. D70B.D70B classed engine spec.867117. Early type When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685- |
