Plug 191025

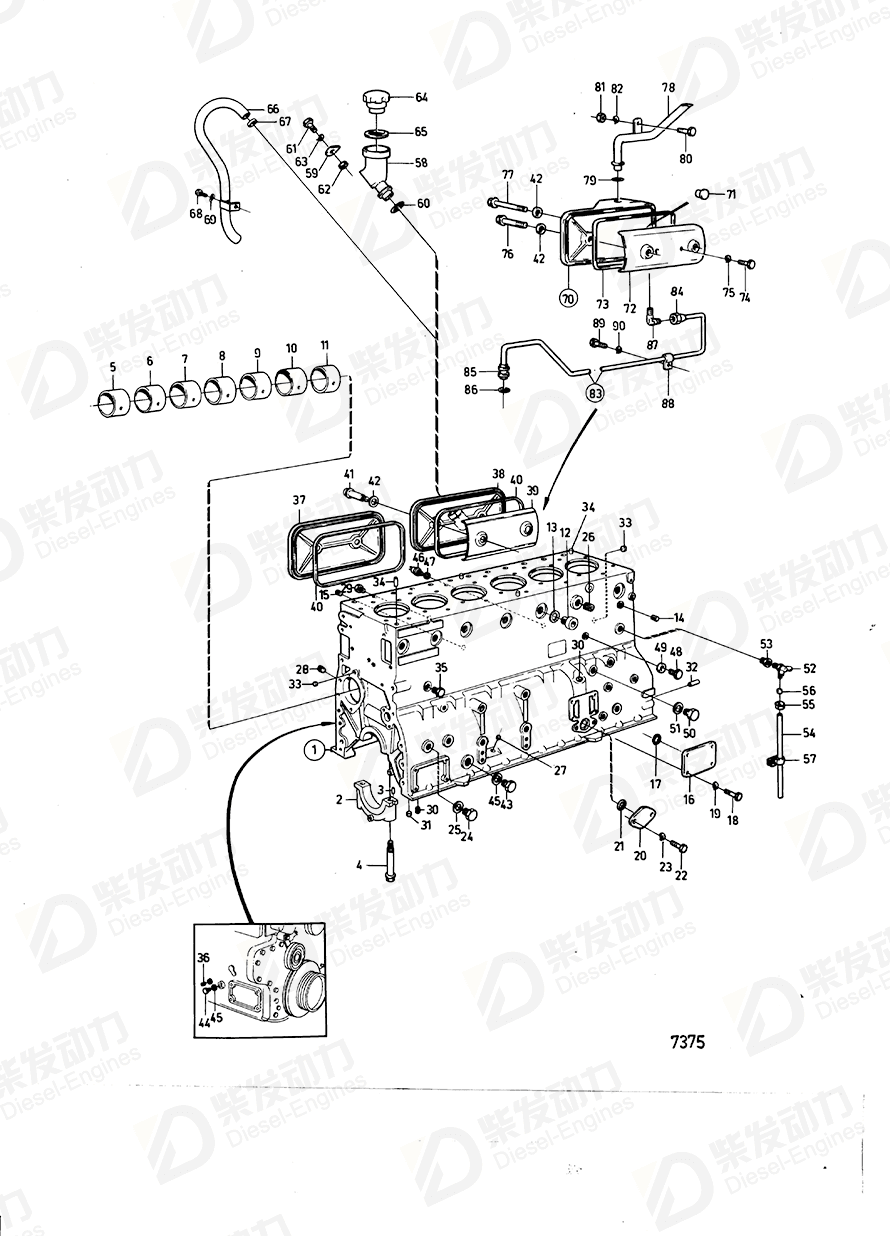

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 466830 | 1 | Spare part design, MO47151/XXXXX- |
| 3 | Pin | 422426 | 1 | |
| 4 | Screw | 421153 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 6 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 942734 | 1 | |
| 15 | Plug | 422369 | 7 | |
| 16 | Cap | 837510 | 1 | |
| 17 | O-ring | 955994 | 2 | |
| 18 | Hexagon screw | 955534 | 4 | |
| 19 | Spring washer | 942336 | 4 | |
| 20 | Cover | 1542267 | 1 | |
| 21 | O-ring | 949659 | 1 | |
| 22 | Hexagon screw | 955512 | 2 | |
| 23 | Spring washer | 941906 | 2 | |
| 24 | Plug | 192114 | 3 | |
| 25 | Gasket, plug | 18677 | 3 | |
| 26 | Plug | 952077 | 1 | |
| 27 | Cap plug | 955082 | 2 | |
| 28 | Plug | 942734 | 1 | |
| 29 | Plug | 192154 | 1 | MO 21083/XXXXX- |
| 30 | Plug | 952075 | 2 | |
| 31 | Plug | 955079 | 1 | |
| 32 | Pin | 191171 | 2 | |
| 33 | Cap plug | 955082 | 4 | |
| 34 | Pin | 949020 | 4 | |
| 35 | Plug | 192154 | 1 | MO 21083/XXXXX- |
| 36 | Plug | 942734 | 1 | |
| 37 | Inspection cover | 420120 | 1 | |
| 38 | Inspection cover | 420121 | 1 | |
| 39 | Splash plate | 421120 | 1 | |
| 40 | Gasket | 421121 | 2 | |
| 41 | Shoulder screw | 422541 | 4 | |
| 42 | Sealing ring | 469846 | 4 | |
| 43 | Plug | 192114 | 1 | |
| 44 | Plug | 941959 | 1 | |
| 45 | Gasket | 18818 | 2 | |
| 46 | Plug | 16318 | 2 | |
| 47 | Gasket | 907132 | 2 | |
| 48 | Plug | 191025 | 1 | |
| 49 | Gasket | 957178 | 1 | |
| 50 | Plug | 192114 | 1 | |
| 51 | Gasket | 957185 | 1 | |
| 52 | Drain cock | 820436 | 1 | |
| 53 | Reduction nipple | 190130 | 1 | |
| 54 | Drain tube | 821889 | 1 | |
| 55 | Fitting nut | 954357 | 1 | |
| 56 | Fitting | 954365 | 1 | |
| 57 | Clamp | 942400 | 1 | |
| 58 | Oil filler pipe | 821792 | 1 | |
| 59 | Retainer | 820964 | 1 | |
| 60 | O-ring | 925057 | 1 | |
| 61 | Hexagon screw | 955282 | 1 | |
| 62 | Lock nut | 963105 | 1 | |
| 63 | Washer | 955893 | 1 | |
| 64 | Breather cap | 407173 | 1 | |
| 65 | Gasket | 940096 | 1 | |
| 66 | Tube | 421155 | 1 | D70B, TD70B MO41075/XXXXX-. TD70G |
| 67 | Sealing ring | 421158 | 1 | |
| 68 | Hexagon screw | 955523 | 1 | |
| 69 | Spring washer | 941907 | 1 | |
| 70 | Crankcase ventilatio | 824351 | 1 | D70BK spec. 867117 |
| 71 | Expansion plug | 192211 | 1 | |
| 72 | Splash plate | 824382 | 1 | D70BK spec. 867117 |
| 73 | Gasket | 824381 | 1 | D70BK spec. 867117. |
| 74 | Hexagon screw | 955523 | 2 | |
| 75 | Spring washer | 941907 | 2 | |
| 76 | Shoulder screw | 422541 | 1 | |
| 77 | Screw | 823742 | 1 | |
| 78 | Breather pipe | 837398 | 1 | D70BK spec. 867117 |
| 79 | Sealing ring | 421158 | 1 | |
| 80 | Hexagon screw | 955523 | 1 | |
| 81 | Hexagon nut | 955826 | 1 | |
| 82 | Spring washer | 941907 | 1 | |
| 83 | Oil pipe | 824481 | 1 | D70BK spec. 867117 |
| 84 | Fitting nut | 954321 | 1 | D70BK spec. 867117 |
| 86 | O-ring | 955983 | 1 | D70BK spec. 867117. |
| 87 | Elbow nipple | 954342 | 1 | |
| 88 | Attaching clamp | 18301 | 1 | |
| 89 | Hexagon screw | 955523 | 1 | |
| 90 | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 48 | Plug 191025 | 191025 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D70B D70CHC D70CRC TD100AHC TD100ARC TD60A TD60B TD60D TD60D-83 TD70G-83 TID60D TID60DG TID70G |
| Application | Cylinder Block and Related Parts Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D |
| Specification | |
| Descriptions | SPEC. 9881, 9890. 9919, 9958, 9960 |
Related Products
Tags: Plug, Volvo Penta, 191025
