Plug 191026

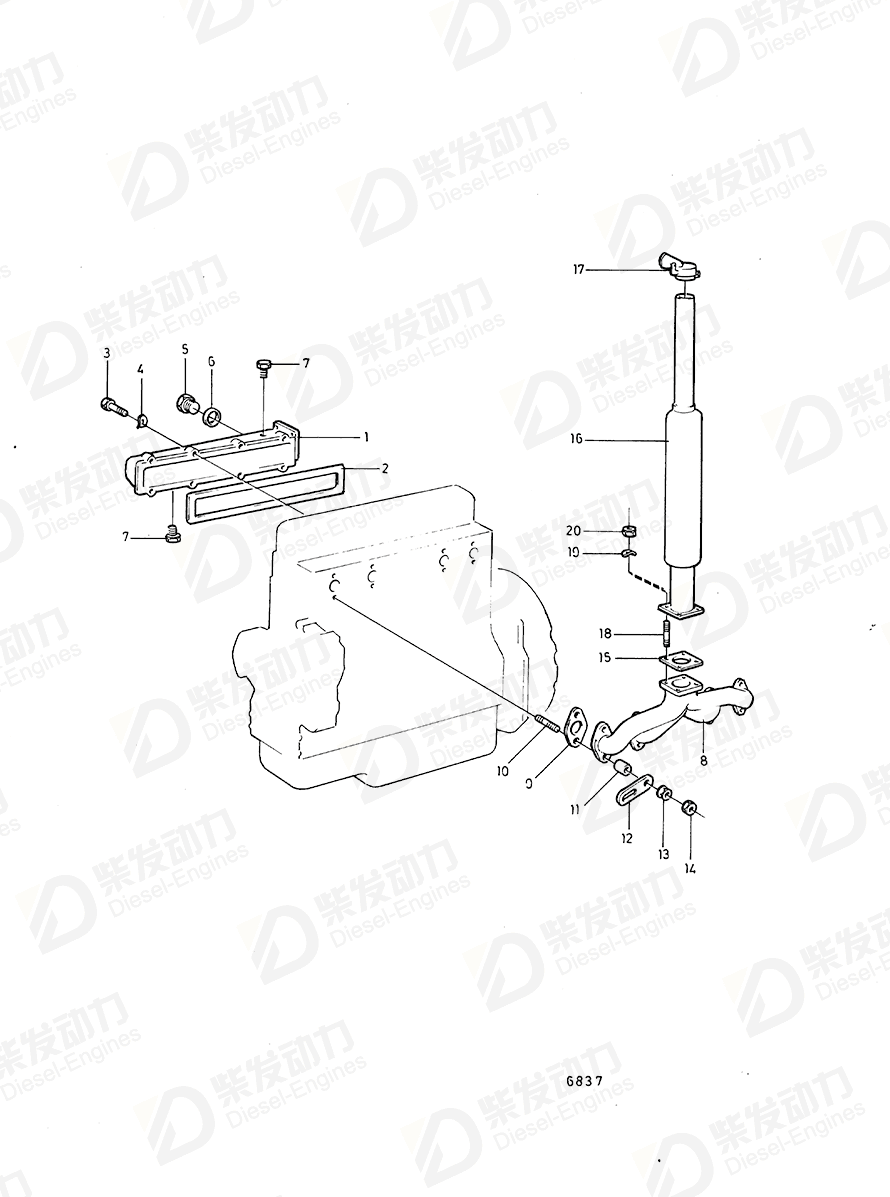

| No. | Part Name | Part Number | Qty | Description |
| 1 | Tube | 787951 | 1 | |
| 2 | Gasket | 11030035 | 1 | |
| 3 | Hexagon screw | 940161 | 8 | For engine with 40° angle of inclination, L=45mm |
| 4 | Spring washer | 941907 | 8 | |
| 5 | Plug | 192114 | 1 | |
| 6 | Gasket | 957185 | 1 | |
| 7 | Plug | 191026 | 2 | |
| 8 | Exhaust pipe | 4804308 | 1 | |
| 9 | Gasket | 4804249 | 4 | |
| 10 | Stud | 953492 | 8 | L=60mm |
| 11 | Spacer sleeve | 422217 | 8 | |
| 12 | Attaching lug | 845682 | 1 | |
| 13 | Flange nut | 942299 | 8 | |
| 14 | Hexagon nut | 955835 | 8 | |
| 15 | Gasket | 4804247 | 1 | (740655) |
| 16 | Spark arrester | 787730 | 1 | (748226) |
| 17 | Rain cap | 786851 | 1 | (739578) |
| 18 | Stud | 953257 | 4 | L = 35 MM |
| 19 | Spring washer | 942336 | 4 | |
| 20 | Hexagon nut | 955827 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| Item | Part Name | Part No. |
| 7 | Plug 191026 | 191026 |
| Details | |
| Engine model | D42A D70B D70CHC, D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG-87 TD100HP-87 TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TD30A TD31ACE TD40A TD45B TD60A TD60B TD60D TD60D-83 TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD70CHC, TD70CRC TD70G TD70G-83 TD71A, TD71AW TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TID100K TID121FG TID60D, TID60DG TID61AG TID70G TID71A, TID71AG, TID71AP TWD1030ME |
| Application | Air Compressor Air Compressor &TUFLO 500 and Installation Components Air Compressor 15, 5W5 and Installation Components: A Air Compressor 15, 5W5 and Installation Components: B Air Compressor 15, 5W5 and Installation Components: C Air Compressor 15, 5W5 and Installation Components: TID100K87 Air Compressor 15.5 W 5 and Installation Components Air Compressor 15.5W5 and Installation Components Air Compressor TUFLO 500 Air Compressor TUFLO 700 and Installation Components Air Compressor, Components Air Compressor, TUFLO 500 and Installation Components Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Air Compressor: 1590264 Air Compressor: 1599919 Air Compressor: 1611815 Air Compressor: 1612335 Air Compressor: 351453 Cylinder Block and Flywheel Housing Cylinder Block and Related Parts Cylinder Block: 422960 Cylinder Block: 479650 Induction and Exhaust Manifold with Installation Components Induction and Exhaust Manifold with Installation Components: A Induction and Exhaust Manifold with Installation Components: B Induction and Exhaust Manifold with Installation Components: C Induction and Exhaust Manifold with Installation Components: D Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B Induction and Exhaust Pipe: A Induction and Exhaust Pipe: B Induction Manifold and Installation Components Induction- and Exhaust Manifold Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B Induction- and Exhaust Manifold: C Induction- and Exhaust Manifold: TD100HPB87 INDUCTION-AND EXHAUST MANIFOLD Induction-and Exhaust Manifold, Classed Engine Induction-and Exhaust Manifold: A Induction-and Exhaust Manifold: B INDUCTION-AND EXHAUST MANIFOLD: TID121FP Inlet and Exhaust Manifold Inlet Manifold and Aftercooler Inlet Manifold and Installation Components Inlet-,Exhaust Manifold and Turbocharger |
| Specification | |
| Descriptions | (352970) Early type Late type Plug for oil pressure point. Plug for oil pressure point., Alt. |
