Plug 20479599

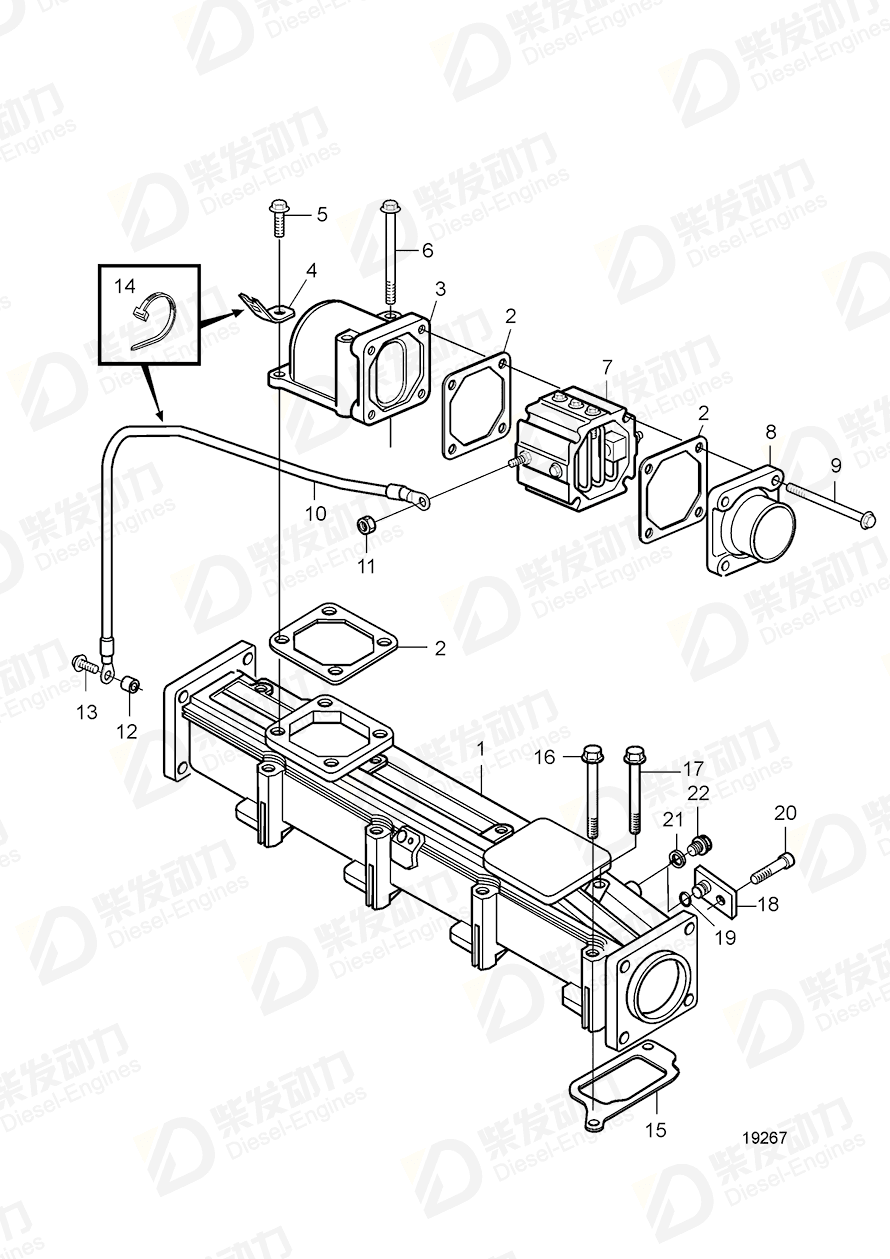

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air pipe | 20459225 | 1 | |
| 1 | Charge air pipe | 21073715 | 1 | SN01099284-10648002 |
| 1 | Charge air pipe | 21239900 | 1 | SN00850799-01099283 |
| 2 | Gasket | 20499767 | 3 | |
| 2 | Gasket | 20531832 | 3 | |
| 3 | Elbow | 20459938 | 1 | |
| 3 | Elbow | 20512169 | 1 | |
| 4 | Bracket | 20450997 | 1 | |
| 5 | Hexagon screw | 970947 | 1 | M10X25 |
| 6 | Flange screw | 20460124 | 2 | |
| 7 | Air pre-heater | 20511112 | 1 | 12V |
| 7 | Heater, 12V | 20532254 | 1 | |
| 8 | Hose nipple | 20502568 | 1 | |
| 8 | Hose nipple | 20555488 | 1 | |
| 9 | Flange screw | 20460123 | 4 | SN01099384- |
| 9 | Screw | 20502324 | 4 | SN-01099383 |
| 10 | Cable | 20459932 | 1 | |
| 12 | Bushing | 20459936 | 1 | |
| 14 | Cable tie | 948211 | 1 | |
| 15 | Gasket | 20496556 | 4 | |
| 15 | Gasket | 20555515 | 4 | |
| 16 | Flange screw | 20459830 | 4 | |
| 17 | Flange screw | 20412601 | 4 | |
| 18 | Plug | 20459910 | 1 | |
| 19 | Sealing ring | 20459909 | 1 | |
| 20 | Hex. socket screw | 20450694 | 1 | |
| 21 | Gasket | 969011 | 1 | |
| 22 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 22 | Plug | 20479599 | 1 |
| Item | Part Name | Part No. |
| 22 | Plug 20479599 | 20479599 |
| Details | |
| Engine model | TAD420VE TD420VE |
| Application | Induction Manifold, Low Mounted Turbocharger Inlet Manifold Inlet Manifold. High Mounted Turbo. Exhaust Outlet Front |
| Specification | |
| Descriptions | Replaced by 960630 |
