Plug 20533484

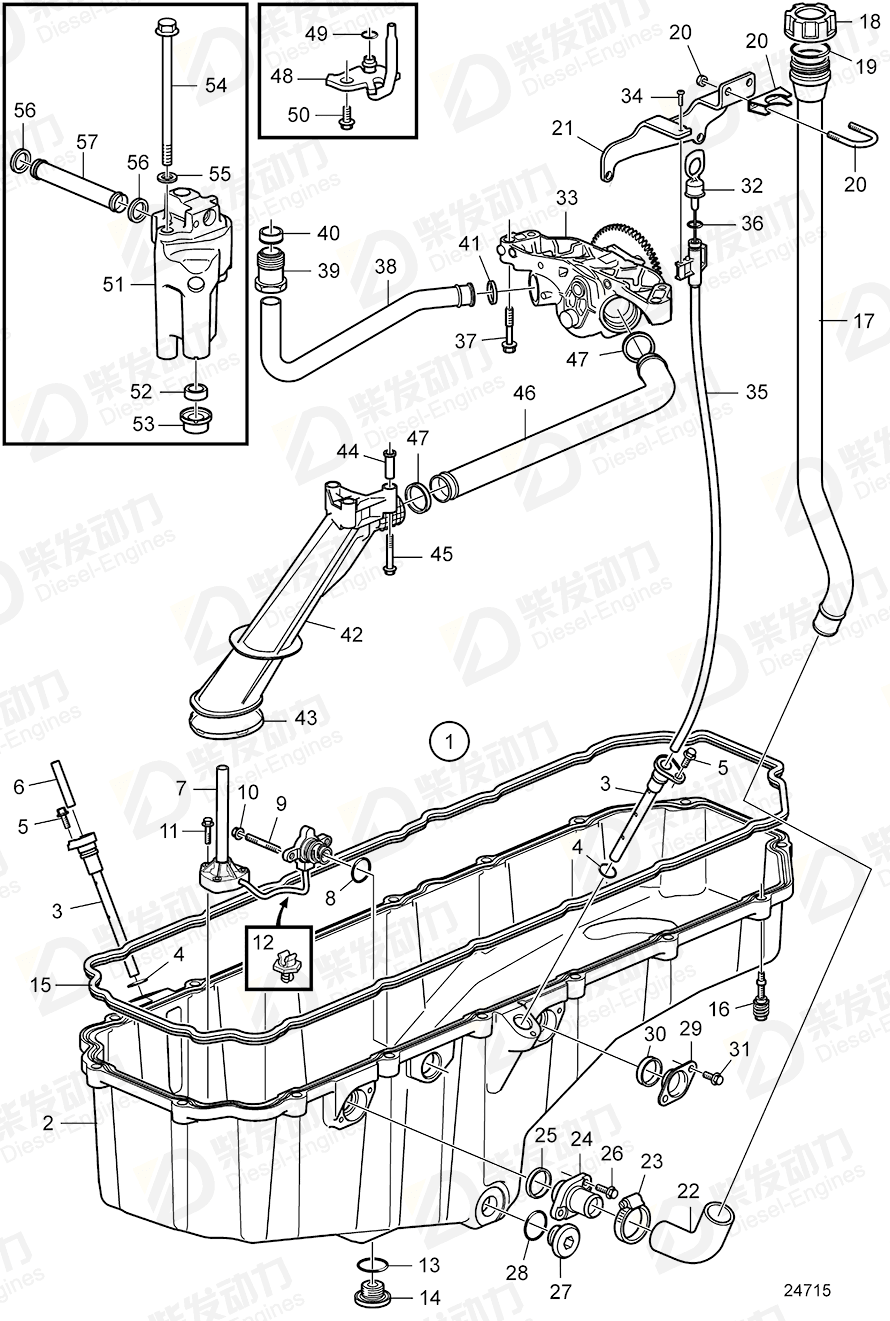

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pan | 15032828 | 1 | Replaced by 17443046 |
| 1 | Oil pan | 17443046 | 1 | |
| 3 | Pipe | 20724256 | 2 | |
| 3 | Pipe | 21523327 | 1 | |
| 4 | O-ring | 949656 | 1 | |
| 5 | Flange screw | 984734 | 2 | |
| 6 | Plug | 20533484 | 1 | |
| 7 | Oil level sensor | 21042447 | 1 | |
| 8 | O-ring | 944126 | 1 | |
| 9 | Stud | 953035 | 2 | |
| 10 | Flange lock nut | 990949 | 2 | |
| 11 | Flange screw | 984728 | 3 | |
| 12 | Retainer | 20700754 | 2 | |
| 13 | Sealing ring | 20579690 | 1 | |
| 14 | Magnetic plug | 20571854 | 1 | |
| 15 | Sealing strip | 20734156 | 1 | |
| 16 | Flange screw | 21035968 | 16 | Replaced by 22859764 |
| 16 | Flange screw | 22859764 | 16 | |
| 17 | Oil filler pipe | 11447070 | 1 | |
| 18 | Oil filler cap | 20807510 | 1 | |
| 19 | Rubber washer | 20365079 | 1 | |
| 20 | Clamp | 968129 | 1 | |
| 21 | Bracket | 11158106 | 1 | |
| 22 | Hose | 11158239 | 1 | |
| 23 | Clamp | 949746 | 1 | |
| 24 | Connection pipe | 20462497 | 1 | |
| 25 | Sealing ring | 20555696 | 1 | (421629) |
| 26 | Flange screw | 984735 | 2 | |
| 27 | Magnetic plug | 11127354 | 1 | |
| 28 | O-ring | 948610 | 1 | |
| 29 | Adapter | 11128027 | 1 | |
| 30 | Sealing ring | 20555696 | 1 | (421629) |
| 30 | Sealing ring | 21780376 | 1 | |
| 31 | Flange screw | 984733 | 2 | |
| 32 | Oil dipstick | 23082417 | 1 | SN2016107257- |
| 32 | Oil dipstick | 40005190 | 1 | SN-2016107256 |
| 33 | Oil pump | 20553753 | 1 | |
| 33 | Oil pump | 21708142 | 1 | |
| 34 | Six point socket scr | 975371 | 1 | |
| 35 | Pipe | 11158388 | 1 | |
| 36 | O-ring | 944124 | 1 | |
| 37 | Screw | 1547887 | 4 | |
| 38 | Pressure pipe | 20708889 | 1 | |
| 40 | Ferrule | 980790 | 1 | |
| 41 | Sealing ring | 1543578 | 1 | |
| 42 | Oil strainer | 20547257 | 1 | |
| 43 | Strainer | 8131965 | 1 | |
| 44 | Spacer sleeve | 20547263 | 1 | |
| 45 | Screw | 1547887 | 3 | |
| 46 | Suction pipe | 20553751 | 1 | |
| 47 | Sealing ring | 20555696 | 2 | (421629) |
| 47 | Sealing ring | 21780376 | 1 | |
| 48 | Piston cooling jet | 20521450 | 6 | |
| 49 | O-ring | 976012 | 6 | |
| 50 | Flange screw | 966378 | 6 | |
| 51 | Control valve | 20574700 | 1 | Replaced by 21452473 |
| 51 | Control valve | 21452473 | 1 | Replaced by 21596642 |
| 51 | Control valve | 21596642 | 1 | |
| 52 | Sealing ring | 20526428 | 1 | |
| 53 | Spacer sleeve | 20775471 | 1 | |
| 54 | Flange screw | 969225 | 2 | L=120mm |
| 55 | Washer | 192288 | 2 | |
| 56 | Sealing ring | 1677370 | 2 | |
| 57 | Outlet pipe | 20571452 | 1 |
| Item | Part Name | Part No. |
| 6 | Plug 20533484 | 20533484 |
| Details | |
| Engine model | TAD1250VE, TAD1251VE, TAD1252VE TAD1643VE-B TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Aluminium Oil Sump Lubricating Oil System with Aluminum Sump Lubricating System |
