Plug 20562028

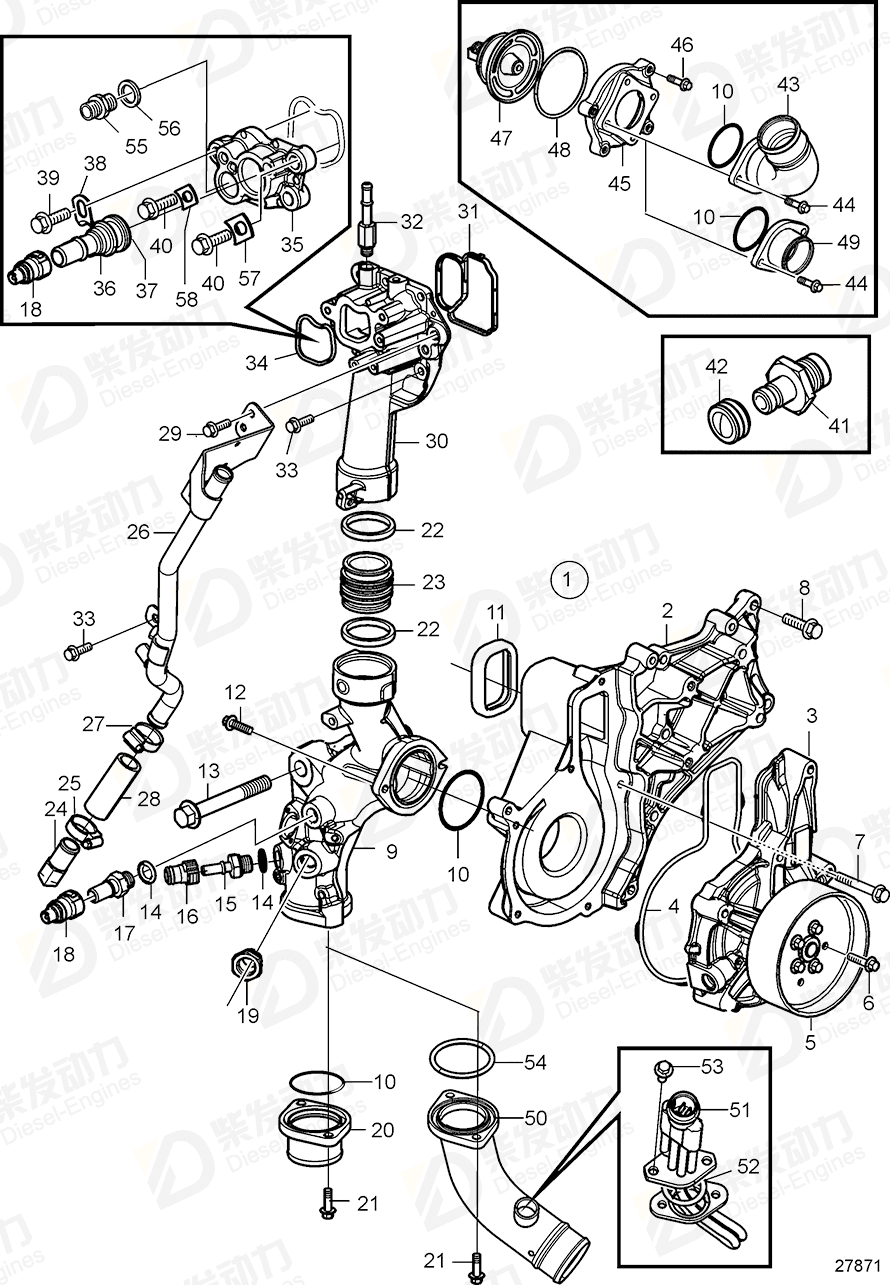

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump, exch | 3801589 | 1 | |
| 2 | Coolant pump, rear | 22195476 | 1 | |
| 3 | Coolant pump | 3801418 | 1 | |
| 3 | Pump unit | 22195450 | 1 | |
| 4 | Rubber moulding | 21103569 | 1 | |
| 5 | Pulley | 21585372 | 1 | |
| 6 | Flange screw | 984732 | 5 | |
| 7 | Flange screw | 984740 | 6 | |
| 8 | Flange screw | 969445 | 6 | |
| 9 | Coolant pipe | 22057105 | 1 | Replaced by 22434531 and 60111199 and975696 |
| 9 | Coolant pipe | 22434531 | 1 | |
| 10 | O-ring | 975675 | 4 | |
| 10 | O-ring | 975696 | 1 | For 22434531 |
| 11 | Rubber moulding | 20430678 | 1 | |
| 12 | Flange screw | 984736 | 2 | |
| 13 | Flange screw | 984870 | 1 | |
| 14 | Sealing ring | 21024032 | 2 | |
| 14 | Gasket | 60111199 | 2 | For 22434531 |
| 15 | Connector | 21226695 | 1 | |
| 16 | Quick connecting kit | 21280355 | 1 | |
| 17 | Nipple | 20938688 | 1 | |
| 18 | Quick connecting kit | 21233086 | 2 | |
| 19 | Socket | 21349444 | 1 | |
| 20 | Coolant pipe | 21843564 | 1 | |
| 21 | Flange screw | 984735 | 2 | |
| 22 | Sealing ring | 1547254 | 2 | |
| 23 | Connection pipe | 21021925 | 1 | |
| 24 | Connector | 21177259 | 1 | |
| 25 | Hose clamp | 21078879 | 1 | |
| 26 | Pipe | 22202995 | 1 | |
| 27 | Hose clamp | 961667 | 1 | |
| 28 | Rubber hose | 969033 | 1 | L=75mm |
| 29 | Flange screw | 984734 | 2 | |
| 30 | Connection pipe | 21767299 | 1 | |
| 31 | Sealing strip | 21298915 | 1 | |
| 32 | Hose nipple | 21974463 | 2 | |
| 33 | Flange screw | 984734 | 6 | |
| 34 | Sealing strip | 21767320 | 1 | |
| 35 | Connection pipe | 21767327 | 1 | |
| 36 | Connector | 21243777 | 1 | |
| 37 | Sealing ring | 1547252 | 1 | |
| 38 | Lock brace | 20562032 | 1 | |
| 39 | Flange screw | 984736 | 3 | |
| 40 | Flange screw | 984733 | 2 | |
| 41 | Nipple | 1676622 | 1 | |
| 42 | Protecting cap | 476279 | 1 | |
| 43 | Tube | 21593611 | 1 | |
| 44 | Flange screw | 984735 | 2 | |
| 45 | Cover | 21464940 | 1 | |
| 46 | Flange screw | 984736 | 4 | |
| 47 | Thermostat | 21412639 | 1 | 82°C |
| 48 | Sealing ring | 21503575 | 1 | |
| 49 | Coolant pipe | 21843564 | 1 | |
| 50 | Pipe | 21649406 | 1 | For engines without engine heater. |
| 50 | Pipe | 21869272 | 1 | For engines with engine heater. |
| 51 | Engine heater | 21119958 | 1 | |
| 52 | O-ring | 975664 | 1 | |
| 53 | Flange screw | 984735 | 2 | |
| 54 | O-ring | 975696 | 1 | For 22434531 |
| 55 | Plug | 20562028 | 1 | |
| 56 | Sealing ring | 21532261 | 1 | |
| 57 | Quick connecting kit | 20941211 | 1 | |
| 58 | Lock brace | 1546531 | 1 |
| Item | Part Name | Part No. |
| 55 | Plug 20562028 | 20562028 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Cooling Water Pump and Thermostat Housing |
