Plug 20565546

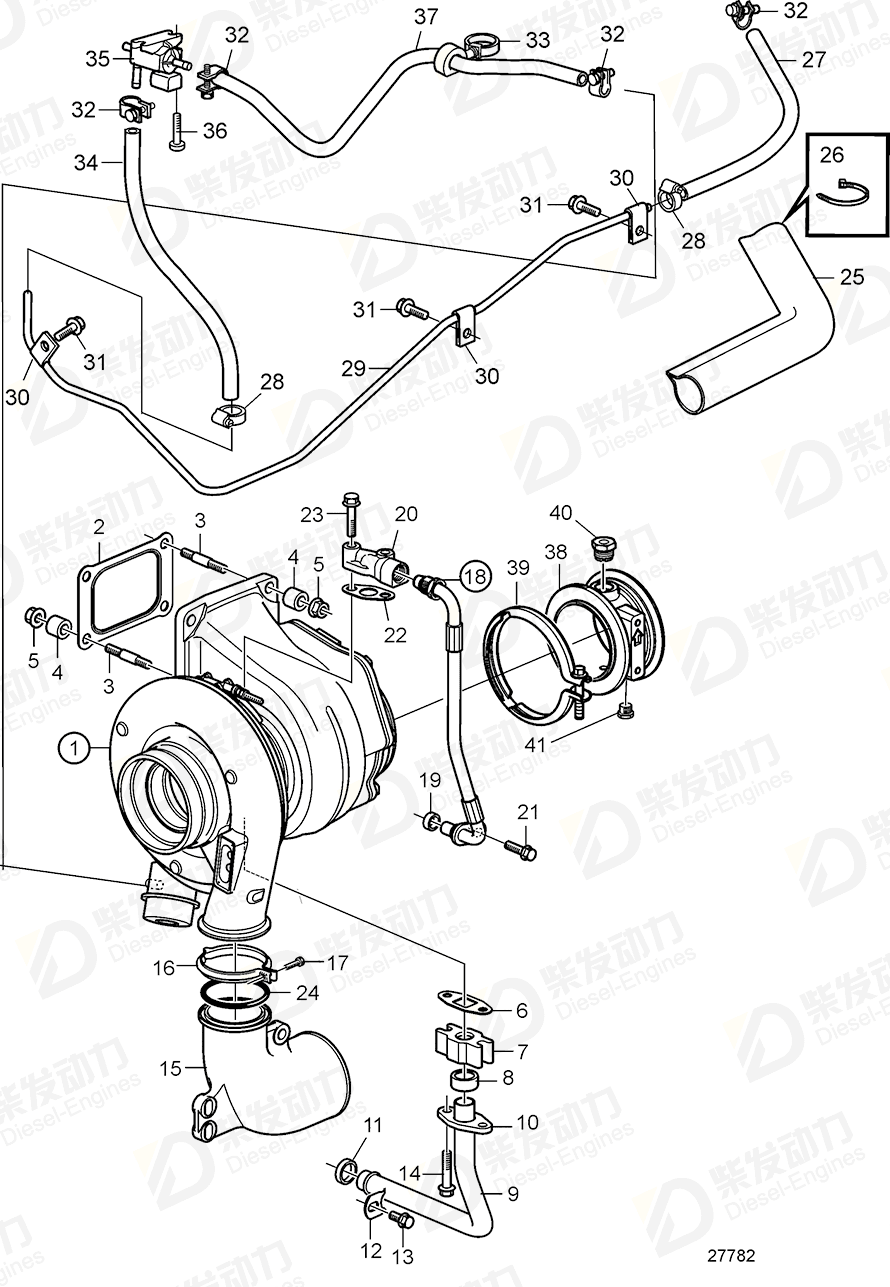

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801536 | 1 | |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Stud | 21345127 | 4 | |
| 4 | Spacer sleeve | 20573472 | 4 | |
| 5 | Flange nut | 1543499 | 4 | |
| 6 | Plane gasket | 420643 | 1 | |
| 7 | Connector | 8148729 | 1 | |
| 8 | Rubber moulding | 469601 | 1 | |
| 9 | Oil return pipe | 3886333 | 1 | |
| 10 | Pipe flange | 469543 | 1 | |
| 11 | Sealing ring | 21940615 | 1 | |
| 12 | Lock brace | 1546531 | 1 | |
| 13 | Flange screw | 984733 | 1 | |
| 14 | Flange screw | 984738 | 2 | |
| 15 | Connecting pipe | 11030375 | 1 | |
| 16 | V-clamp | 1542778 | 1 | |
| 17 | Flange screw | 994374 | 1 | |
| 18 | Oil pressure pipe | 3886331 | 1 | |
| 19 | Sealing ring | 20526428 | 1 | |
| 20 | Flange | 8192268 | 1 | |
| 21 | Flange screw | 994446 | 1 | |
| 22 | Plane gasket | 420641 | 1 | |
| 23 | Flange screw | 984737 | 2 | |
| 24 | Sealing ring | 1542781 | 1 | |
| 25 | Tube | 20711293 | 1 | |
| 26 | Cable tie | 22343166 | 1 | |
| 27 | Hose | 21109863 | 1 | |
| 28 | Hose clamp | 961662 | 2 | |
| 29 | Pipe | 21154124 | 1 | |
| 30 | Clamp | 942400 | 3 | |
| 31 | Flange screw | 984733 | 3 | |
| 32 | Hose clamp | 975269 | 4 | |
| 33 | Retainer | 21045811 | 1 | |
| 34 | Hose | 21109863 | 1 | |
| 35 | Solenoid valve | 3819161 | 1 | |
| 36 | Flange screw | 996061 | 2 | |
| 37 | Fuel hose | 1266870 | 1 | |
| 38 | Exhaust pipe | 22126840 | 1 | L=620mm |
| 39 | V-clamp | 21211715 | 1 | |
| 40 | Plug | 20565546 | 1 | |
| 41 | Plug | 479979 | 1 |
| Item | Part Name | Part No. |
| 40 | Plug 20565546 | 20565546 |
| Details | |
| Engine model | TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE |
| Application | Turbocharger |
