Plug 21147028

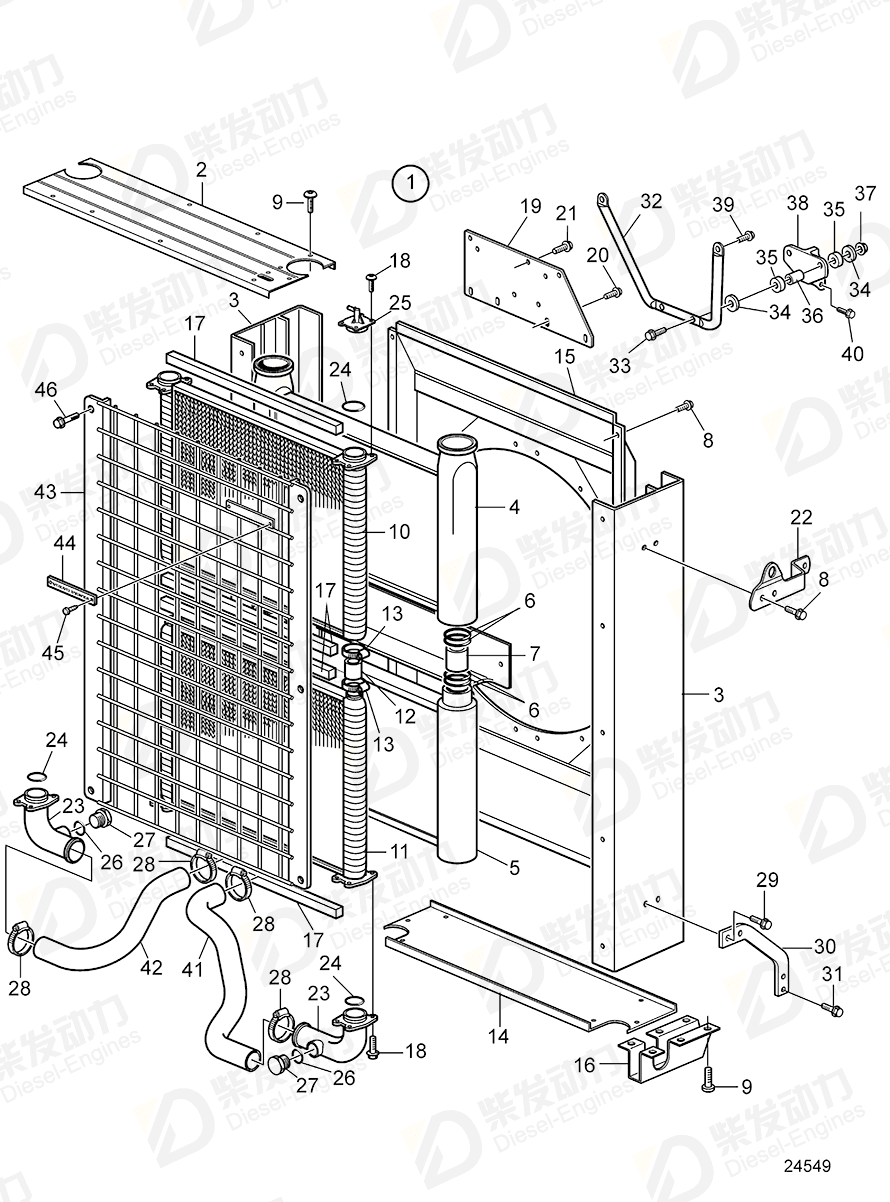

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cooling unit | 3885433 | 1 | |
| 2 | Frame profile | 21134770 | 1 | |
| 3 | Frame profile | 21134766 | 2 | |
| 4 | Charge air cooler | 3838129 | 1 | |
| 5 | Charge air cooler | 3587692 | 1 | |
| 6 | O-ring | 3587694 | 8 | |
| 7 | Intermediate pipe | 3587693 | 2 | |
| 8 | Flange screw | 984733 | 16 | |
| 9 | Screw | 3587729 | 18 | |
| 10 | Radiator | 21134096 | 1 | |
| 11 | Radiator | 21133904 | 1 | |
| 12 | Hose | 21134129 | 2 | |
| 13 | Hose clamp | 943478 | 2 | 62 (951794) |
| 14 | Frame profile | 21134775 | 1 | |
| 15 | Fan shroud | 3838131 | 1 | |
| 16 | Base | 21134779 | 2 | |
| 17 | Sealing strip | 3587741 | 4 | |
| 19 | Bracket | 3587730 | 1 | |
| 20 | Flange screw | 984752 | 2 | |
| 21 | Flange screw | 984734 | 3 | |
| 22 | Bracket | 3830508 | 1 | Right |
| 22 | Bracket | 3830509 | 1 | Left |
| 23 | Hose connection | 21134796 | 2 | |
| 24 | O-ring | 21138584 | 4 | |
| 25 | Cover | 21134814 | 1 | |
| 26 | O-ring | 21147027 | 2 | |
| 27 | Plug | 21147028 | 2 | |
| 28 | Hose clamp | 994565 | 4 | |
| 29 | Flange screw | 984735 | 4 | |
| 30 | Bracket | 3808825 | 1 | Left |
| 30 | Bracket | 3808827 | 1 | Right |
| 31 | Flange screw | 984734 | 4 | |
| 32 | Stay | 3593807 | 1 | |
| 33 | Flange screw | 968302 | 2 | |
| 34 | Washer | 948556 | 4 | |
| 35 | Rubber bushing | 866857 | 4 | |
| 36 | Spacer sleeve | 252202 | 2 | |
| 37 | Flange nut | 966818 | 2 | Alt |
| 38 | Bracket | 3594409 | 1 | |
| 39 | Flange screw | 946472 | 2 | |
| 40 | Flange screw | 984753 | 3 | |
| 41 | Radiator hose | 3886480 | 1 | Right |
| 42 | Radiator hose | 3886478 | 1 | Left |
| 43 | Radiator protector | 3829123 | 1 | Replaced by 21154155 |
| 43 | Radiator protector | 21154155 | 1 | |
| 44 | Emblem | 846118 | 1 | |
| 45 | Screw | 941651 | 2 | |
| 46 | Flange screw | 984733 | 6 |
| Item | Part Name | Part No. |
| 27 | Plug 21147028 | 21147028 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE TAD1641VE, TAD1642VE TAD1643VE TAD1650GE, TAD1651GE TAD1650VE TAD1660VE, TAD1661VE, TAD1662VE |
| Application | Radiator and Charge Air Cooler, SN-2016079647 Radiator and Charge Air Cooler,Pushing,SN2016027048-2016079647 Radiator and Sunktion Fan. SN-2016079647 Radiator Suction Fan. SN2016028725-201679647 |
