Plug 21349017

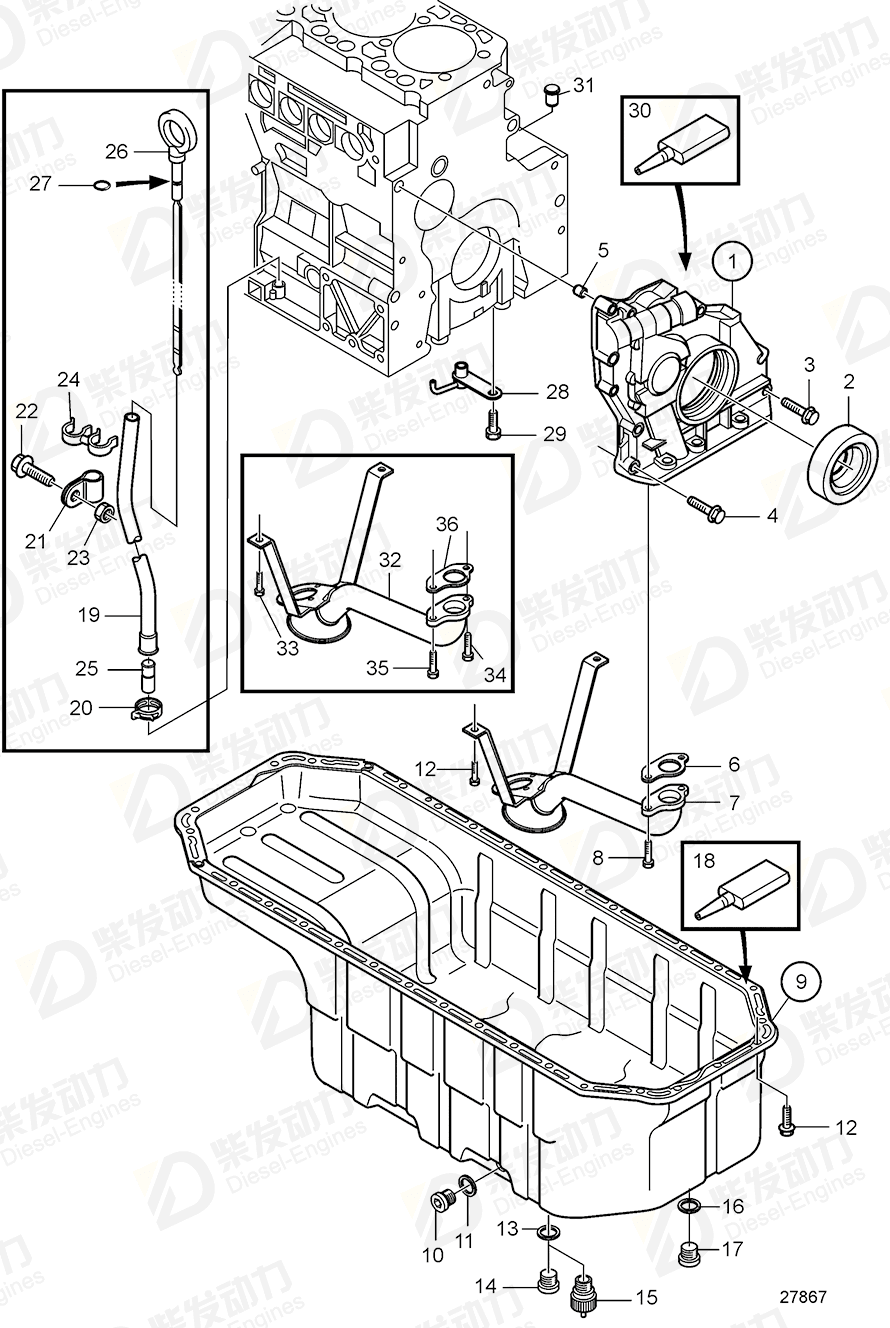

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump housing | 21486014 | 1 | |
| 2 | Lip seal | 21486081 | 1 | |
| 3 | Flange screw | 20797270 | 3 | |
| 4 | Flange screw | 975199 | 8 | |
| 5 | Spring pin | 20405603 | 1 | |
| 6 | Gasket | 20779655 | 1 | SN-11181213 |
| 7 | Oil strainer | 21034764 | 1 | SN-11181213 |
| 8 | Flange screw | 20512299 | 2 | |
| 9 | Oil pan | 21248622 | 1 | SN-11181213 |
| 9 | Oil pan | 22118924 | 1 | SN11181214- |
| 10 | Plug | 20460024 | 2 | |
| 11 | Gasket | 993680 | 2 | |
| 12 | Flange screw | 984733 | 36 | |
| 13 | Gasket | 11998 | 1 | |
| 14 | Plug | 20405506 | 1 | |
| 15 | Drain valve | 20450851 | 1 | |
| 16 | Gasket | 949329 | 1 | |
| 17 | Plug | 21094611 | 1 | |
| 18 | Sealant | 21076467 | 1 | |
| 19 | Guide tube | 20791373 | 1 | |
| 20 | Hose clamp | 20799673 | 1 | |
| 21 | Attaching clamp | 21088531 | 1 | |
| 22 | Flange screw | 967949 | 1 | |
| 23 | Hexagon nut | 955781 | 1 | |
| 24 | Bracket | 21004700 | 1 | |
| 25 | Guide tube | 21728014 | 1 | Replaced by 22291827 |
| 25 | Guide tube | 22291827 | 1 | |
| 26 | Dipstick | 21080179 | 1 | |
| 27 | O-ring | 20460218 | 1 | |
| 28 | Piston cooling jet | 21034765 | 6 | |
| 28 | Nozzle | 21664398 | 6 | TAD754GE |
| 29 | Flange screw | 975199 | 6 | |
| 30 | Sealant | 21076473 | 1 | |
| 31 | Plug | 21349017 | 1 | |
| 32 | Pipe | 21664641 | 1 | SN11181214- |
| 33 | Flange screw | 946440 | 2 | |
| 34 | Flange screw | 994441 | 1 | |
| 35 | Flange screw | 945444 | 1 | |
| 36 | Gasket | 20779655 | 1 | SN-11181213 |
| Item | Part Name | Part No. |
| 31 | Plug 21349017 | 21349017 |
| Details | |
| Engine model | TAD560VE, TAD561VE TAD734GE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Lubricating System Lubricating System with Central Oil Sump Lubricating System, Optional Lubricating System, Standard |
