Plug 22014424

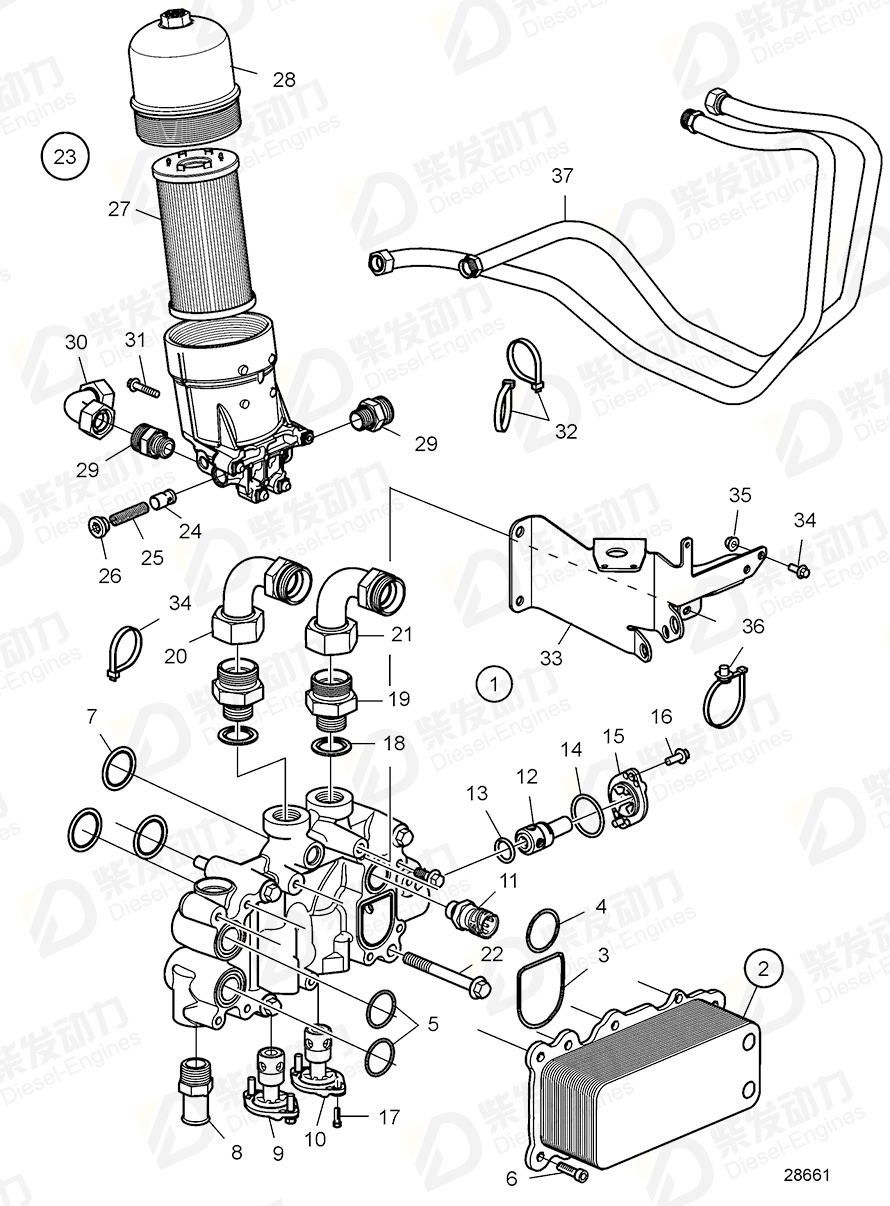

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connection block | 22565707 | 1 | |
| 2 | Oil cooler kit | 21913340 | 1 | |
| 3 | Gasket | 21594136 | 1 | |
| 4 | O-ring | 21594138 | 1 | |
| 5 | O-ring | 21594140 | 2 | |
| 6 | Hex. socket screw | 22038514 | 10 | |
| 7 | O-ring | 21638766 | 3 | |
| 8 | Hose nipple | 981250 | 1 | |
| 9 | Reduction valve | 471640 | 1 | Red |
| 10 | Reduction valve | 471812 | 1 | Marked black |
| 11 | Pressure sensor, oil-pressure | 21634021 | 1 | |
| 11 | Pressure sensor | 22899626 | 1 | SN2013690141- |
| 12 | Piston cooling valve | 471646 | 1 | |
| 13 | Sealing ring | 469846 | 3 | |
| 14 | O-ring | 949659 | 3 | |
| 15 | Cover | 471648 | 3 | |
| 16 | Flange screw | 984725 | 2 | |
| 17 | Flange screw | 984726 | 4 | |
| 18 | Gasket | 982508 | 2 | |
| 19 | Adapter | 11158220 | 2 | |
| 20 | Pipe elbow | 21169201 | 2 | |
| 21 | Flange screw | 984760 | 4 | |
| 22 | Oil filter housing | 22602389 | 1 | |
| 23 | Valve | 22014439 | 1 | |
| 24 | Spring | 22014434 | 1 | |
| 25 | Plug | 22014424 | 1 | |
| 26 | Filter kit | 21913334 | 1 | |
| 27 | Cap | 21844620 | 1 | |
| 28 | Adapter | 22255243 | 2 | |
| 29 | Pipe elbow, pipe elbow | 22647673 | 1 | |
| 30 | Flange screw | 984738 | 4 | |
| 31 | Cable tie | 980464 | 2 | |
| 32 | Bracket | 22565713 | 1 | |
| 33 | Flange screw | 984734 | 2 | |
| 34 | Flange lock nut | 990950 | 1 | |
| 35 | Cable tie | 990073 | 1 | For cable to unit injectors. |
| 36 | Oil hose | 22595613 | 2 |
| Item | Part Name | Part No. |
| 25 | Plug 22014424 | 22014424 |
| Details | |
| Engine model | TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Remote Oil Filter |
