Plug 240919

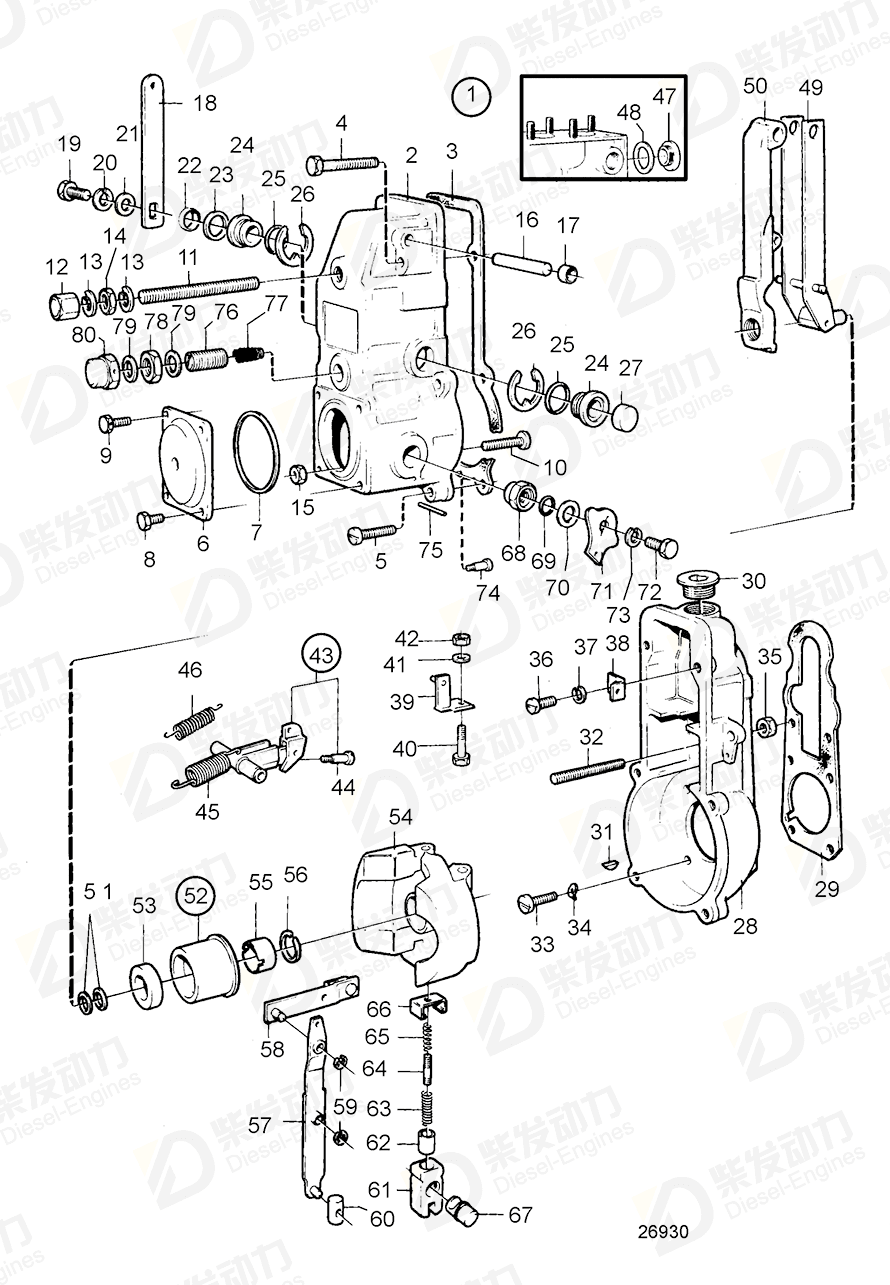

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 844970 | 1 | |
| 2 | Regulator cover | 243450 | 1 | Ers av 1st 471172 housing,2 st 466987 filter element |
| 3 | Gasket | 11992560 | 1 | |
| 4 | Hexagon screw | 940101 | 2 | (240772) |
| 5 | Hexagon screw | 955274 | 4 | |
| 6 | Cover | 846187 | 1 | |
| 7 | Gasket | 240394 | 1 | |
| 8 | Hexagon screw | 955268 | 2 | |
| 9 | Screw | 845229 | 2 | |
| 10 | Screw | 239021 | 1 | |
| 11 | Idle screw | 837373 | 1 | For generating unit |
| 12 | Nut | 870636 | 1 | |
| 13 | Gasket | 190990 | 2 | |
| 14 | Hexagon nut | 940197 | 1 | |
| 15 | Hexagon nut | 940197 | 1 | |
| 16 | Shaft | 239017 | 1 | |
| 17 | Plug | 240374 | 2 | |
| 18 | Arm | 239039 | 1 | |
| 19 | Hexagon screw | 955271 | 1 | |
| 20 | Spring washer | 941906 | 1 | |
| 21 | Washer | 955892 | 1 | |
| 22 | Adjusting washer | 233994 | 1 | TH=0.5mm |
| 22 | Washer | 238132 | 1 | |
| 22 | Adjusting washer | 240046 | 1 | TH=0.3mm |
| 23 | Sealing ring | 240063 | 1 | |
| 24 | Bearing bushing | 240382 | 2 | |
| 25 | Gasket | 240383 | 2 | |
| 26 | E-circlip | 942796 | 2 | |
| 27 | Cover | 239037 | 1 | |
| 28 | Regulator housing | 870907 | 1 | |
| 29 | Gasket | 240058 | 1 | |
| 30 | Plug | 240919 | 1 | |
| 31 | Key | 25464 | 1 | |
| 32 | Adjusting screw | 243451 | 1 | |
| 33 | Cross recessed screw | 956095 | 4 | |
| 34 | Spring washer | 941906 | 4 | |
| 35 | Hexagon nut | 940197 | 1 | |
| 36 | Cross recessed screw | 956097 | 4 | |
| 37 | Spring washer | 941906 | 4 | |
| 38 | Bracket | 870908 | 1 | |
| 39 | Companion flange | 243449 | 1 | |
| 40 | Cross recessed screw | 956075 | 1 | |
| 41 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 42 | Hexagon nut | 955780 | 1 | |
| 43 | Swivel arm | 870887 | 1 | |
| 44 | Screw | 239031 | 1 | |
| 45 | Spring | 239040 | 1 | |
| 46 | Spring | 845009 | 1 | (239041) |
| 47 | Lock screw | 240016 | 1 | |
| 48 | Gasket | 240017 | 1 | Spec.867473 alt |
| 49 | Lever | 845023 | 1 | |
| 50 | Tensioning arm | 241008 | 1 | |
| 51 | Spacer | 239007 | 1 | TH=0.2mm |
| 51 | Washer | 239008 | 1 | TH=0.4mm |
| 51 | Washer | 239009 | 1 | TH=1.0mm |
| 51 | Adjusting washer | 870877 | 1 | TH=0.3mm |
| 52 | Control sleeve | 845025 | 1 | |
| 53 | Roller bearing | 239006 | 1 | |
| 54 | Regulator weight | 848220 | 1 | |
| 55 | Round nut | 238994 | 1 | |
| 56 | Spring washer | 238995 | 1 | |
| 57 | Lever | 240375 | 1 | |
| 58 | Lever | 845008 | 1 | |
| 59 | E-circlip | 951667 | 2 | |
| 60 | Cube | 240376 | 1 | |
| 61 | Link | 870917 | 1 | |
| 62 | Sleeve | 239051 | 1 | |
| 63 | Spring | 240388 | 1 | |
| 64 | Spring | 240387 | 1 | |
| 65 | Spring | 240386 | 1 | |
| 66 | Brace | 870916 | 1 | |
| 67 | Shaft | 239049 | 1 | |
| 68 | Bearing bushing | 239048 | 1 | |
| 69 | Gasket | 239058 | 1 | |
| 70 | Adjusting washer | 243513 | 1 | |
| 71 | Lever | 870912 | 1 | See group 2D |
| 72 | Hexagon screw | 955271 | 1 | |
| 73 | Spring washer | 941906 | 1 | |
| 74 | Pin | 240390 | 1 | |
| 75 | Pin | 845007 | 1 | |
| 76 | Screw | 239044 | 1 | |
| 77 | Spring | 870667 | 1 | |
| 78 | Nut | 239046 | 1 | (870933) |
| 79 | Gasket | 18839 | 2 | |
| 80 | Nut | 870637 | 1 |
| Item | Part Name | Part No. |
| 30 | Plug 240919 | 240919 |
| Details | |
| Engine model | TD100G-87 |
| Application | Centrifugal Governor Centrifugal Governor, Components Centrifugal Governor: 240909 Centrifugal Governor: 240910 Centrifugal Governor: 241737 Centrifugal Governor: 243829 Centrifugal Governor: 844960 Centrifugal Governor: 844970 Centrifugal Governor: 845233 CENTRIFUGAL GOVERNOR: 845390 Centrifugal Governor: 845406 CENTRIFUGAL GOVERNOR: 846602 CENTRIFUGAL GOVERNOR: 847422 Centrifugal Governor: 848003 CENTRIFUGAL GOVERNOR: 848210 Centrifugal Governor: 848570 Governor Governor: 849472 Governor: 849481 Governor: 849506 Governor: 849508 |
Related Products
Tags: Plug, Volvo Penta, 240919
