Plug 244092

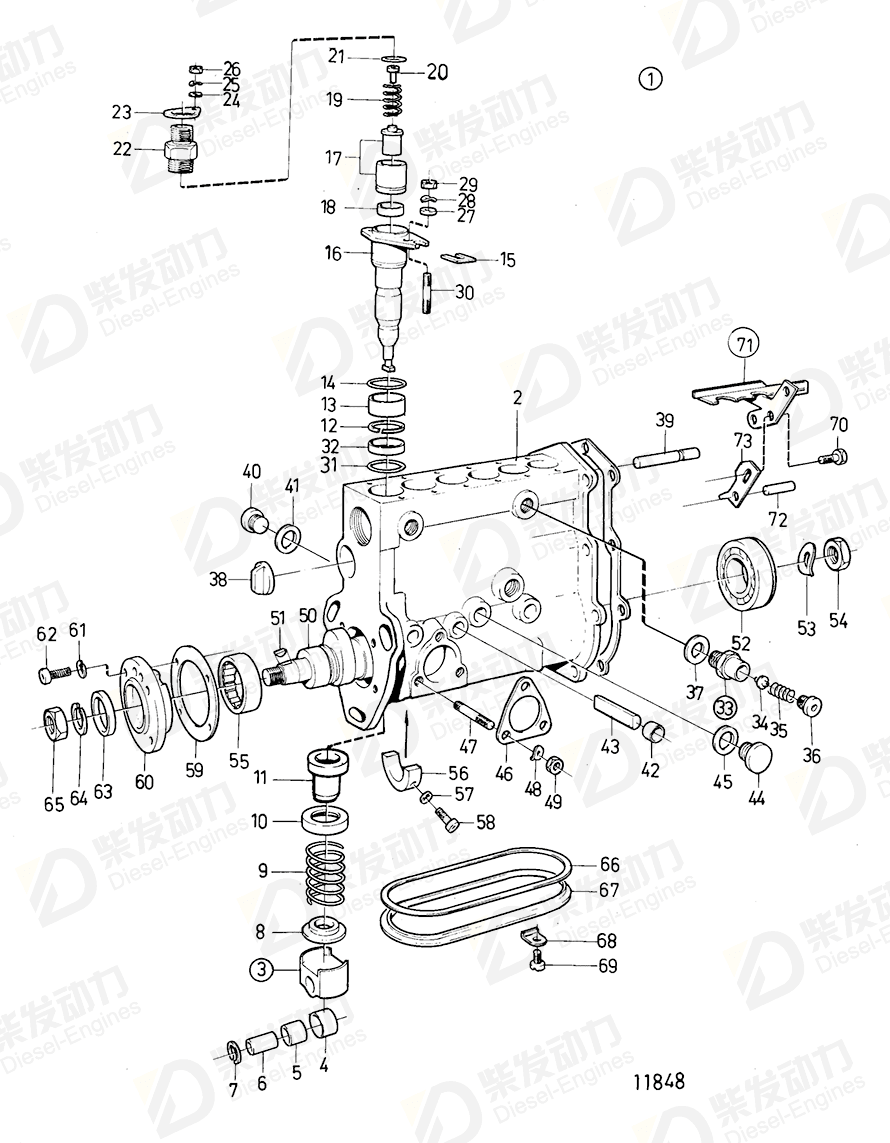

| No. | Part Name | Part Number | Qty | Description |
| 3 | Tappet | 11998507 | 6 | (244516) |
| 4 | Cam follower | 244517 | 6 | |
| 5 | Sleeve | 244518 | 6 | |
| 6 | Bearing bolt | 244519 | 6 | |
| 7 | Lock ring | 244520 | 6 | |
| 8 | Spring disc | 244066 | 6 | |
| 9 | Spring | 6213548 | 6 | (244515) |
| 10 | Spring disc | 244514 | 6 | |
| 11 | Control sleeve | 1698693 | 6 | (6643666) |
| 12 | Snap ring | 244508 | 6 | |
| 13 | Cover | 6212662 | 6 | |
| 14 | O-ring | 6212661 | 6 | |
| 15 | Adjusting washer | 244080 | 1 | TH=1,50mm |
| 15 | Adjusting washer | 244081 | 1 | TH=1,60mm |
| 15 | Adjusting washer | 244082 | 1 | TH=1,70mm |
| 15 | Adjusting washer | 244083 | 1 | TH=1,80mm |
| 15 | Adjusting washer | 244084 | 1 | TH=1,90mm |
| 15 | Adjusting washer | 244085 | 1 | (239985) |
| 15 | Adjusting washer | 244086 | 1 | TH=2,10mm |
| 15 | Adjusting washer | 244087 | 1 | TH=2,20mm |
| 15 | Adjusting washer | 244088 | 1 | TH=2,30mm |
| 15 | Adjusting washer | 244089 | 1 | TH=2,40mm |
| 15 | Adjusting washer | 244090 | 1 | TH=2,50mm |
| 15 | Adjusting washer | 244786 | 1 | TJ=1,45mm |
| 15 | Adjusting washer | 843170 | 1 | TH=1,55mm |
| 15 | Adjusting washer | 843171 | 1 | TH=1,65mm |
| 15 | Adjusting washer | 843172 | 1 | TH=1,75mm |
| 15 | Adjusting washer | 843173 | 1 | TH=1,85mm |
| 15 | Adjusting washer | 843174 | 1 | TH=1,95mm |
| 15 | Adjusting washer | 843175 | 1 | TH=2,05mm |
| 15 | Adjusting washer | 843176 | 1 | TH=2,15mm |
| 15 | Adjusting washer | 843177 | 1 | TH=2,25mm |
| 15 | Adjusting washer | 843178 | 1 | TH=2,35mm |
| 15 | Adjusting washer | 843179 | 1 | TH=2,45mm |
| 16 | Pump element | 6212658 | 6 | |
| 17 | Delivery valve | 862278 | 6 | |
| 18 | Seal | 11993565 | 6 | |
| 19 | Compression spring | 238309 | 6 | |
| 20 | Spacer | 862279 | 6 | |
| 21 | O-ring | 6212664 | 6 | |
| 22 | Valve retainer | 862277 | 6 | |
| 23 | Striker plate | 848738 | 6 | |
| 24 | Spacer ring | 244060 | 6 | |
| 25 | Spring washer | 941907 | 6 | |
| 26 | Hexagon nut | 955782 | 6 | |
| 27 | Spacer ring | 244060 | 12 | |
| 28 | Spring washer | 941907 | 12 | |
| 29 | Hexagon nut | 955782 | 12 | |
| 30 | Screw | 848735 | 12 | |
| 31 | O-ring | 244500 | 6 | |
| 32 | Spacer ring | 244499 | 6 | |
| 33 | Overflow valve | 35096 | 1 | |
| 34 | Valve peg | 238614 | 1 | |
| 35 | Compression spring | 845193 | 1 | |
| 36 | Bushing | 25540 | 1 | Replaced by 479775 for engines without fuel shut of valve or 3825154 for engines with fuel shut of valve. |
| 37 | Gasket | 969011 | 1 | |
| 38 | Plug | 244498 | 1 | |
| 39 | Guide pin | 862276 | 1 | |
| 40 | Screw | 847439 | 1 | |
| 41 | Gasket | 969011 | 1 | |
| 42 | Cap | 244076 | 3 | |
| 43 | Bolt | 6212655 | 3 | |
| 44 | Plug | 244092 | 1 | |
| 45 | Gasket | 18840 | 1 | Spec.867473 alt |
| 46 | Gasket | 6232208 | 1 | (863370) |
| 47 | Stud | 130673 | 3 | |
| 48 | Spring washer | 941906 | 3 | |
| 49 | Hexagon nut | 955781 | 3 | |
| 50 | Camshaft | 244846 | 1 | (849469) |
| 51 | Key | 35168 | 1 | |
| 52 | Bearing | 244522 | 1 | |
| 53 | Ring | 849471 | 1 | |
| 54 | Nut | 244527 | 1 | |
| 55 | Bearing | 6212651 | 1 | |
| 56 | Bearing shell | 244528 | 1 | |
| 57 | Gasket | 190990 | 2 | |
| 58 | Screw | 244529 | 2 | |
| 59 | Gasket | 863371 | 1 | (6212652) |
| 60 | Bearing cover | 848736 | 1 | |
| 61 | Washer | 843166 | 4 | |
| 62 | Screw | 244847 | 4 | |
| 63 | Sealing ring | 244073 | 1 | |
| 64 | Spring washer | 955927 | 1 | |
| 65 | Hexagon nut | 955806 | 1 | |
| 66 | Gasket | 244077 | 1 | |
| 67 | Cover | 244526 | 1 | |
| 68 | Lock washer | 244079 | 6 | |
| 69 | Screw | 244848 | 6 | |
| 70 | Screw | 849468 | 2 | |
| 71 | Control arm | 244511 | 1 | |
| 72 | Pin | 244513 | 1 | |
| 73 | Plate | 244512 | 1 | |
| 73 | Small parts kit | 6212665 | 1 |
| Item | Part Name | Part No. |
| 44 | Plug 244092 | 244092 |
| Details | |
| Application | Fuel Injection Pump Fuel Injection Pump: 4880898 Fuel Injection Pump: 4881119 Smoke Eliminator: 862468 Smoke Eliminator: 862469 |
