Plug 244498

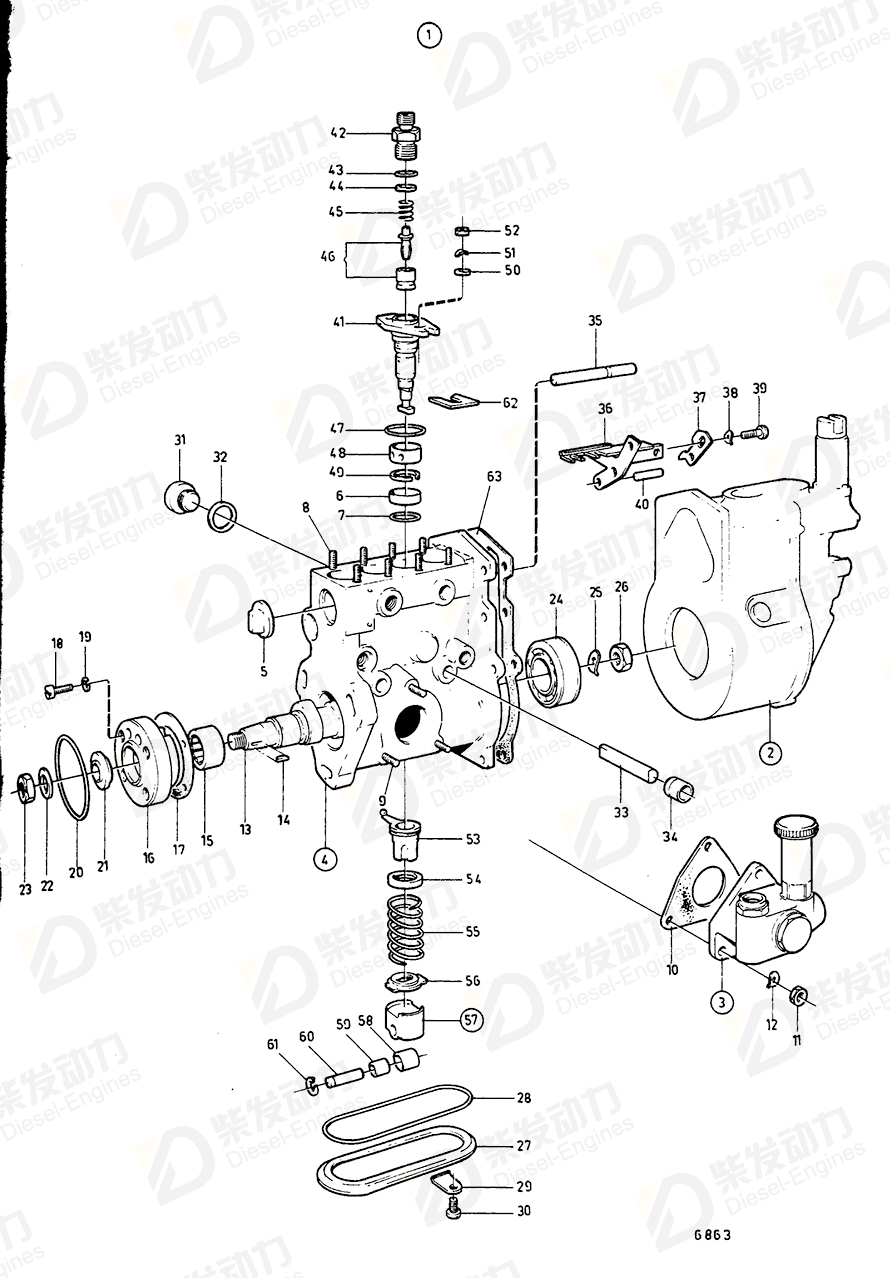

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 4880898 | 1 | |
| 2 | Centrifugal governor | 6212666 | 1 | |
| 3 | Feed pump | 6212643 | 1 | |
| 5 | Plug | 244498 | 1 | |
| 6 | Spacer ring | 244499 | 4 | |
| 7 | O-ring | 244500 | 4 | |
| 8 | Stud | 6212648 | 8 | |
| 9 | Stud | 130673 | 3 | |
| 10 | Gasket | 863370 | 1 | |
| 11 | Hexagon nut | 955781 | 3 | |
| 12 | Spring washer | 941906 | 3 | |
| 13 | Camshaft | 6212650 | 1 | |
| 14 | Woodruff key | 243734 | 1 | |
| 15 | Bearing | 6212651 | 1 | |
| 16 | Bearing cover | 6212653 | 1 | |
| 17 | Gasket | 863371 | 1 | (6212652) |
| 18 | Cross recessed screw | 956093 | 4 | |
| 19 | Washer | 843166 | 4 | |
| 20 | O-ring | 1698556 | 1 | |
| 21 | Sealing ring | 6212654 | 1 | |
| 22 | Lock washer | 870973 | 1 | |
| 23 | Hexagon nut | 955804 | 1 | Fenwal,circuit closes again at 96°C.spec.9969 alt. |
| 24 | Bearing | 244522 | 1 | |
| 25 | Spring washer | 941915 | 1 | |
| 26 | Nut | 244527 | 1 | |
| 27 | Cover | 6212657 | 1 | |
| 28 | O-ring | 1698556 | 1 | |
| 29 | Lock washer | 244079 | 4 | |
| 30 | Cross recessed screw | 956091 | 4 | |
| 31 | Plug | 244092 | 1 | |
| 32 | Gasket | 18840 | 1 | Spec.867473 alt |
| 33 | Bolt | 6212655 | 2 | |
| 34 | Cap | 244076 | 2 | |
| 35 | Pin | 6213590 | 1 | (244510) |
| 36 | Control rod | 6212649 | 1 | |
| 37 | Plate | 244512 | 1 | |
| 38 | Spring washer | 941906 | 2 | |
| 39 | Cross recessed screw | 956095 | 2 | |
| 40 | Pin | 244513 | 1 | |
| 41 | Pump element | 6212658 | 4 | |
| 42 | Retainer | 6212659 | 4 | |
| 43 | O-ring | 6212664 | 4 | |
| 44 | Gasket | 6212663 | 4 | |
| 45 | Compression spring | 238309 | 4 | |
| 46 | Valve | 6212660 | 4 | |
| 47 | O-ring | 6212661 | 4 | |
| 48 | Cover | 6212662 | 4 | |
| 49 | Snap ring | 244508 | 4 | |
| 50 | Spacer ring | 244060 | 8 | |
| 51 | Spring washer | 941907 | 8 | |
| 52 | Hexagon nut | 955782 | 8 | |
| 53 | Control sleeve | 1698693 | 4 | (6643666) |
| 54 | Spring disc | 244514 | 4 | |
| 55 | Spring | 6213548 | 4 | (244515) |
| 56 | Spring disc | 244066 | 4 | |
| 57 | Tappet | 244516 | 4 | |
| 58 | Cam follower | 244517 | 4 | |
| 59 | Sleeve | 244518 | 4 | |
| 60 | Bearing bolt | 244519 | 4 | |
| 61 | Lock ring | 244520 | 4 | |
| 62 | Adjusting washer | 244080 | 1 | TH=1,50mm |
| 62 | Adjusting washer | 244081 | 1 | TH=1,60mm |
| 62 | Adjusting washer | 244082 | 1 | TH=1,70mm |
| 62 | Adjusting washer | 244083 | 1 | TH=1,80mm |
| 62 | Adjusting washer | 244084 | 1 | TH=1,90mm |
| 62 | Adjusting washer | 244085 | 1 | (239985) |
| 62 | Adjusting washer | 244086 | 1 | TH=2,10mm |
| 62 | Adjusting washer | 244087 | 1 | TH=2,20mm |
| 62 | Adjusting washer | 244088 | 1 | TH=2,30mm |
| 62 | Adjusting washer | 244089 | 1 | TH=2,40mm |
| 62 | Adjusting washer | 244090 | 1 | TH=2,50mm |
| 62 | Adjusting washer | 843170 | 1 | TH=1,55mm |
| 62 | Adjusting washer | 843171 | 1 | TH=1,65mm |
| 62 | Adjusting washer | 843172 | 1 | TH=1,75mm |
| 62 | Adjusting washer | 843173 | 1 | TH=1,85mm |
| 62 | Adjusting washer | 843174 | 1 | TH=1,95mm |
| 62 | Adjusting washer | 843175 | 1 | TH=2,05mm |
| 62 | Adjusting washer | 843176 | 1 | TH=2,15mm |
| 62 | Adjusting washer | 843177 | 1 | TH=2,25mm |
| 62 | Adjusting washer | 843178 | 1 | TH=2,35mm |
| 62 | Adjusting washer | 843179 | 1 | TH=2,45mm |
| 63 | Gasket | 6211236 | 1 | |
| 63 | Small parts kit | 6212665 | 1 |
| Item | Part Name | Part No. |
| 5 | Plug 244498 | 244498 |
| Details | |
| Application | Fuel Injection Pump Fuel Injection Pump: 4880898 Fuel Injection Pump: 4881119 |
