Plug, 3/4-UNF 948187

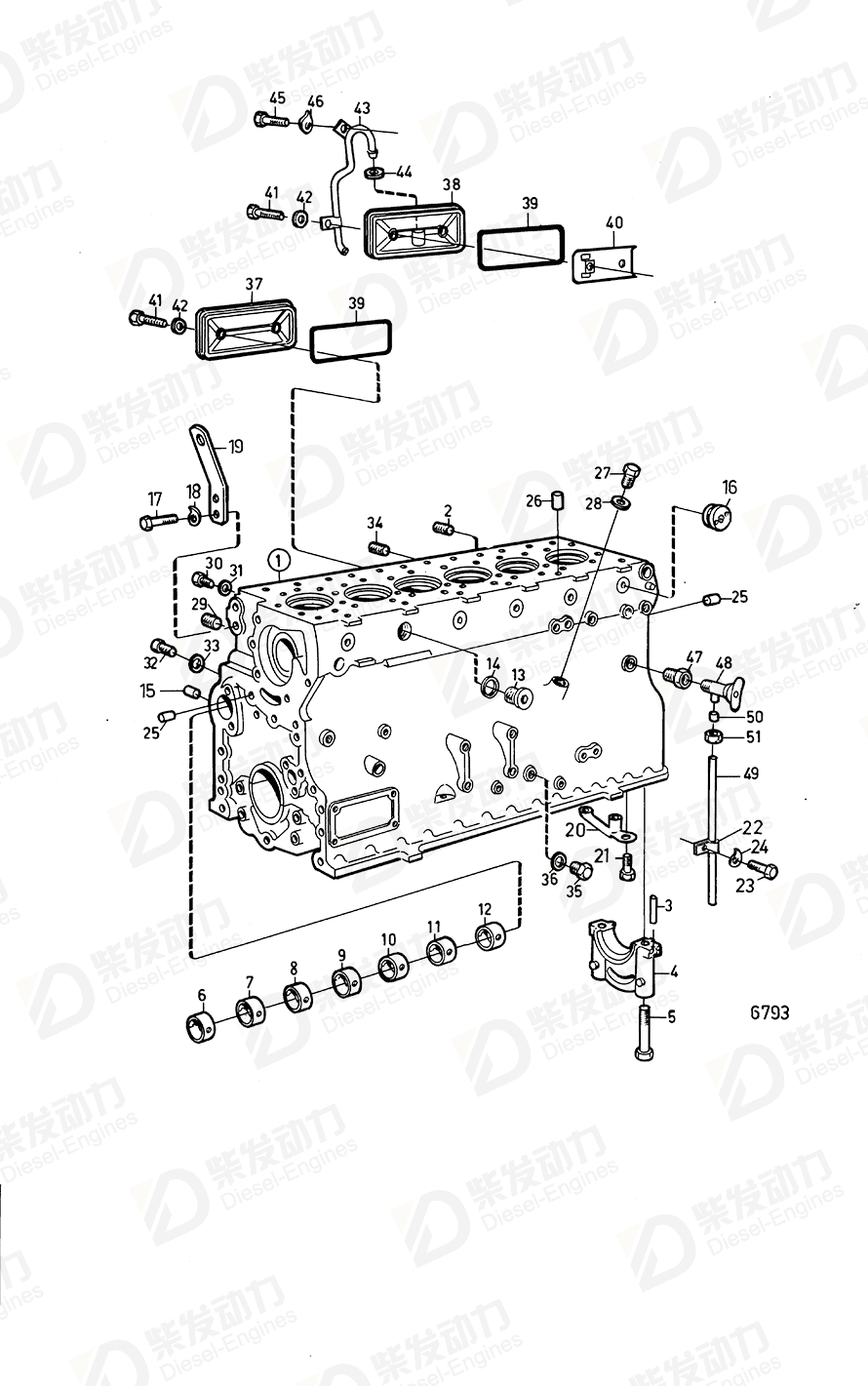

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 470130 | 1 | Spare part design., Replaced by 478990 |
| 2 | Plug | 952075 | 2 | |
| 3 | Pin | 422426 | 1 | |
| 5 | Flange screw | 423444 | 14 | |
| 6 | Bushing | 422076 | 1 | |
| 7 | Bushing | 422077 | 1 | |
| 8 | Bushing | 422078 | 1 | |
| 9 | Bushing | 422079 | 1 | |
| 10 | Bushing | 422080 | 1 | |
| 11 | Bushing | 422081 | 1 | |
| 12 | Bushing | 422082 | 1 | |
| 13 | Plug | 467367 | 5 | |
| 14 | Gasket | 469328 | 6 | |
| 15 | Plug | 422369 | 7 | |
| 16 | Plug | 821335 | 1 | |
| 17 | Hexagon screw | 955562 | 2 | L=38mm |
| 18 | Spring washer | 940280 | 2 | |
| 20 | Oil jet | 468539 | 6 | |
| 21 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 22 | Clamp | 942400 | 1 | |
| 23 | Hexagon screw | 940133 | 1 | |
| 24 | Spring washer | 942336 | 1 | |
| 25 | Cap plug | 955082 | 2 | |
| 25 | Cap plug | 955083 | 3 | |
| 26 | Pin | 950543 | 12 | |
| 27 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 28 | Gasket | 18671 | 1 | |
| 29 | Plug | 952077 | 2 | |
| 30 | Plug | 16318 | 2 | |
| 31 | Gasket | 907132 | 2 | |
| 32 | Plug, 3/4-UNF | 948187 | 1 | |
| 33 | Gasket | 18818 | 1 | |
| 34 | Plug | 952075 | 1 | |
| 35 | Plug | 16318 | 3 | |
| 36 | Gasket | 907132 | 3 | |
| 37 | Inspection cover | 423120 | 2 | |
| 38 | Inspection cover | 423121 | 1 | |
| 39 | Gasket | 467409 | 3 | |
| 40 | Splash plate | 422542 | 1 | |
| 41 | Shoulder screw | 422541 | 6 | |
| 42 | Sealing ring | 471856 | 6 | |
| 43 | Tube | 468655 | 1 | |
| 44 | Sealing ring | 421158 | 1 | |
| 45 | Flange screw | 942402 | 2 | |
| 45 | Hexagon screw | 955523 | 2 | |
| 46 | Spring washer | 941907 | 2 | |
| 47 | Reduction nipple | 190130 | 1 | |
| 48 | Drain cock | 820436 | 1 | |
| 49 | Drain tube | 821889 | 1 | |
| 50 | Fitting | 954365 | 1 | |
| 51 | Fitting nut | 954357 | 1 |
| Item | Part Name | Part No. |
| 32 | Plug, 3/4-UNF 948187 | 948187 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P, TWD1210P, TWD1211P TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030VE, TAD1030V, TWD1031VE TD120BHC TD120BRC TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121CHC, TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GP-87 TD30A TD31ACE TD60B TD60D TD60D-83 TID120HPP TID121FG TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID60D TID60DG TWD1030ME TWD1210G, TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | Cylinder Block Cylinder Block and Related Parts CYLINDER BLOCK AND RELATED PARTS: A Cylinder Block and Related Parts: B Cylinder Block, Earlier Production Cylinder Block: 422960 Cylinder Block: 479650 Cylinder Block: 479752 Cylinder Block: A Cylinder Block: B Cylinder Block: C Lubricating System |
| Specification | |
| Descriptions | (190798) |
