Plug 324350

0 reviews Write a review

Qty

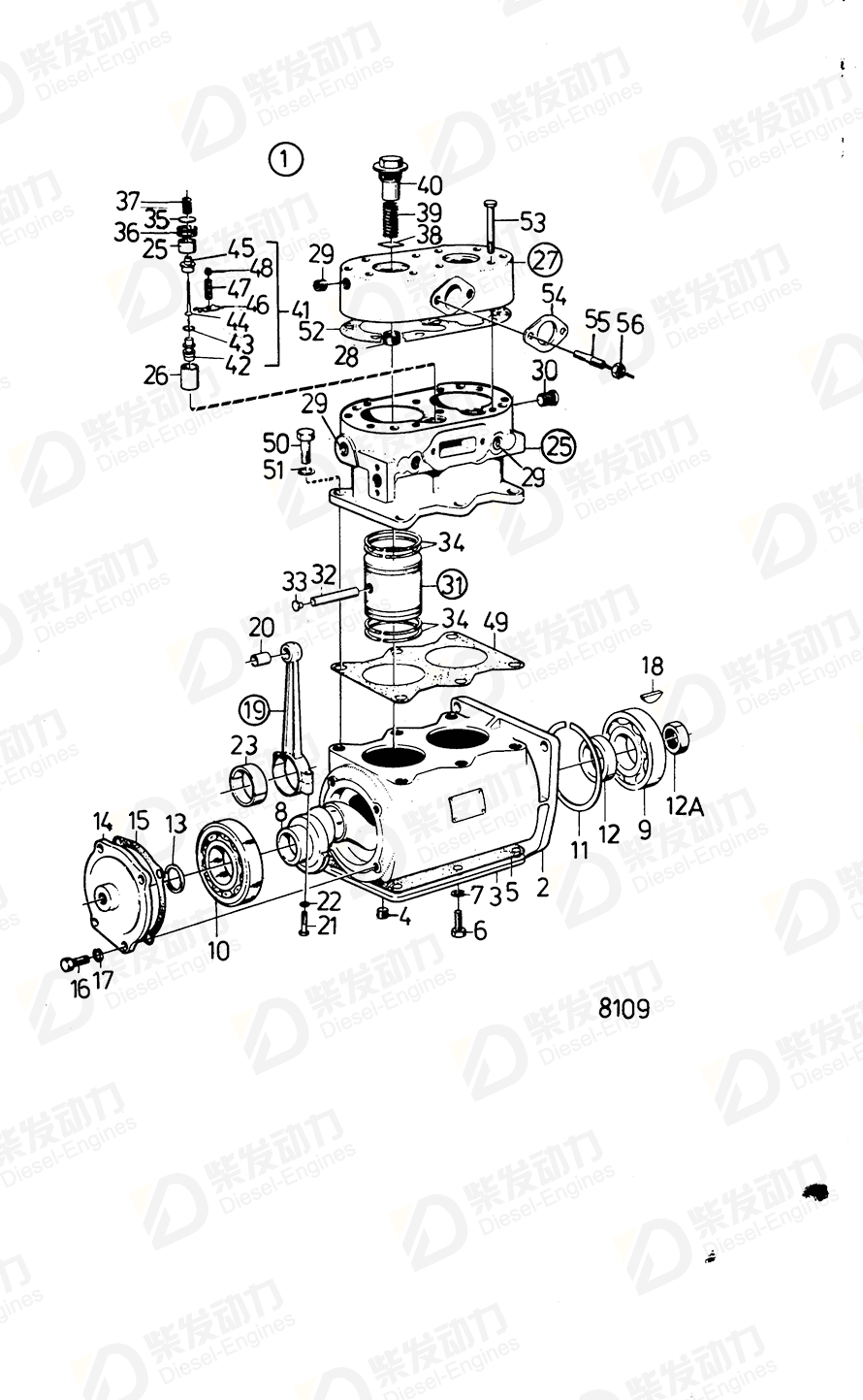

No.	Part Name	Part Number	Qty	Description
1	Compressor, compressor components not spec.	1599919	1	TUFLO 500
2	Crankcase	346935	1
3	Cover	346517	1
4	Plug	337793	1
5	Gasket	346938	1
6	Hexagon screw	940100	6
7	Spring washer	941906	6
8	Crankshaft	347146	1
9	Ball bearing	11014	2
10	Ball bearing	183260	1
11	Lock ring	346520	1
12	Spacer ring	346914	1
13	Sealing ring	324324	1
14	Cover	344230	1
15	Gasket	328731	1
16	Hexagon screw	940135	4
17	Spring washer	941907	4
18	Key	1517545	1	(346916)
19	Connecting rod	346940	2
20	Bushing	352973	1	Early type
21	Screw	328737	2
22	Lock washer	328738	4
23	Bearing shell	346942	4	Std D
23	Bearing shell	346943	4	0.25mm u.s
23	Bearing shell	346944	4	0.50mm u.s
24	Cylinder block	328743	1
25	Valve seat	324343	2
26	Bushing	326832	2
27	Cylinder head	328744	1
28	Valve seat	328745	2
29	Plug	352970	3
30	Plug	325865	1
30	Plug	352971	2
31	Piston	1697477	2	Std D
31	Piston	1697478	2	0.25mm o.s. later prod
31	Piston	1697479	2	(328748)
33	Plug	1518780	2
34	Piston ring kit	328752	1	Std D late type
34	Piston ring kit	328753	1	0.25mm o.s later prod
34	Piston ring kit	328754	1	0.50mm o.s later prod
35	Inlet valve	324344	2
36	Guide	328756	2
37	Spring	324346	2
38	Valve disc	328757	2
39	Spring	324349	2
40	Plug	324350	2
41	Repair kit	276543	1
44	Push rod	331877	2
45	Guide	331878	2
46	Bearing	344231	1
47	Spring	324355	1
48	Guide	326839	1
49	Gasket	1696118	1	(328763)
50	Hexagon screw	940115	6
51	Spring washer	941908	6
52	Gasket	1697531	1
53	Hexagon screw	940136	10
54	Gasket	324359	1
55	Stud	344232	2
56	Hexagon nut	955847	2
12A	Nut	346918	1

Item	Part Name	Part No.
40	Plug 324350	324350

Details
Application	Air Compressor Air Compressor, Components Air Compressor: 1599919 Air Compressor: 1611815 Air Compressor: 343938 Air Compressor: 351450 Air Compressor: 351453
