Plug 328758

Plug 328758

0 reviews Write a review
  • Brandsvolvo penta
  • Part No.: 328758
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Compressor 1594266 1 TUFLO 700
2 Crankcase 1696110 1
3 Cover 346517 1
4 Gasket 1696127 1
5 Hexagon screw 940100 6
6 Spring washer 941906 6
7 Crankshaft 1696111 1
8 Ball bearing 11014 2
9 Ball bearing 183260 1
10 Lock ring 346520 1
11 Spacer ring 346914 1
12 Nut 346918 1
13 Key 1517545 1 (346916)
14 Sealing ring 324324 1
15 Cover 344230 1
16 Gasket 328731 1
17 Hexagon screw 940135 4
18 Spring washer 941907 4
19 Connecting rod 1696115 2
20 Bushing 1696116 2
21 Screw 1696117 2
22 Plug 1518780 2
23 Bearing shell 328739 4 Std
23 Bearing shell 328740 4 0,25mm u.s
23 Bearing shell 328741 4 0,50mm u.s
23 Bearing shell 328742 4 0,75mm u.s
24 Cylinder block 1696114 1
25 Valve seat 324343 2
26 Bushing 326832 2
27 Repair kit 276543 1
28 Guide 326839 1
29 Spring 324355 1
30 Bearing 344231 1
31 Guide 331878 2
32 Push rod 331877 2
33 Piston 331876 2
34 O-ring 326835 2
35 Ring 326834 2
36 Piston 1696119 2 Std D
36 Piston 1696120 2 0.10mm o.s
36 Piston 1696121 2 0.20mm o.s
36 Piston 1696122 2 0.30mm o.s
38 Piston ring kit 1696123 2 Std D
38 Piston ring kit 1696124 2 0.10mm o.s
38 Piston ring kit 1696125 2 0.20mm o.s
38 Piston ring kit 1696126 2 0.30mm o.s
39 Gasket 1696118 1 (328763)
40 Hexagon screw 940115 6
41 Spring washer 941908 6
42 Cylinder head 1696112 1
43 Valve disc 328757 2
44 Link 1518755 2
45 Plug 328758 2
49 Inlet valve 324344 2
50 Guide 328756 2
51 Spring 324346 2
52 Gasket 1518835 1
53 Hexagon screw 940136 8
54 Plug 325865 1
54 Plug 352970 1
Item Part Name Part No.
45 Plug 328758 328758

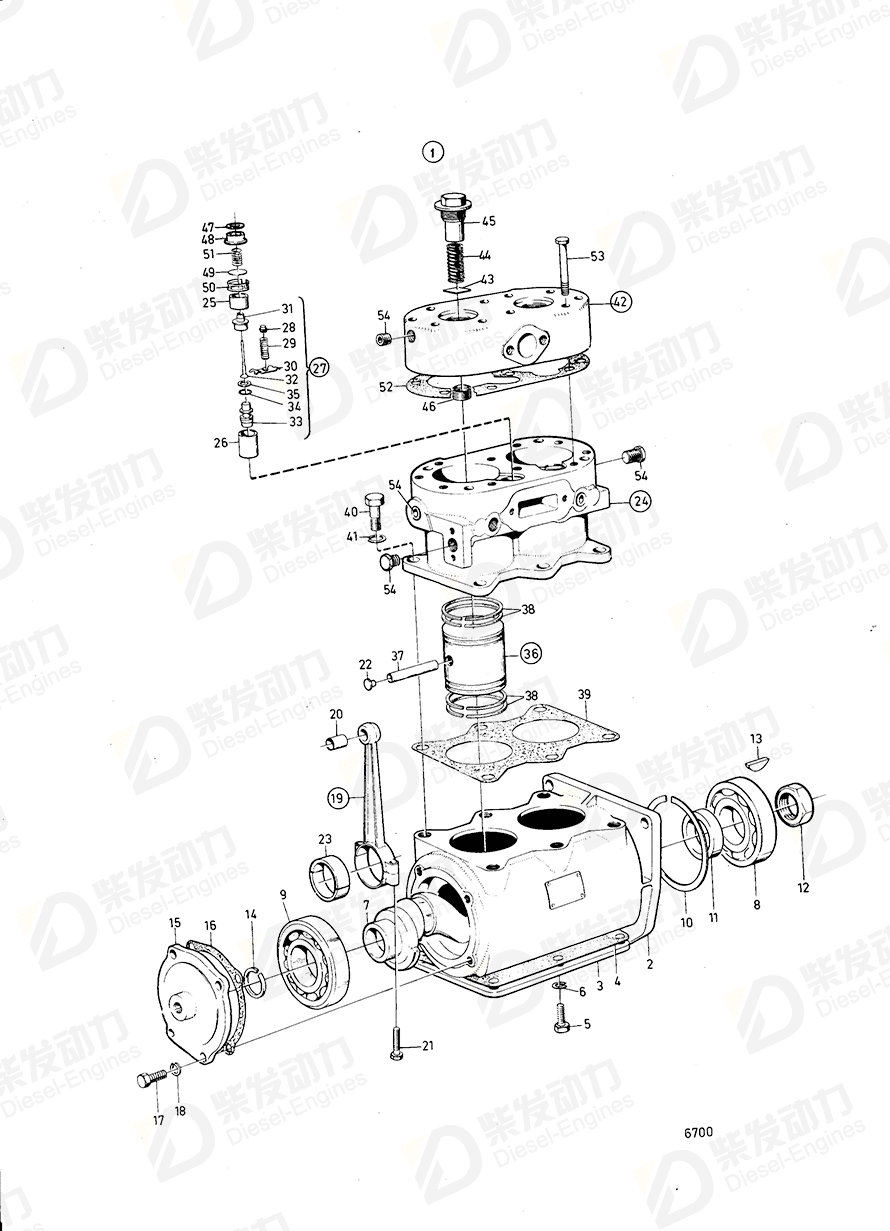

volvo penta Plug 328758 Drawing
Details
Application Air Compressor
Air Compressor: 351453
