Plug 352970

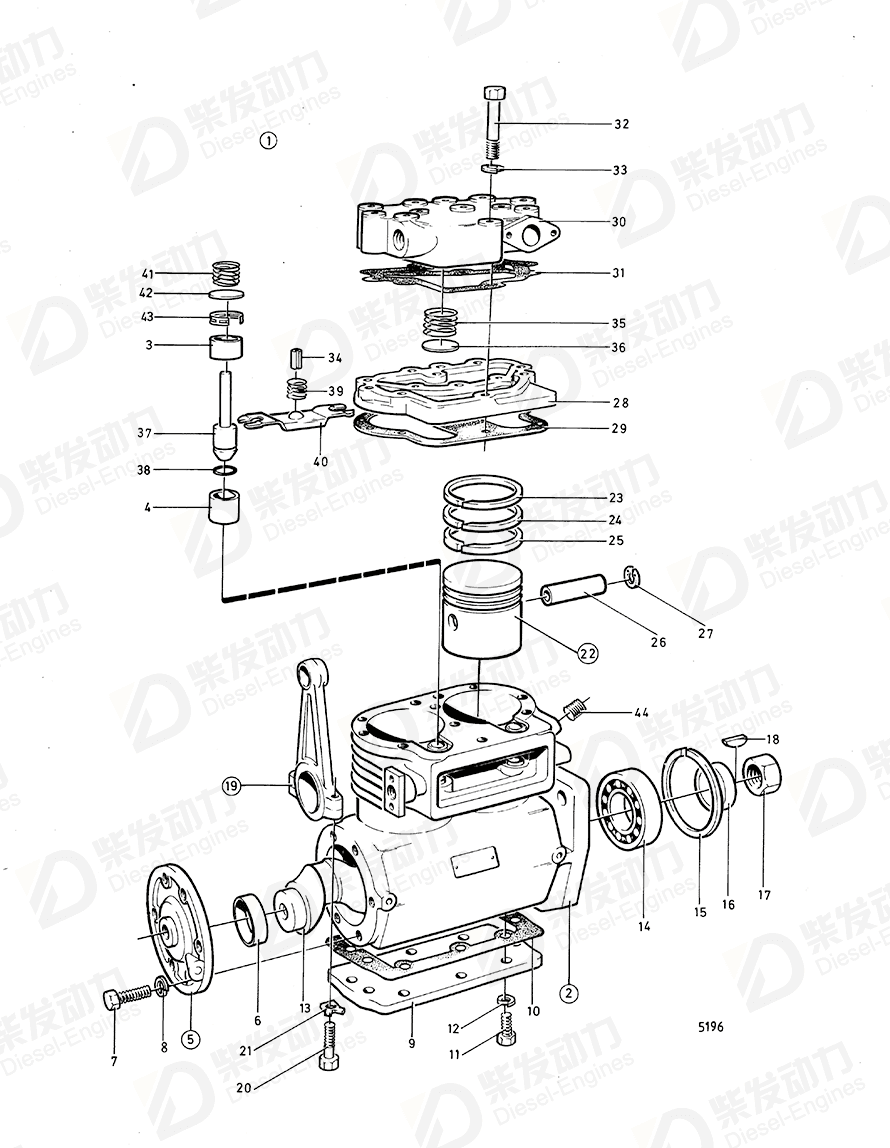

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1570594 | 1 | Repl by 1590264 |
| 3 | Valve seat | 1518347 | 2 | |
| 4 | Bushing | 1518348 | 2 | |
| 5 | Cover | 1518349 | 1 | |
| 6 | Bushing | 1518350 | 1 | |
| 9 | Cover | 1518351 | 1 | |
| 10 | Gasket | 1695152 | 1 | (1518352) |
| 13 | Crankshaft | 1518353 | 1 | |
| 14 | Ball bearing | 11014 | 1 | |
| 15 | Lock ring | 346520 | 1 | |
| 16 | Spacer ring | 1518354 | 1 | |
| 17 | Nut | 1518355 | 1 | |
| 19 | Connecting rod | 1518356 | 2 | |
| 20 | Screw | 1518357 | 4 | |
| 21 | Lock washer | 328738 | 4 | |
| 22 | Piston | 1518358 | 2 | Std D |
| 22 | Piston | 1518359 | 2 | 0,25mm o.s |
| 22 | Piston | 1518360 | 2 | 0,50mm o.s |
| 23 | Piston ring | 1518361 | 2 | Std D |
| 23 | Piston ring | 1518362 | 2 | 0,25mm o.s |
| 23 | Piston ring | 1518363 | 2 | 0,50mm o.s |
| 24 | Piston ring | 1518364 | 2 | Std D |
| 24 | Piston ring | 1518365 | 2 | 0,25mm o.s |
| 24 | Piston ring | 1518366 | 2 | 0,50mm o.s |
| 25 | Oil scraper ring | 1518367 | 2 | Std D |
| 25 | Oil scraper ring | 1518368 | 2 | 0,25mm o.s |
| 25 | Piston ring | 1518369 | 2 | 0,50mm o.s |
| 27 | Lock ring | 1518371 | 4 | |
| 28 | Plate | 1518372 | 1 | |
| 29 | Gasket | 1518373 | 1 | |
| 30 | Cylinder head | 1518374 | 1 | |
| 31 | Gasket | 1518375 | 1 | |
| 32 | Screw | 1518376 | 11 | |
| 32 | Screw | 1518377 | 2 | |
| 34 | Lock pin | 1518378 | 1 | |
| 40 | Pressure plate | 1518379 | 1 | |
| 44 | Repair kit | 272665 | 1 | |
| 44 | Plug | 352970 | 1 |
| Item | Part Name | Part No. |
| 44 | Plug 352970 | 352970 |
| Details | |
| Application | Air Compressor AIR COMPRESSOR: 1599919 AIR COMPRESSOR: 1611815 |
