Plug 352971

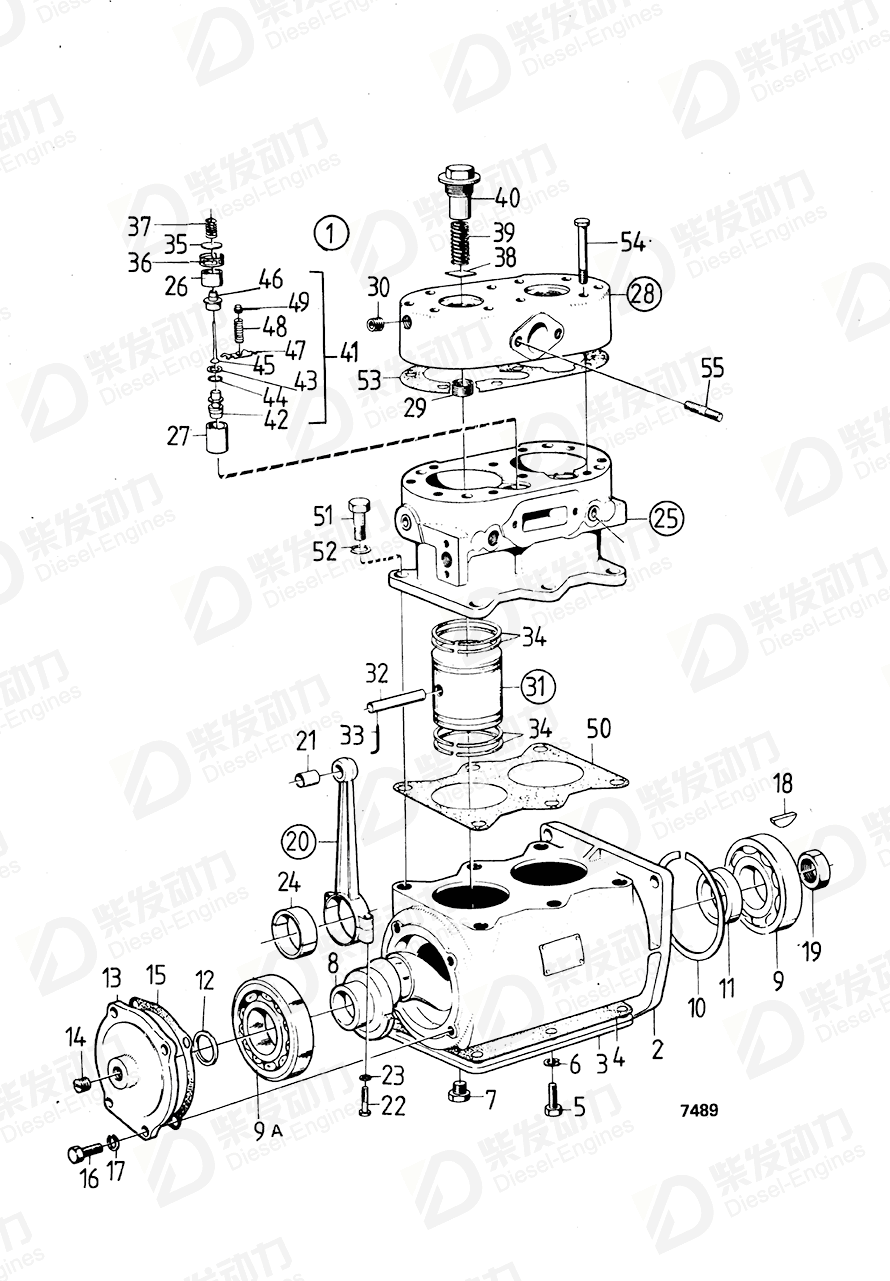

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 351453 | 1 | |
| 2 | Crankcase | 346935 | 1 | |
| 3 | Cover | 346517 | 1 | |
| 4 | Gasket | 346938 | 1 | |
| 5 | Hexagon screw | 940100 | 6 | |
| 6 | Spring washer | 941906 | 6 | |
| 7 | Plug | 337793 | 1 | |
| 8 | Crankshaft | 347146 | 1 | |
| 9 | Ball bearing | 11014 | 2 | |
| 10 | Lock ring | 346520 | 1 | |
| 11 | Spacer ring | 346914 | 1 | |
| 12 | Sealing ring | 324324 | 1 | |
| 13 | Cover | 344230 | 1 | |
| 14 | Plug | 325865 | 1 | |
| 15 | Gasket | 328731 | 1 | |
| 16 | Hexagon screw | 940135 | 4 | |
| 17 | Spring washer | 941907 | 4 | |
| 18 | Key | 1517545 | 1 | (346916) |
| 19 | Nut | 346918 | 1 | |
| 20 | Connecting rod | 346940 | 2 | |
| 21 | Bushing | 328736 | 2 | |
| 21 | Bushing | 352973 | 2 | Early type |
| 22 | Screw | 328737 | 4 | |
| 23 | Lock washer | 328738 | 4 | |
| 24 | Bearing shell | 346942 | 4 | Std D |
| 24 | Bearing shell | 346943 | 4 | 0.25mm u.s |
| 24 | Bearing shell | 346944 | 4 | 0.50mm u.s |
| 25 | Cylinder block | 328743 | 1 | |
| 26 | Valve seat | 324343 | 2 | |
| 27 | Bushing | 326832 | 2 | |
| 28 | Cylinder head | 328744 | 1 | |
| 29 | Valve seat | 328745 | 1 | |
| 30 | Plug | 352971 | 2 | |
| 31 | Piston | 328748 | 2 | 0.50mm o.s later prod |
| 31 | Piston | 328749 | 2 | 0.75mm o.s later prod |
| 31 | Piston | 1696460 | 2 | Std D. late type |
| 31 | Piston | 1696461 | 2 | 0.25mm o.s. later prod |
| 32 | Gudgeon pin | 328750 | 2 | Std |
| 32 | Gudgeon pin | 328751 | 2 | 0.005''O.S |
| 33 | Locking wire | 324338 | 2 | |
| 34 | Piston ring kit | 272560 | 1 | Std D early type |
| 34 | Piston ring kit | 272561 | 1 | 0.25mm o.s earlier prod |
| 34 | Piston ring kit | 272562 | 1 | 0.50mm o.s earlier prod |
| 34 | Piston ring kit | 328752 | 1 | Std D late type |
| 34 | Piston ring kit | 328753 | 1 | 0.25mm o.s later prod |
| 34 | Piston ring kit | 328754 | 1 | 0.50mm o.s later prod |
| 35 | Inlet valve | 324344 | 2 | |
| 36 | Guide | 328756 | 2 | |
| 37 | Spring | 324346 | 2 | |
| 38 | Valve disc | 328757 | 2 | |
| 39 | Spring | 324349 | 2 | |
| 40 | Plug | 328758 | 2 | |
| 41 | Repair kit | 276543 | 1 | |
| 42 | Piston | 331876 | 2 | |
| 43 | Ring | 326834 | 2 | |
| 44 | O-ring | 326835 | 2 | |
| 45 | Push rod | 331877 | 2 | |
| 46 | Guide | 331878 | 2 | |
| 47 | Bearing | 344231 | 1 | |
| 48 | Spring | 324355 | 1 | |
| 49 | Guide | 326839 | 1 | |
| 50 | Gasket | 1696118 | 1 | (328763) |
| 51 | Hexagon screw | 940115 | 6 | |
| 52 | Spring washer | 941908 | 6 | |
| 53 | Gasket | 328764 | 1 | |
| 54 | Hexagon screw | 940136 | 10 | |
| 55 | Stud | 344232 | 2 | |
| 9A | Ball bearing | 183260 | 1 |
| Item | Part Name | Part No. |
| 30 | Plug 352971 | 352971 |
| Details | |
| Application | Air Compressor AIR COMPRESSOR: 1599919 AIR COMPRESSOR: 1611815 Air Compressor: 351450 Air Compressor: 351453 |
| Specification | |
| Descriptions | 3/8 |
