Plug 3885237

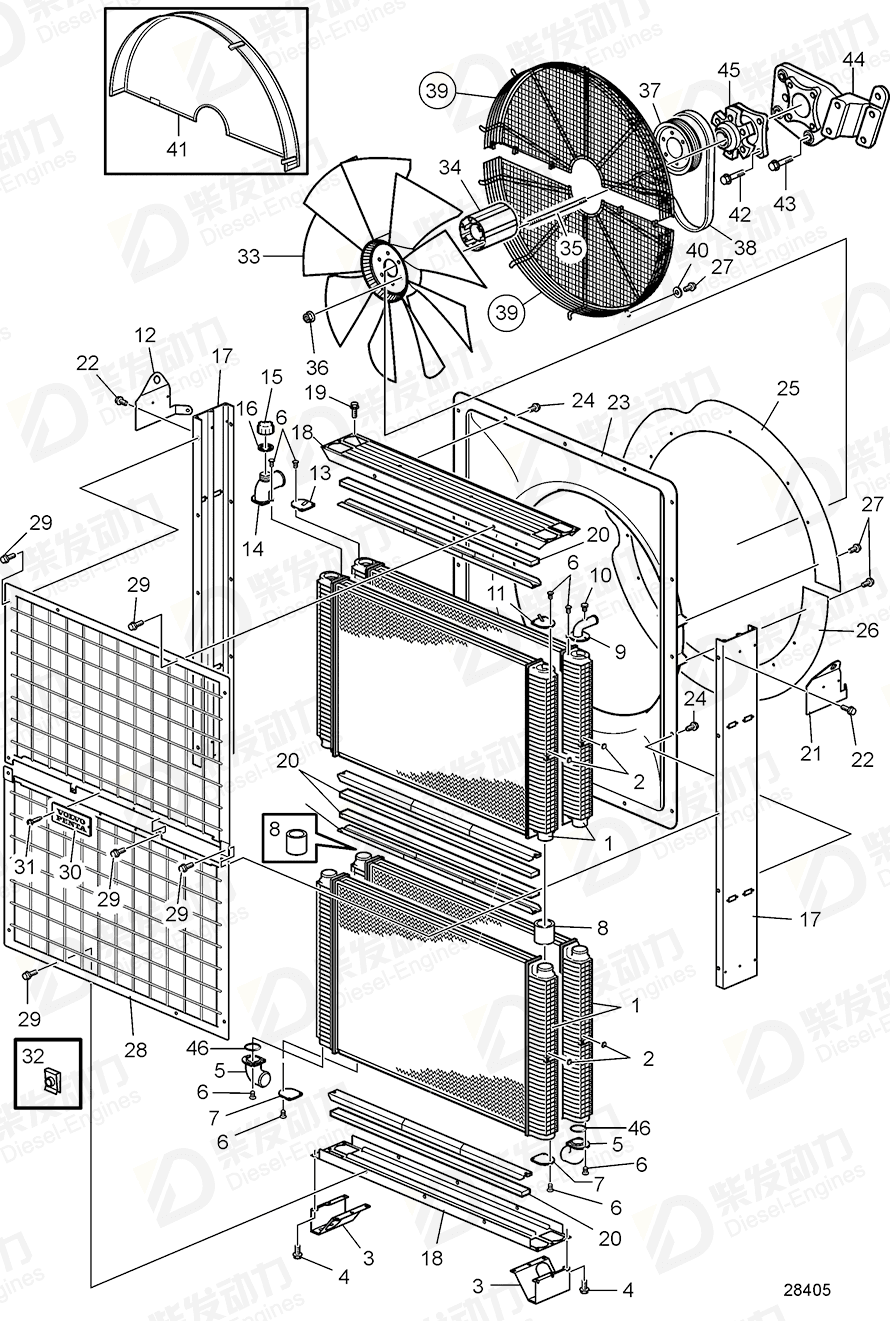

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Radiator |
3885432 |
4 |
|
| 2 |
Rubber damper |
3595095 |
16 |
|
| 3 |
Frame profile |
3886710 |
2 |
|
| 4 |
Flange screw |
946173 |
12 |
|
| 5 |
Hose connection |
3885183 |
2 |
|
| 6 |
Hex. socket screw |
942001 |
40 |
|
| 7 |
Lid |
3885187 |
1 |
|
| 8 |
Hose |
3885228 |
2 |
|
| 9 |
Hose connection |
3885186 |
1 |
|
| 10 |
Plug |
3885237 |
1 |
|
| 11 |
Lid |
3885189 |
1 |
|
| 12 |
Lifting eye |
3885361 |
1 |
|
| 13 |
Lid |
3885189 |
1 |
|
| 14 |
Hose connection |
3885188 |
1 |
|
| 15 |
Filler cap |
21927625 |
1 |
|
| 16 |
Gasket |
21960297 |
1 |
|
| 17 |
Frame profile |
3885234 |
2 |
|
| 18 |
Frame profile |
3589214 |
1 |
Lower |
| 18 |
Frame profile |
3885235 |
1 |
Upper |
| 19 |
Flange screw |
946173 |
20 |
|
| 20 |
Sealing strip |
3842333 |
8 |
|
| 21 |
Lifting eye |
3885363 |
1 |
|
| 22 |
Flange screw |
946440 |
6 |
|
| 23 |
Fan shroud |
3589243 |
1 |
|
| 24 |
Flange screw |
946440 |
16 |
|
| 25 |
Fan ring |
3887347 |
1 |
|
| 26 |
Fan ring |
21109902 |
1 |
|
| 27 |
Flange screw |
3842325 |
14 |
|
| 28 |
Radiator grille |
3888997 |
2 |
|
| 29 |
Flange screw |
946440 |
12 |
|
| 30 |
Emblem |
846118 |
1 |
|
| 31 |
Screw |
941651 |
2 |
|
| 32 |
Clip |
3842114 |
1 |
|
| 33 |
Fan |
3819799 |
1 |
|
| 34 |
Fan hub |
21418129 |
1 |
L=210mm |
| 35 |
Stud |
981952 |
6 |
L=255mm |
| 36 |
Flange nut |
971095 |
6 |
Alt |
| 37 |
Pulley |
3829958 |
1 |
Ratio 1:0,99 |
| 38 |
V-ribbed belt |
3883978 |
1 |
|
| 39 |
Fan guard |
21301064 |
2 |
|
| 40 |
Washer |
976944 |
10 |
|
| 41 |
Air filter |
22226902 |
2 |
|
| 42 |
Flange screw |
946752 |
4 |
|
| 43 |
Flange screw |
21344756 |
5 |
|
| 44 |
Bracket |
3830000 |
1 |
|
| 45 |
Fan hub |
21924453 |
1 |
|
| 46 |
O-ring |
975675 |
8 |
|
| Item |
Part Name |
Part No. |
| 10 |
Plug 3885237 |
3885237 |
| Details |
| Engine model |
TWD1643GE, TWD1663GE |
| Application |
Radiator and Fan SN-2016076784 |
