Plug 420809

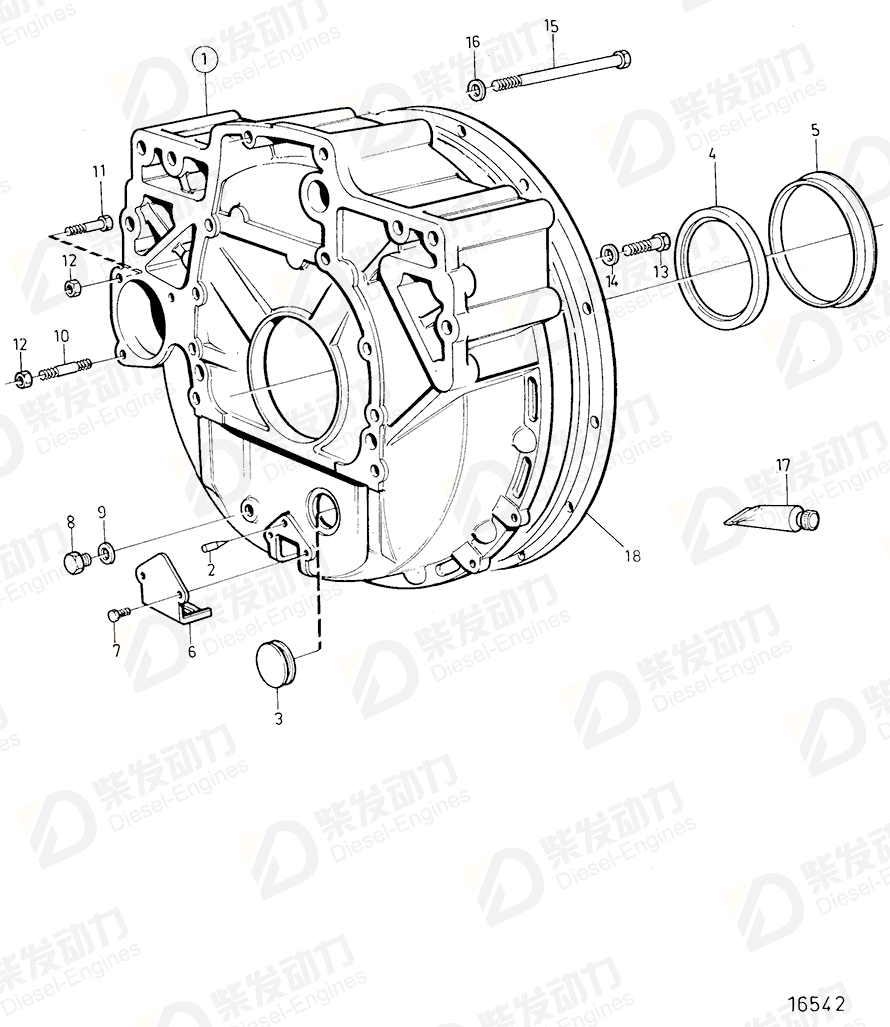

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 420674 | 1 | For MT643 with flywheel housing of vehichle type., For ZF WG with flywheel housing of vehicle type., SN-2061106089 |
| 1 | Flywheel housing | 420890 | 1 | For MT643 with flywheel housing of vehichle type., For ZF WG with flywheel housing of vehicle type., SN2061106090- |
| 1 | Flywheel housing | 477782 | 1 | Alt, for 477049 |
| 1 | Flywheel housing | 3826499 | 1 | For Clark 28000 and 32000. |
| 2 | Setting indicator | 467077 | 1 | Repl early production marked: 5-4-3-2-1-A-B.If other marking is stamped 4PCS 829308 have to be used. |
| 3 | Plug | 420809 | 1 | |
| 4 | Crankshaft seal | 477119 | 1 | (3825165) |
| 5 | Protecting plate | 466963 | 1 | |
| 6 | Breather cap | 417429 | 1 | |
| 7 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 8 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 8 | Plug | 981193 | 1 | |
| 9 | Gasket | 947625 | 1 | |
| 9 | Gasket | 969011 | 1 | |
| 10 | Stud | 953069 | 2 | |
| 11 | Flange screw | 965221 | 1 | |
| 12 | Flange nut | 971095 | 3 | Alt |
| 13 | Flange screw | 966361 | 6 | L=55mm |
| 13 | Flange screw | 968753 | 2 | L=75mm |
| 15 | Hexagon screw | 971011 | 2 | L=140mm |
| 15 | Hexagon screw | 971012 | 2 | M14x150mm |
| 16 | Spring washer | 941911 | 2 | |
| 17 | Sealant | 1161231 | 1 | 304ml |
| 18 | Spacer ring | 803172 | 1 | TD CO gear |
| Item | Part Name | Part No. |
| 3 | Plug 420809 | 420809 |
| Details | |
| Engine model | TD610M, TD630ME, TWD630ME TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD71A, TID71A TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD730ME TWD730ME, TWD731ME TWD740VE |
| Application | Flywheel and Flywheel Housing for Allison MD3060, SAE 2, Vehicle Type Flywheel and Flywheel Housing for Allison MD3060, Vehicle Type Flywheel and Flywheel Housing for Clark 28000/32000 with Converter 270/320, Vehicle Type Flywheel and Flywheel Housing for ZF WG200 with Converter 340, Vehicle Type Flywheel and Flywheel Housing SAE 2 for Allison MT643, MT653, Vehicle Type Flywheel Housing of Vehicle Type *för&ZF&WG180 och*Allison&MT643 Flywheel Housing SAE 2, Vehicle Type Flywheel Housing,Vehicle Type Flywheel Housing,Vehicle Type: A Flywheel Housing,Vehicle Type: B Flywheel Housing,Vehicle Type: C |
