Plug 422369

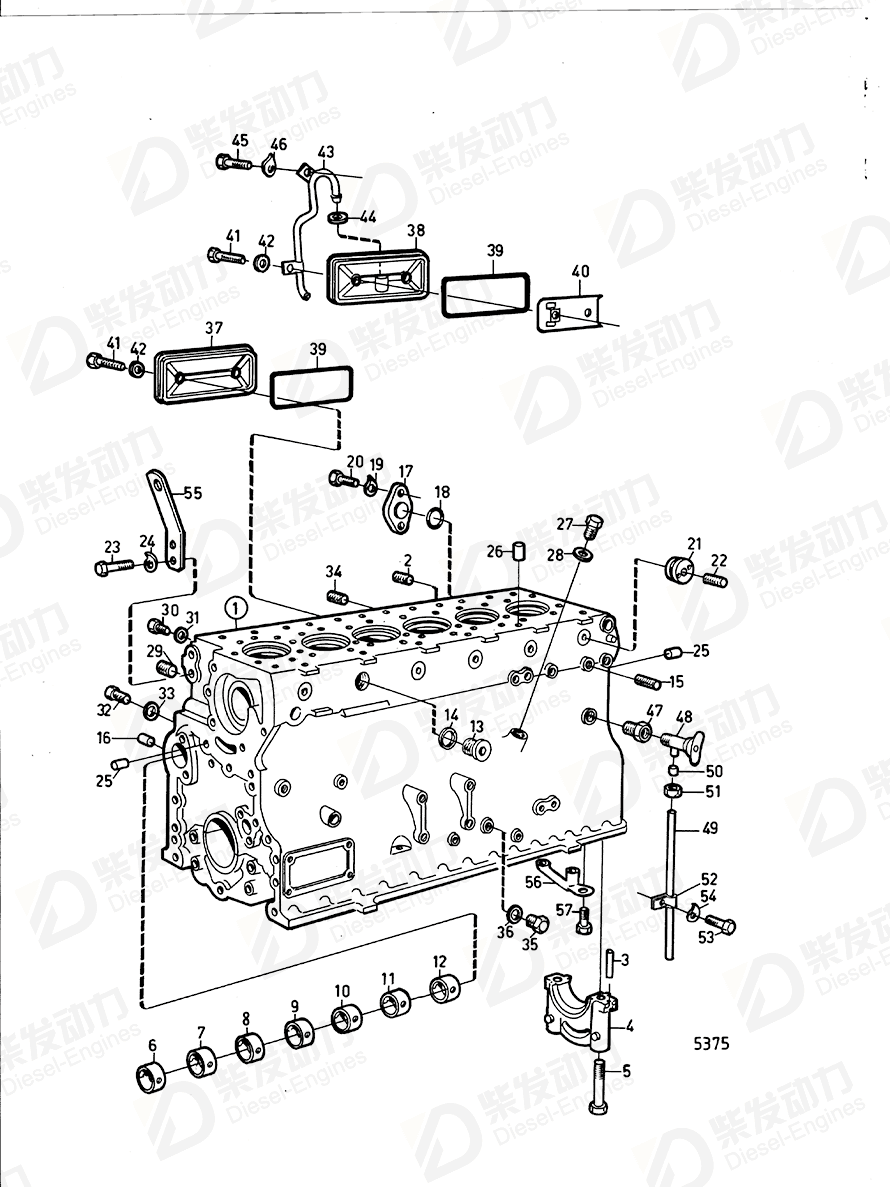

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 468702 | 1 | Spec. 9881, 9890. 9919, 9958, 9960., Replaced by 478990 |
| 1 | Cylinder block | 478990 | 1 | Spare part design., SNXXXXXXXXXX/199853- |
| 2 | Plug | 952075 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 5 | Flange screw | 423444 | 14 | |
| 6 | Bushing | 422076 | 1 | |
| 7 | Bushing | 422077 | 1 | |
| 8 | Bushing | 422078 | 1 | |
| 9 | Bushing | 422079 | 1 | |
| 10 | Bushing | 422080 | 1 | |
| 11 | Bushing | 422081 | 1 | |
| 12 | Bushing | 422082 | 1 | |
| 13 | Plug | 467367 | 6 | |
| 14 | Gasket | 469328 | 6 | |
| 15 | Plug | 942734 | 2 | |
| 16 | Plug | 422369 | 7 | |
| 18 | O-ring | 949657 | 1 | (925060) |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 21 | Plug | 821335 | 1 | |
| 22 | Plug | 952077 | 1 | |
| 23 | Hexagon screw | 955561 | 2 | |
| 24 | Spring washer | 940280 | 2 | |
| 25 | Cap plug | 955082 | 2 | |
| 25 | Cap plug | 955083 | 3 | |
| 26 | Pin | 950543 | 12 | |
| 27 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 28 | Gasket | 947621 | 1 | |
| 29 | Nipple | 948503 | 2 | |
| 29 | Plug | 952077 | 2 | |
| 30 | Plug | 16318 | 2 | |
| 31 | Gasket | 907132 | 2 | |
| 32 | Plug | 190798 | 1 | |
| 33 | Gasket | 18818 | 1 | |
| 34 | Plug | 952075 | 1 | |
| 35 | Plug | 16318 | 3 | |
| 36 | Gasket | 907132 | 3 | |
| 37 | Inspection cover | 423120 | 2 | |
| 38 | Inspection cover | 423121 | 1 | |
| 39 | Gasket | 467409 | 3 | |
| 40 | Splash plate | 422542 | 1 | |
| 41 | Shoulder screw | 422541 | 6 | |
| 42 | Sealing ring | 424342 | 6 | |
| 43 | Tube | 467090 | 1 | |
| 44 | Sealing ring | 421158 | 1 | |
| 45 | Hexagon screw | 955523 | 2 | |
| 46 | Spring washer | 941907 | 2 | |
| 47 | Reduction nipple | 190130 | 1 | |
| 48 | Drain cock | 820436 | 1 | |
| 49 | Drain tube | 821889 | 1 | |
| 50 | Fitting | 954365 | 1 | |
| 51 | Fitting nut | 954357 | 1 | |
| 52 | Clamp | 942400 | 1 |
| Item | Part Name | Part No. |
| 16 | Plug 422369 | 422369 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D70B D70CHC D70CRC DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P, TWD1210P, TWD1211P TAD730G TAD730P TAD730V TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030VE, TAD1030V, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121CHC, TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GP-87 TD45B TD60A TD60B TD60D TD60D-83 TD610G, TWD610G TD610M TD610V TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD630ME TD630VE TD640VE TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G, TWD710G TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID60D TID60DG TID61AG TID70G TID71A, TID71AG, TID71AP TWD1030ME TWD1210G, TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block and Related Part: A Cylinder Block and Related Part: B Cylinder Block and Related Parts Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block, Earlier Production Cylinder Block: 422960 Cylinder Block: 479650 Cylinder Block: 479752 CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- |
| Specification | |
| Descriptions | For 471400, 477910 For 477990 |
