Plug 467365

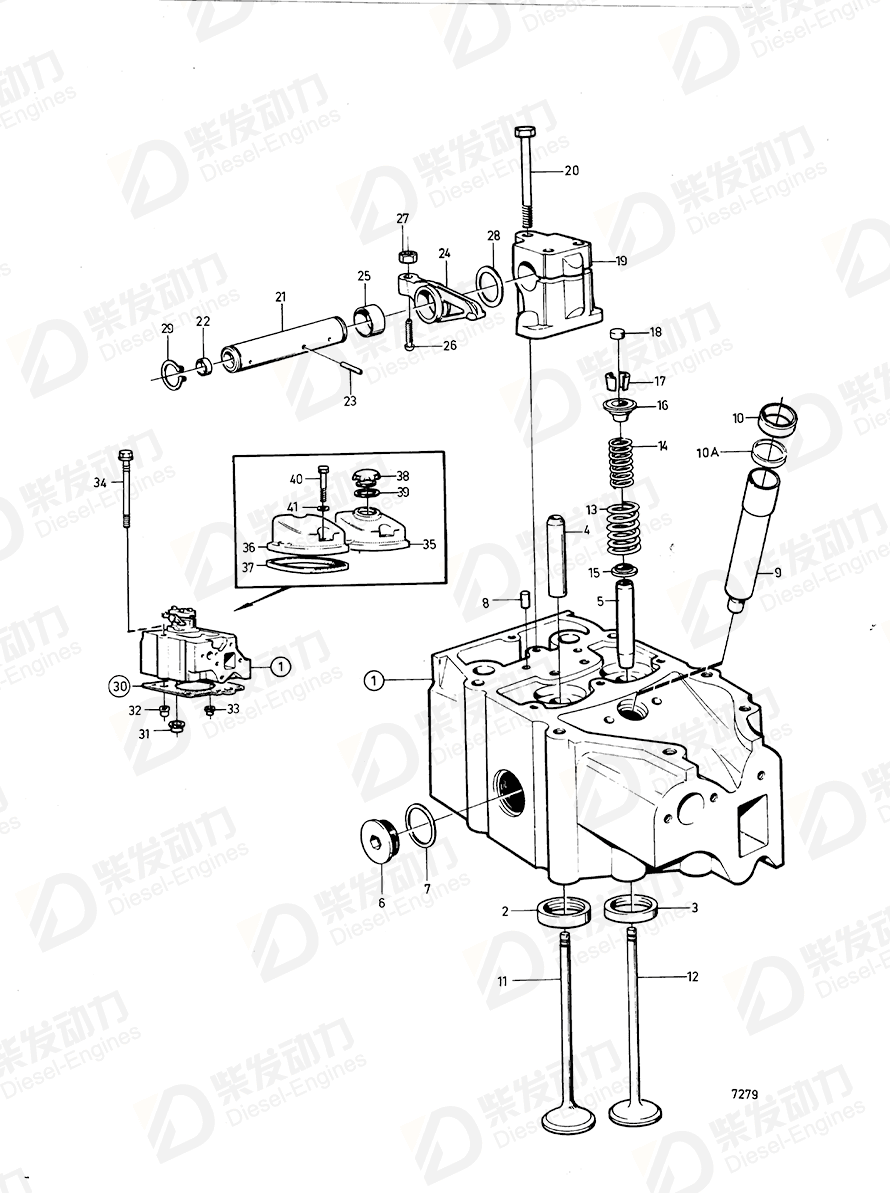

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803041 | 1 | (470244) |
| 2 | Valve seat, intake | 423011 | 6 | Std |
| 2 | Valve seat, intake | 423208 | 6 | 0,20mm o.s |
| 3 | Valve seat, exhaust | 468448 | 6 | Std |
| 3 | Valve seat, exhaust | 468449 | 6 | 0,20mm o.s |
| 4 | Valve guide, intake | 422320 | 6 | |
| 5 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 6 | Plug | 467365 | 12 | |
| 7 | Gasket | 468461 | 12 | |
| 8 | Pin | 950543 | 12 | |
| 9 | Sleeve | 470247 | 6 | |
| 10 | Ring | 466420 | 6 | |
| 11 | Inlet valve | 468302 | 6 | Replaced by 1pc 468302, 1pc 468304, 1pc 468305. |
| 12 | Exhaust valve | 468303 | 6 | Replaced by 1pc 468303, 1pc 468304, 1pc 468305. |
| 13 | Valve spring, | 468067 | 12 | MO609/XXXX-., Late type |
| 14 | Valve spring, i | 468066 | 12 | MO609/XXXX-., Late type |
| 15 | Valve spring washer, lower | 468065 | 12 | MO609/XXXX-., Late type |
| 16 | Valve spring washer | 468304 | 12 | |
| 17 | Valve cotter | 468305 | 24 | |
| 18 | Valve cap | 469365 | 12 | (417133) |
| 19 | Bearing bracket | 423266 | 6 | |
| 20 | Flange screw | 423331 | 18 | |
| 21 | Rocker arm shaft | 423267 | 6 | |
| 22 | Cap plug | 946778 | 12 | |
| 23 | Pin | 950499 | 6 | |
| 24 | Rocker arm | 423263 | 12 | |
| 25 | Bushing | 422066 | 12 | |
| 26 | Ball stud | 423058 | 12 | |
| 27 | Hexagon nut | 940175 | 12 | |
| 28 | Washer | 423269 | 12 | |
| 29 | Retaining ring | 914459 | 12 | |
| 30 | Cylinder head gasket | 275548 | 6 | |
| 31 | Sealing ring | 423326 | 12 | |
| 32 | Sealing ring | 422415 | 12 | D=18mm |
| 33 | Sealing ring | 422413 | 6 | D=11mm |
| 34 | Flange screw | 470261 | 48 | Late type |
| 35 | Cover | 423404 | 1 | |
| 36 | Cover | 423403 | 5 | |
| 37 | Gasket | 468963 | 6 | (468352) |
| 38 | Oil filler cap | 421753 | 1 | |
| 39 | Gasket | 940096 | 1 | |
| 40 | Hexagon screw | 955527 | 12 | |
| 41 | Gasket | 942580 | 12 | |
| 10A | Sealing ring | 466405 | 6 |
| Item | Part Name | Part No. |
| 6 | Plug 467365 | 467365 |
| Details | |
| Engine model | D100A, TD100A D100B D100BHC, D100BRC D120A TAD1030G TAD1030G, TD1010G, TWD1010G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100AHC, TD100ARC TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G, TD120GG TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TD121CHC TD121CRC TD121G-87, TD121GG-87, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87, TWD1210P, TWD1211P TD45B TID120FG TID120HPP TID121FG TWD1030ME TWD1230ME |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D Flywheel Housing Flywheel Housing: A Flywheel Housing: B Flywheel Housing: C |
| Specification | |
| Descriptions | (467714) Early type Later prod SN-2100287585 |
