Plug 480107

Plug 480107

0 reviews Write a review
  • Brandsvolvo penta
  • Part No.: 480107
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Injection pump 784639 1
2 Pump housing 830675 1
3 Bushing 480103 1
13 Washer 363568 4 TH = 4.1 MM
14 Pump element 6212447 4
15 Spring 480181 4
16 Seat 480187 4 TH = 2.1 MM
16 Spring disc 830699 4 TH = 0.7mm
16 Spring disc 830700 4 TH = 0.8mm
16 Spring disc 830701 4 TH = 1.0 MM
16 Spring disc 830702 4 TH = 1.1 MM
16 Spring disc 830703 4 TH = 1.3mm
16 Spring disc 830704 4 TH = 1.4 MM
16 Spring disc 830705 4 TH = 1.6 MM
16 Spring disc 830706 4 TH = 1.7 MM
16 Spring disc 830707 4 TH = 1.9 MM
16 Spring disc 830708 4 TH = 2.0 MM
20 Delivery valve 363562 4
21 Sealing ring 363563 4
22 O-ring 363564 4
23 Spring 356082 4
24 Plug 356083 4
25 Retainer 363565 4
28 Screw 956545 2
29 Spring washer 941905 7 Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX.
32 Nipple 363576 1
36 Hex. socket screw 956541 1
38 Screw 956545 8
39 Connector 6210962 1
40 Hexagon screw 940100 2
41 Spring washer 941906 2
42 Camshaft 363561 1
43 Pin 17133 1
45 Ball bearing 181444 2
46 Sealing ring 19946 2
49 Plate 363575 1
50 Stud 480196 2
51 Spring washer 941907 2
56 Thrust bearing 480134 1
67 Seal 943822 1
68 Gasket 957174 1 Replaced by 1pc 831656, 1pc 462623.
77 Lever 363559 1
78 Hex. socket screw 956541 1
79 Screw 956540 1
80 Spring 350456 1
82 Pin 350532 1
83 Roller 350531 2
86 Roller 363577 1
87 Hex. socket screw 956542 1
88 Spring washer 941905 1 Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX.
89 Spring 350526 1
91 Nut 950372 1
96 Screw 956540 1
98 Spring 363572 1
101 Hex. socket screw 956541 2
103 Screw 350546 2
104 Hexagon nut 955846 2
105 Spring washer 941906 4
106 Hexagon screw 955513 1
107 Screw 956554 1
108 Hatch 480117 1
111 Gasket 480118 1
114 Washer 353390 2
115 Hollow screw 363560 1
118 Shaft 350455 1
119 Key 350549 1
126 Screw 956543 1
128 Hexagon nut 955847 2
129 Pin 350502 1
131 Screw 956540 2
138 Hexagon nut 955847 2
140 Hexagon nut 955847 1
141 Hexagon nut 940154 1
142 Spring washer 940280 1
143 Gasket 818668 1
153 Plug 480107 2
Item Part Name Part No.
153 Plug 480107 480107

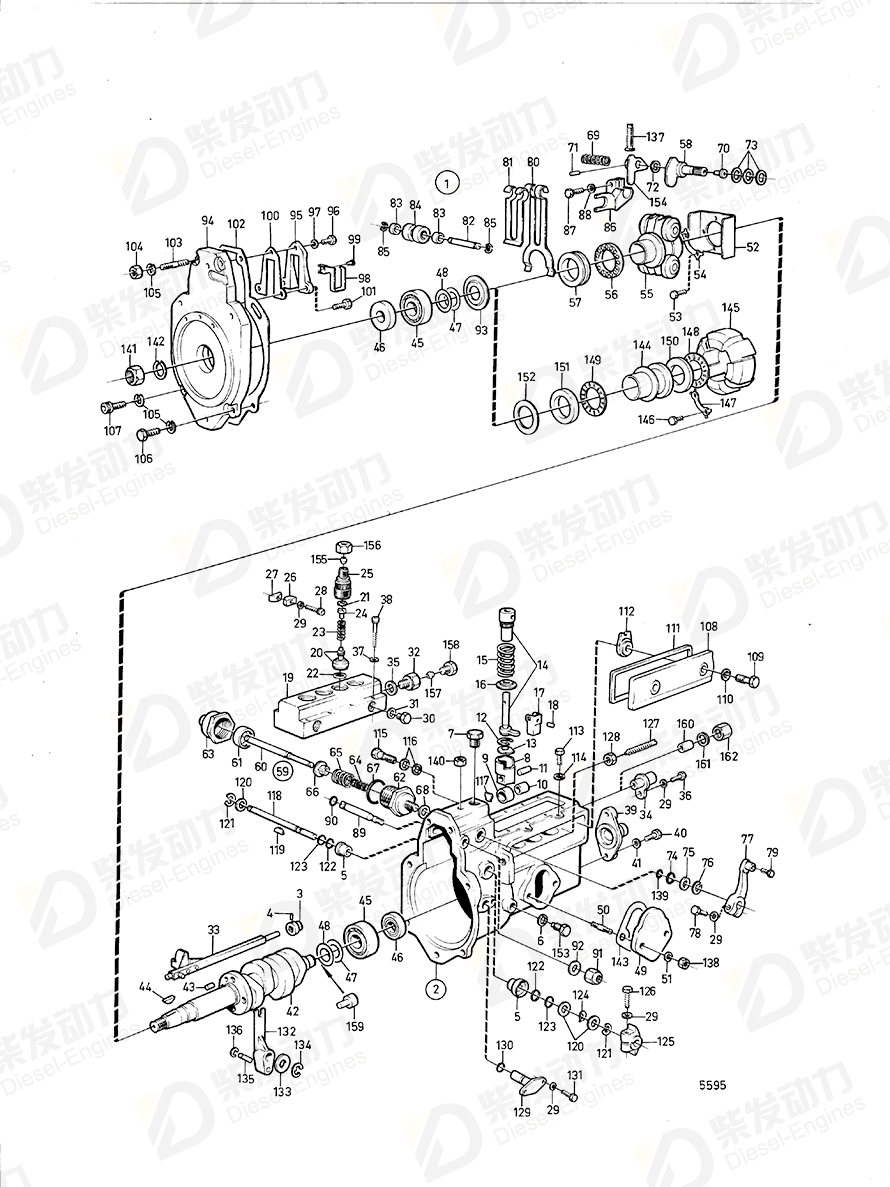

volvo penta Plug 480107 Drawing
Details
Application FUEL INJECTION PUMP: 4780491
FUEL INJECTION PUMP: 4880143
FUEL INJECTION PUMP: 784639
