Plug 6637599

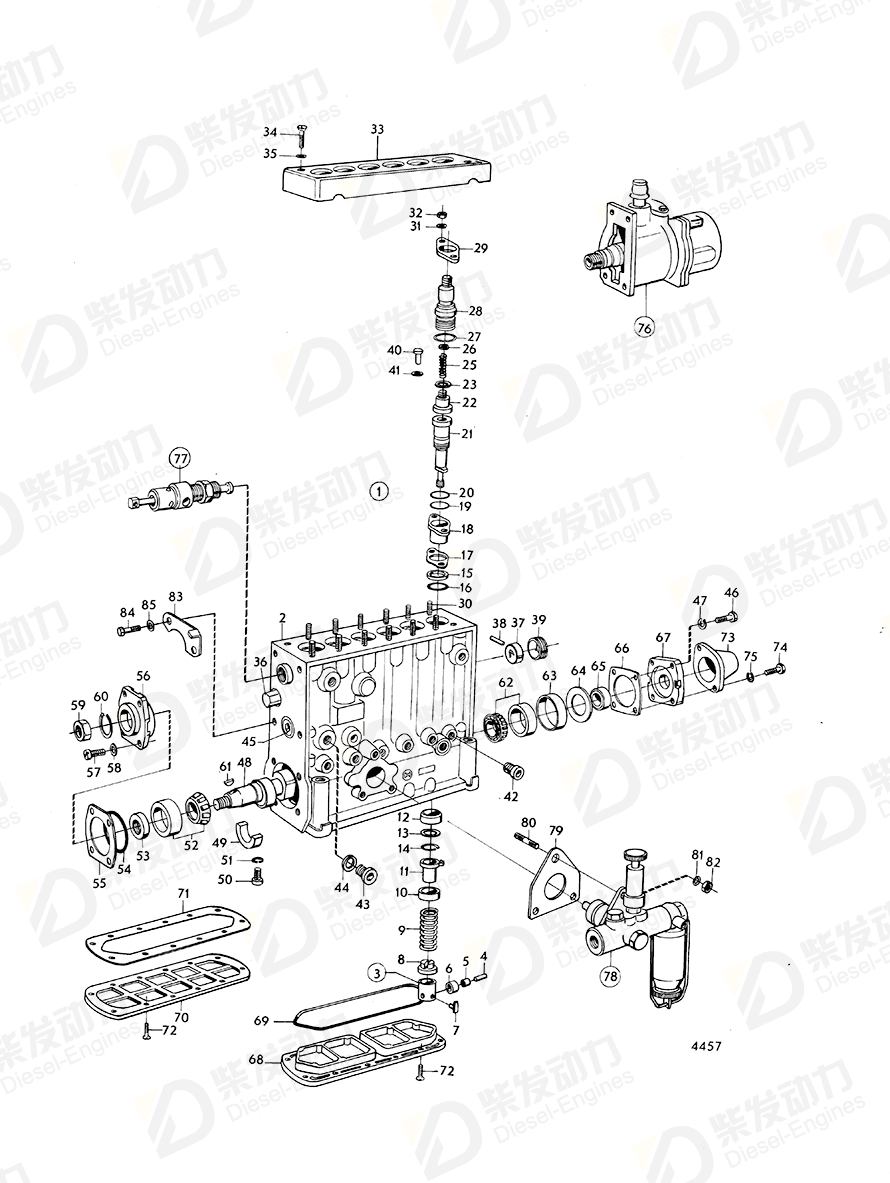

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 240405 | 1 | |
| 3 | Tappet | 239982 | 6 | |
| 4 | Bearing bolt | 240779 | 6 | |
| 5 | Bushing | 240780 | 6 | |
| 6 | Roller | 240781 | 6 | |
| 7 | Plate | 238379 | 6 | |
| 8 | Spring disc | 239986 | 6 | |
| 9 | Adjusting washer | 244085 | 6 | (239985) |
| 10 | Spring disc | 239984 | 6 | |
| 11 | Control sleeve | 240782 | 6 | |
| 12 | Cover | 239991 | 6 | |
| 13 | Washer | 241677 | 6 | |
| 14 | Lock ring | 239990 | 6 | |
| 15 | Spacer ring | 240003 | 6 | |
| 16 | Gasket | 240002 | 6 | |
| 17 | Gasket | 240004 | 1 | TH=0.40mm |
| 17 | Gasket | 240005 | 1 | TH=0.50mm |
| 17 | Gasket | 240006 | 1 | TH=0.60mm |
| 17 | Gasket | 240007 | 1 | TH=0.70mm |
| 17 | Gasket | 240008 | 1 | TH=0.80mm |
| 17 | Gasket | 240424 | 1 | TH=0.15mm |
| 19 | O-ring | 239989 | 6 | |
| 20 | O-ring | 240422 | 6 | |
| 21 | Pump element | 239988 | 6 | |
| 22 | Delivery valve | 240783 | 6 | |
| 23 | Sealing washer | 239993 | 6 | |
| 25 | Compression spring | 238309 | 6 | |
| 26 | Washer | 240784 | 6 | |
| 27 | O-ring | 240001 | 6 | |
| 28 | Delivery valve retai | 243771 | 6 | |
| 29 | Pressure plate | 240009 | 6 | |
| 30 | Screw | 240010 | 12 | |
| 31 | Spring washer | 941908 | 12 | |
| 32 | Hexagon nut | 955783 | 12 | |
| 33 | Cover | 240011 | 1 | |
| 34 | Cross recessed screw | 956209 | 2 | |
| 35 | Lock washer | 18891 | 2 | |
| 37 | Bushing | 240014 | 2 | |
| 38 | Spring pin | 244008 | 1 | (131015) |
| 40 | Plug | 238663 | 6 | |
| 41 | Adjusting washer | 238312 | 1 | TH=0.2mm |
| 41 | Adjusting washer | 238314 | 1 | TH=1.0mm |
| 42 | Plug | 240429 | 6 | |
| 43 | Plug | 6637599 | 1 | Early type |
| 44 | Gasket | 11996 | 1 | |
| 45 | Plug | 240121 | 1 | |
| 46 | Cross recessed screw | 956094 | 2 | |
| 47 | Spring washer | 941906 | 2 | |
| 48 | Camshaft | 240789 | 1 | |
| 49 | Bearing | 240426 | 1 | |
| 50 | Screw | 240427 | 2 | |
| 51 | Spring washer | 941906 | 2 | |
| 52 | Roller bearing | 240023 | 1 | |
| 53 | Sealing ring | 240022 | 1 | |
| 54 | Gasket | 239460 | 1 | |
| 55 | Shim | 240024 | 1 | TH=0.15mm |
| 55 | Shim | 240025 | 1 | TH=0.12mm |
| 55 | Shim | 240026 | 1 | TH=0.14mm |
| 55 | Shim | 240027 | 1 | TH=0.16mm |
| 55 | Shim | 240028 | 1 | TH=0.18mm |
| 55 | Shim | 240029 | 1 | TH=0.30mm |
| 55 | Shim | 240030 | 1 | TH=0.50mm |
| 56 | Bearing cover | 240021 | 1 | |
| 57 | Hexagon screw | 955269 | 2 | For 1570594 |
| 57 | Cross recessed screw | 956094 | 2 | |
| 58 | Spring washer | 941906 | 4 | |
| 59 | Hexagon nut | 955806 | 1 | |
| 60 | Spring washer | 941913 | 1 | |
| 61 | Key | 35168 | 1 | |
| 62 | Roller bearing | 240023 | 1 | |
| 63 | Ring | 240032 | 1 | |
| 64 | Shim | 240033 | 1 | TH=1.2mm |
| 64 | Shim | 240034 | 1 | TH=1.5mm |
| 64 | Shim | 240035 | 1 | TH=1.8mm |
| 64 | Shim | 240036 | 1 | TH=2.0mm |
| 65 | Sealing ring | 240811 | 1 | |
| 66 | Gasket | 240037 | 1 | |
| 67 | Cover | 240812 | 1 | |
| 70 | Cover | 240947 | 1 | |
| 71 | Gasket | 240948 | 1 | |
| 72 | Cross recessed screw | 956205 | 12 | |
| 74 | Cross recessed screw | 956097 | 2 | |
| 75 | Spring washer | 941906 | 2 | |
| 77 | Cold start device | 240804 | 1 | |
| 79 | Gasket | 239896 | 1 | |
| 80 | Stud | 130673 | 3 | |
| 81 | Spring washer | 941906 | 3 | |
| 82 | Hexagon nut | 955781 | 3 | |
| 83 | Indicator | 241647 | 1 | |
| 84 | Hexagon screw | 955269 | 2 | For 1570594 |
| 85 | Spring washer | 941906 | 2 |
| Item | Part Name | Part No. |
| 43 | Plug 6637599 | 6637599 |
| Details | |
| Application | Fuel Injection Pump Fuel Injection Pump: 240343 Fuel Injection Pump: 240406 Fuel Injection Pump: 241510 |
| Specification | |
| Descriptions | Early type |
