Volvo 8194469 Plug 8194469 Engine spare parts-Generator engine parts Mall

Plug 8194469

0 reviews Write a review

Qty

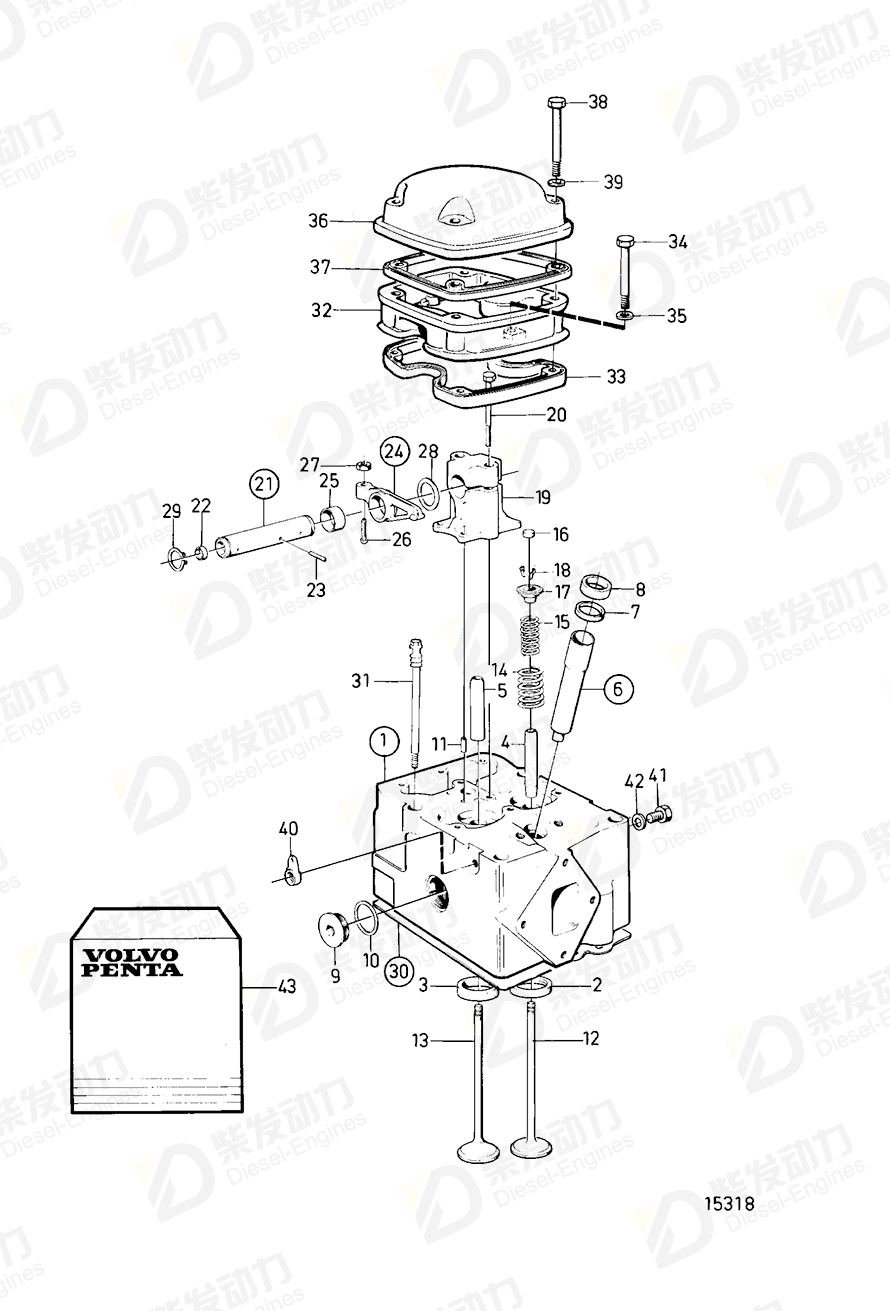

No.	Part Name	Part Number	Qty	Description
1	Cylinder head	3803039	6	SN-2100287585, (422831)
2	Valve seat, intake	467474	6	Std
2	Valve seat, intake	467590	6	0.20mm o.s
3	Valve seat, exhaust	1545885	6	O.S=0,20mm
3	Valve seat, exhaust	1545886	6	Std D
4	Valve guide, intake	422320	6
5	Valve guide, exhaust	1545135	6	(421297)
6	Socket set	270946	6
7	Sealing ring	466405	6
8	Ring	466420	6
9	Plug	467365	12
9	Plug	8194469	12	SN2100287586-
10	Gasket	469327	12
10	O-ring	949762	12
11	Pin	950543	12
12	Inlet valve, intake	479204	6
13	Exhaust valve, exhaust	467855	6
14	Valve spring	467334	12	Late type
15	Valve spring	467335	12	Late type
16	Valve cap	478074	12
17	Valve spring washer, upper	467506	12
18	Valve cotter	468305	24
19	Bearing bracket	422018	6
20	Flange screw	422428	12
21	Rocker arm shaft	422019	6
22	Cap plug	946778	12
23	Pin	950499	6
24	Rocker arm	422063	12
25	Bushing	422066	12
26	Ball stud	422993	12
27	Hexagon nut	940175	12
28	Washer	941488	12
29	Retaining ring	914459	12
30	Cylinder head gasket	270789	6
30	Sealing ring	422413	6	D=11mm
30	Sealing ring	422414	12	D=32mm
30	Sealing ring	422415	12	D=18mm
31	Flange screw	422086	24
32	Valve cover	469431	6
33	Gasket	424693	6
34	Hexagon screw	940159	12
35	Washer	955894	12
36	Valve cover	469432	6
37	Gasket	424694	6
38	Hexagon screw	955530	24
39	Spring washer	941907	24
40	Seal	479260	6	Included in gasket kit,decarbonizing 276035.
41	Plug	941876	1
42	Gasket	18666	1
43	De-carbonizing kit, decarbonizing	276035	1

Item	Part Name	Part No.
9	Plug 8194469	8194469

Details
Engine model	TAD1030G TD1010G, TWD1010G
Application	Cylinder Head: A Cylinder Head: B
Specification
Descriptions	SN2100287586-
