Plug 823369

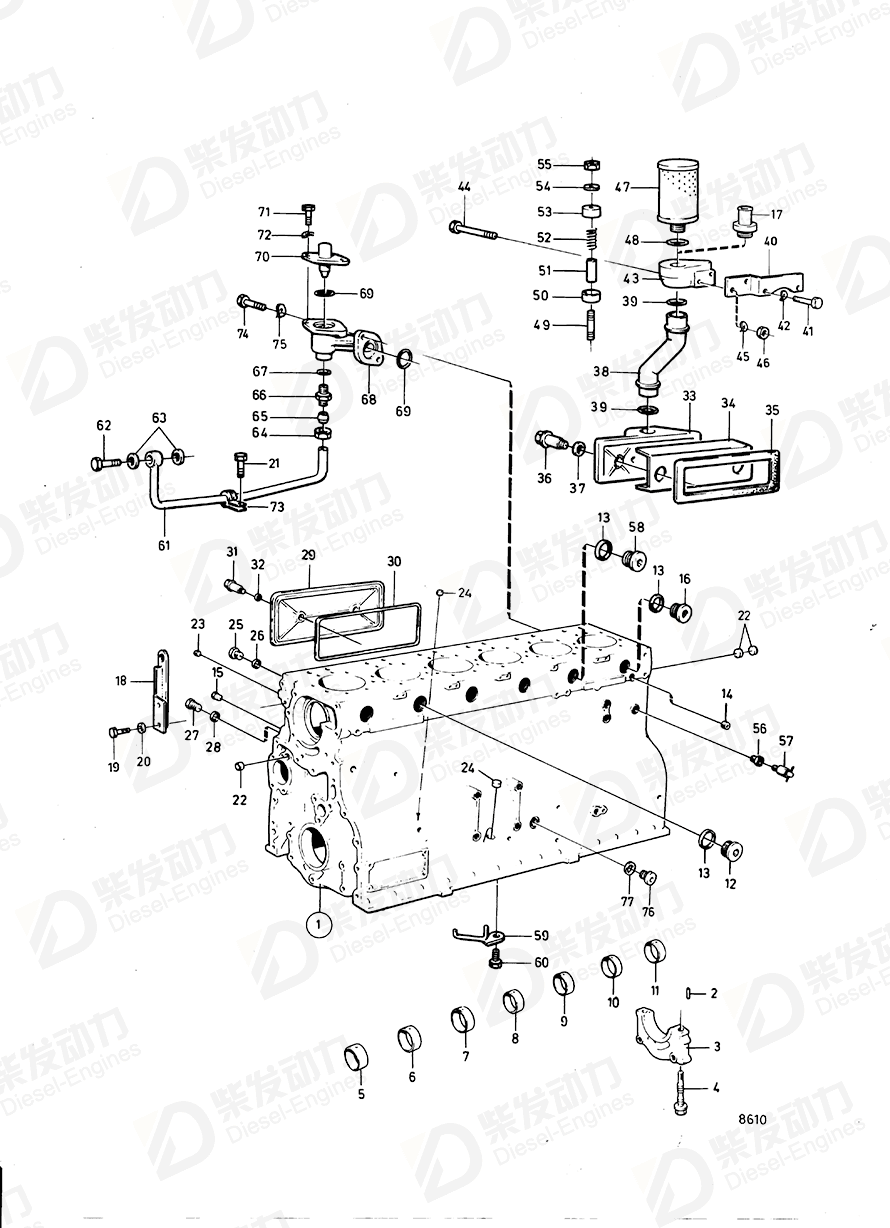

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 470130 | 1 | Spare part design., Replaced by 478990 |
| 2 | Pin | 422426 | 1 | |
| 4 | Flange screw | 423444 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 952075 | 2 | |
| 15 | Plug | 422369 | 7 | |
| 17 | Hose attachment | 845260 | 1 | Alt. |
| 19 | Hexagon screw | 955561 | 2 | |
| 20 | Spring washer | 940280 | 2 | |
| 21 | Hexagon screw | 940100 | 1 | |
| 22 | Cap plug | 955083 | 3 | |
| 23 | Plug | 952077 | 4 | |
| 24 | Cap plug | 955082 | 2 | |
| 25 | Plug | 16318 | 6 | |
| 26 | Gasket | 907132 | 6 | |
| 27 | Plug, 3/4-UNF | 948187 | 1 | |
| 28 | Gasket | 18818 | 1 | |
| 29 | Inspection cover | 423120 | 2 | |
| 30 | Gasket | 469823 | 2 | |
| 31 | Shoulder screw | 422541 | 4 | |
| 32 | Sealing ring | 469846 | 4 | |
| 33 | Inspection cover | 423121 | 1 | |
| 34 | Splash plate | 422542 | 1 | |
| 35 | Gasket | 469823 | 1 | |
| 36 | Shoulder screw | 422541 | 2 | |
| 37 | Sealing ring | 469846 | 2 | |
| 38 | Breather pipe | 843369 | 1 | |
| 39 | Sealing ring | 421158 | 2 | |
| 40 | Bracket | 843370 | 1 | |
| 41 | Hexagon screw | 940114 | 2 | |
| 42 | Spring washer | 942336 | 2 | |
| 43 | Connector housing | 843356 | 1 | |
| 44 | Hexagon screw | 955529 | 2 | |
| 45 | Spring washer | 941907 | 2 | |
| 46 | Hexagon nut | 955826 | 2 | |
| 47 | Filter | 876069 | 1 | |
| 48 | Gasket | 843449 | 1 | |
| 49 | Stud | 924058 | 1 | |
| 50 | Valve disc | 842972 | 1 | |
| 51 | Spacer sleeve | 842974 | 1 | |
| 52 | Spring | 843301 | 1 | |
| 53 | Protecting casing | 842975 | 1 | |
| 54 | Sealing ring | 421158 | 1 | |
| 55 | Lock nut | 963105 | 1 | |
| 56 | Reduction nipple | 190130 | 1 | |
| 57 | Shut-off cock | 949918 | 1 | (82745) |
| 58 | Plug | 823369 | 1 | See group 2B |
| 59 | Oil jet | 468539 | 6 | |
| 60 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 61 | Tube | 842830 | 1 | See group 2B |
| 62 | Hollow screw | 190714 | 1 | |
| 63 | Gasket | 947624 | 2 | |
| 64 | Fitting nut | 956985 | 1 | |
| 65 | Ferrule | 956971 | 1 | |
| 66 | Nipple | 192639 | 1 | |
| 67 | Gasket | 947624 | 1 | |
| 69 | O-ring | 949659 | 2 | |
| 70 | Valve | 468838 | 1 | |
| 71 | Hexagon screw | 940094 | 2 | |
| 72 | Spring washer | 941906 | 2 | |
| 73 | Clamp | 952629 | 1 | |
| 74 | Hexagon screw | 955525 | 2 | |
| 75 | Spring washer | 941907 | 2 | |
| 76 | Plug | 16318 | 1 | |
| 77 | Gasket | 907132 | 1 |
| Item | Part Name | Part No. |
| 58 | Plug 823369 | 823369 |
| Details | |
| Engine model | TAD121CHC TD121CHC TD121CHC, TD121CRC TD121CRC |
| Application | Cylinder Block Induction and Exhaust System Induction and Exhaust System: A Induction and Exhaust System: B |
| Specification | |
| Descriptions | See group 2A See group 2B |
