Plug 836268

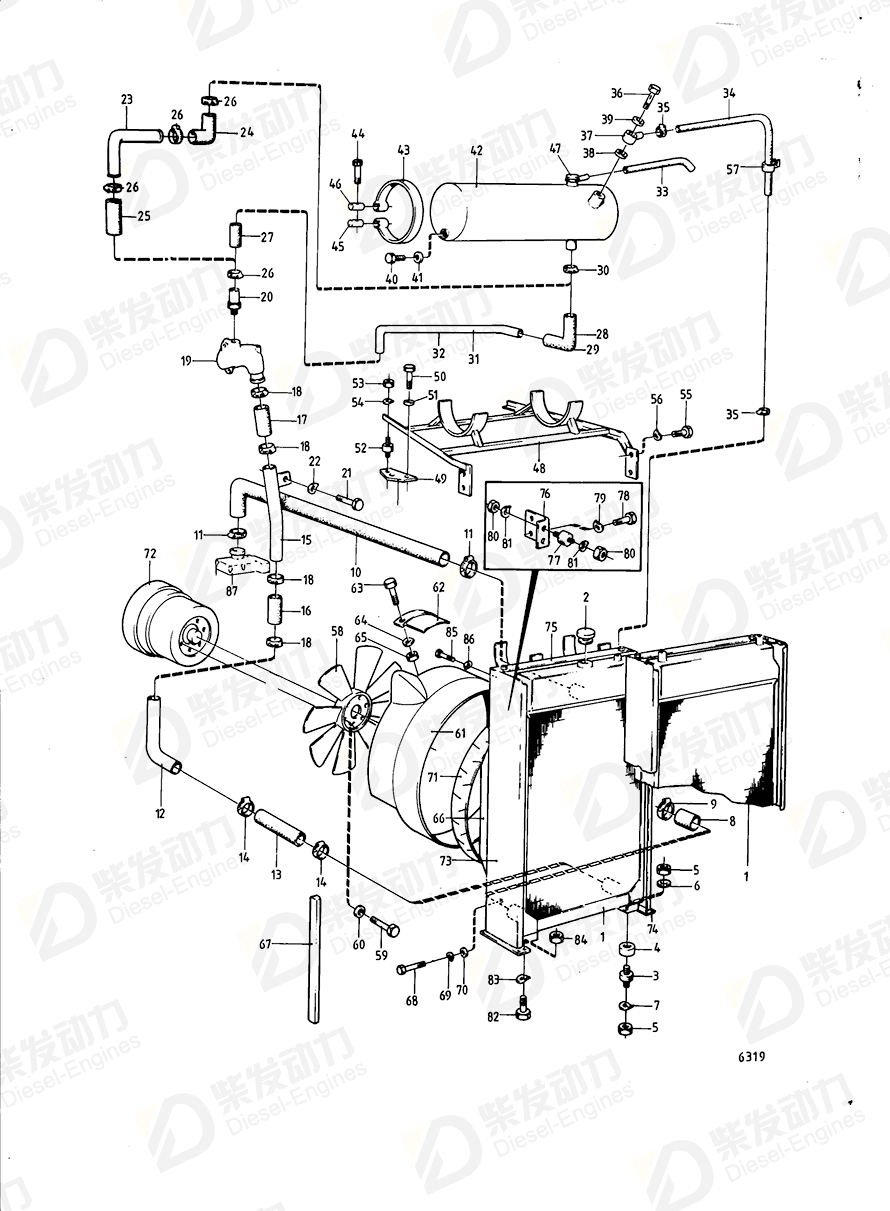

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 843989 | 1 | Classified engine |
| 2 | Radiator cap insert | 323685 | 1 | |
| 3 | Rubber cushion | 833720 | 2 | |
| 4 | Sleeve | 807228 | 2 | |
| 5 | Hexagon nut | 955850 | 4 | |
| 6 | Washer | 955898 | 2 | Late type |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Rubber cap | 824474 | 1 | |
| 9 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 10 | Hose | 836106 | 1 | |
| 11 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 12 | Coolant pipe | 836108 | 1 | Early type |
| 13 | Rubber hose | 943372 | 1 | L=90mm |
| 14 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 15 | Coolant pipe | 820639 | 1 | |
| 16 | Rubber hose | 943372 | 1 | L=90mm |
| 17 | Rubber hose | 943372 | 1 | L=90mm |
| 18 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 19 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 20 | Nipple | 941845 | 1 | |
| 21 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 22 | Spring washer | 942336 | 1 | |
| 23 | Coolant pipe | 845290 | 1 | Moxxxxx |
| 24 | Hose | 826224 | 1 | Late type |
| 25 | Rubber hose | 944386 | 1 | |
| 26 | Hose clamp | 943475 | 4 | |
| 27 | Rubber hose | 944386 | 1 | |
| 28 | Hose | 826224 | 1 | Late type |
| 29 | Hose | 826224 | 2 | Late type |
| 30 | Hose clamp | 943475 | 4 | |
| 31 | Pipe | 836707 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 32 | Pipe | 836707 | 2 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 33 | Hose | 192618 | 1 | L=1400mm |
| 34 | Rubber hose | 943366 | 1 | L=600mm late type |
| 35 | Hose clamp | 945651 | 2 | (943470) |
| 36 | Hollow screw | 944153 | 1 | |
| 37 | Banjo nipple | 836267 | 1 | |
| 38 | Gasket | 957178 | 1 | |
| 39 | Gasket | 957176 | 1 | For governor 225-1200. |
| 40 | Plug | 836268 | 1 | |
| 41 | Gasket | 957175 | 1 | |
| 42 | Expansion tank | 836199 | 1 | |
| 43 | Tensioning band | 339958 | 2 | |
| 44 | Hexagon screw | 31406 | 2 | |
| 45 | Clevis pin, threaded | 31404 | 2 | |
| 46 | Pin | 31405 | 2 | |
| 47 | Cover | 334687 | 1 | |
| 48 | Bracket | 836129 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 49 | Bracket | 836216 | 2 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 50 | Hexagon screw | 959798 | 4 | |
| 51 | Washer | 940097 | 3 | |
| 52 | Rubber cushion | 803762 | 2 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 53 | Hexagon nut | 955850 | 4 | |
| 54 | Spring washer | 940280 | 4 | |
| 55 | Hexagon screw | 955294 | 4 | |
| 56 | Spring washer | 941907 | 4 | |
| 57 | Clamp | 18387 | 2 | |
| 58 | Fan, suction type | 836039 | 1 | D=720mm |
| 59 | Hexagon screw | 955535 | 6 | |
| 60 | Washer | 940097 | 6 | |
| 61 | Fan guard | 824349 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 62 | Belt protector | 836007 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 63 | Hexagon screw | 955513 | 2 | |
| 64 | Washer | 955893 | 2 | |
| 65 | Lock nut | 950352 | 2 | |
| 66 | Fan shroud | 824477 | 1 | Åkerman |
| 67 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 68 | Hexagon screw | 955270 | 10 | |
| 69 | Spring washer | 941906 | 10 | |
| 70 | Washer | 955893 | 10 | |
| 71 | Sealing cloth | 836055 | 1 | FOR SPEC VERSION 45CG |
| 73 | Bracket | 837221 | 1 | Right |
| 74 | Bracket | 837222 | 1 | Left |
| 75 | Cross stay | 837223 | 1 | |
| 76 | Anchorage | 837387 | 2 | |
| 77 | Cushion | 1228599 | 4 | |
| 78 | Hexagon screw | 940199 | 4 | |
| 79 | Spring washer | 941907 | 4 | |
| 80 | Hexagon nut | 955781 | 8 | |
| 81 | Spring washer | 941906 | 8 | |
| 82 | Hexagon screw | 940134 | 8 | |
| 83 | Spring washer | 941909 | 8 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 84 | Hexagon nut | 940157 | 8 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 85 | Hexagon screw | 940114 | 6 | |
| 86 | Spring washer | 942336 | 6 |
| Item | Part Name | Part No. |
| 40 | Plug 836268 | 836268 |
| Details | |
| Engine model | D100B D100BRC, TD100ARC D120A TD100A TD120A TD120ARC TD120BRC TD120C TD120G TD120GG TD60A TD60B TD60D TD60D-83 TD70G TD70G-83 TID120FG TID121FG TID60D TID60DG TID70G |
| Application | RADIATOR AND FAN WITH INSTALLATION COMPONENTS RADIATOR AND FAN WITH INSTALLATION COMPONENTS: A RADIATOR AND FAN WITH INSTALLATION COMPONENTS: B Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation Components RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components: A Radiator and Installation Components: B Radiator with Installation Components |
| Specification | |
| Descriptions | ALT |
