Plug 837735

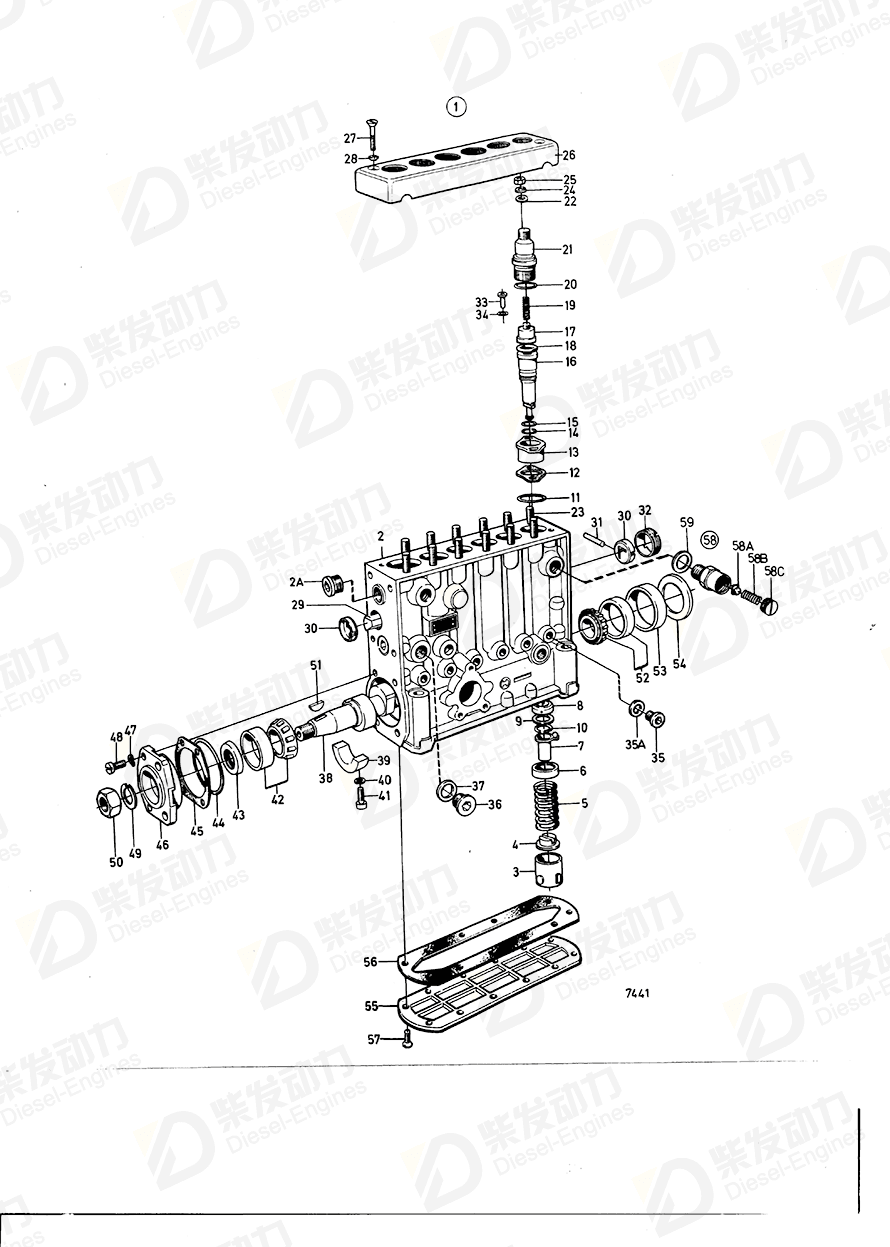

| No. | Part Name | Part Number | Qty | Description |
| 3 | Tappet | 239982 | 6 | |
| 4 | Spring disc | 244685 | 6 | (6211952) |
| 4 | Spring disc | 6211952 | 6 | (244403) |
| 5 | Spring | 244065 | 6 | (239985) |
| 6 | Spring disc | 239984 | 6 | |
| 7 | Control sleeve | 240782 | 6 | |
| 8 | Cover | 239991 | 6 | |
| 10 | Lock ring | 239990 | 6 | |
| 11 | Gasket | 240002 | 6 | |
| 12 | Shim | 244381 | 1 | TH=1,50mm |
| 12 | Shim | 244382 | 1 | TH=1,60mm |
| 12 | Shim | 244383 | 1 | TH=1,70mm |
| 12 | Shim | 244384 | 1 | TH=1,80mm |
| 12 | Shim | 244385 | 1 | TH=1,90mm |
| 12 | Shim | 244386 | 1 | TH=2,00mm |
| 13 | Bushing | 244379 | 6 | |
| 14 | O-ring | 240422 | 6 | |
| 15 | O-ring | 240422 | 6 | |
| 16 | Pump element | 244470 | 6 | |
| 17 | Delivery valve | 244471 | 6 | |
| 18 | Sealing washer | 239993 | 6 | |
| 19 | Compression spring | 240969 | 6 | |
| 20 | O-ring | 240001 | 6 | |
| 21 | Retainer | 243742 | 6 | |
| 22 | Washer | 243743 | 12 | |
| 23 | Stud | 244380 | 12 | |
| 24 | Spring washer | 941908 | 12 | |
| 25 | Hexagon nut | 955783 | 12 | |
| 26 | Cover | 240011 | 1 | |
| 27 | Cross recessed screw | 956209 | 2 | |
| 28 | Lock washer | 18891 | 2 | |
| 29 | Control rod | 241746 | 1 | |
| 30 | Bushing | 240014 | 2 | |
| 31 | Gasket | 240008 | 1 | TH=0.80mm |
| 32 | Bushing | 240015 | 1 | |
| 33 | Peg | 240971 | 6 | |
| 34 | Washer | 240972 | 1 | TH=0.2mm |
| 34 | Washer | 240973 | 1 | TH=0.5mm |
| 35 | Plug | 837735 | 6 | |
| 36 | Sealing plug | 243263 | 1 | |
| 37 | Gasket | 240017 | 1 | Spec.867473 alt |
| 38 | Camshaft | 240789 | 1 | |
| 39 | Bearing | 240426 | 1 | |
| 40 | Spring washer | 941906 | 4 | |
| 41 | Screw | 240427 | 2 | |
| 42 | Roller bearing | 240023 | 1 | |
| 43 | Sealing ring | 240022 | 1 | |
| 44 | O-ring | 243299 | 1 | |
| 45 | Shim | 240024 | 1 | TH=0.15mm |
| 45 | Shim | 240025 | 1 | TH=0.12mm |
| 45 | Shim | 240026 | 1 | TH=0.14mm |
| 45 | Shim | 240027 | 1 | TH=0.16mm |
| 45 | Shim | 240028 | 1 | TH=0.18mm |
| 45 | Shim | 240029 | 1 | TH=0.30mm |
| 45 | Shim | 240030 | 1 | TH=0.50mm |
| 46 | Bearing cover | 240021 | 1 | |
| 47 | Spring washer | 941906 | 4 | |
| 48 | Cross recessed screw | 956094 | 4 | |
| 49 | Spring washer | 941913 | 1 | |
| 50 | Hexagon nut | 955806 | 1 | |
| 51 | Key | 35168 | 1 | |
| 52 | Roller bearing | 240023 | 1 | |
| 53 | Ring | 240032 | 1 | |
| 54 | Shim | 240033 | 1 | TH=1.2mm |
| 54 | Shim | 240034 | 1 | TH=1.5mm |
| 54 | Shim | 240035 | 1 | TH=1.8mm |
| 54 | Shim | 240036 | 1 | TH=2.0mm |
| 55 | Cover | 240947 | 1 | |
| 56 | Gasket | 240948 | 1 | |
| 57 | Cross recessed screw | 956205 | 12 | |
| 58 | Overflow valve | 35096 | 1 | |
| 59 | Sealing ring | 239897 | 1 | |
| 35A | Gasket | 18836 | 6 | |
| 58A | Valve peg | 238614 | 1 | |
| 58B | Compression spring | 845193 | 1 | |
| 58C | Bushing | 25540 | 1 | Replaced by 479775 for engines without fuel shut of valve or 3825154 for engines with fuel shut of valve. |
| Item | Part Name | Part No. |
| 35 | Plug 837735 | 837735 |
| Details | |
| Application | Fuel Filter Fuel Injection Pump Fuel Injection Pump: 467466 Fuel Injection Pump: 837046 Fuel Injection Pump: 837914 Fuel Injection Pump: 842287 Fuel Injection Pump: 843512 Fuel Injection Pump: 846606 |
