Plug 848565

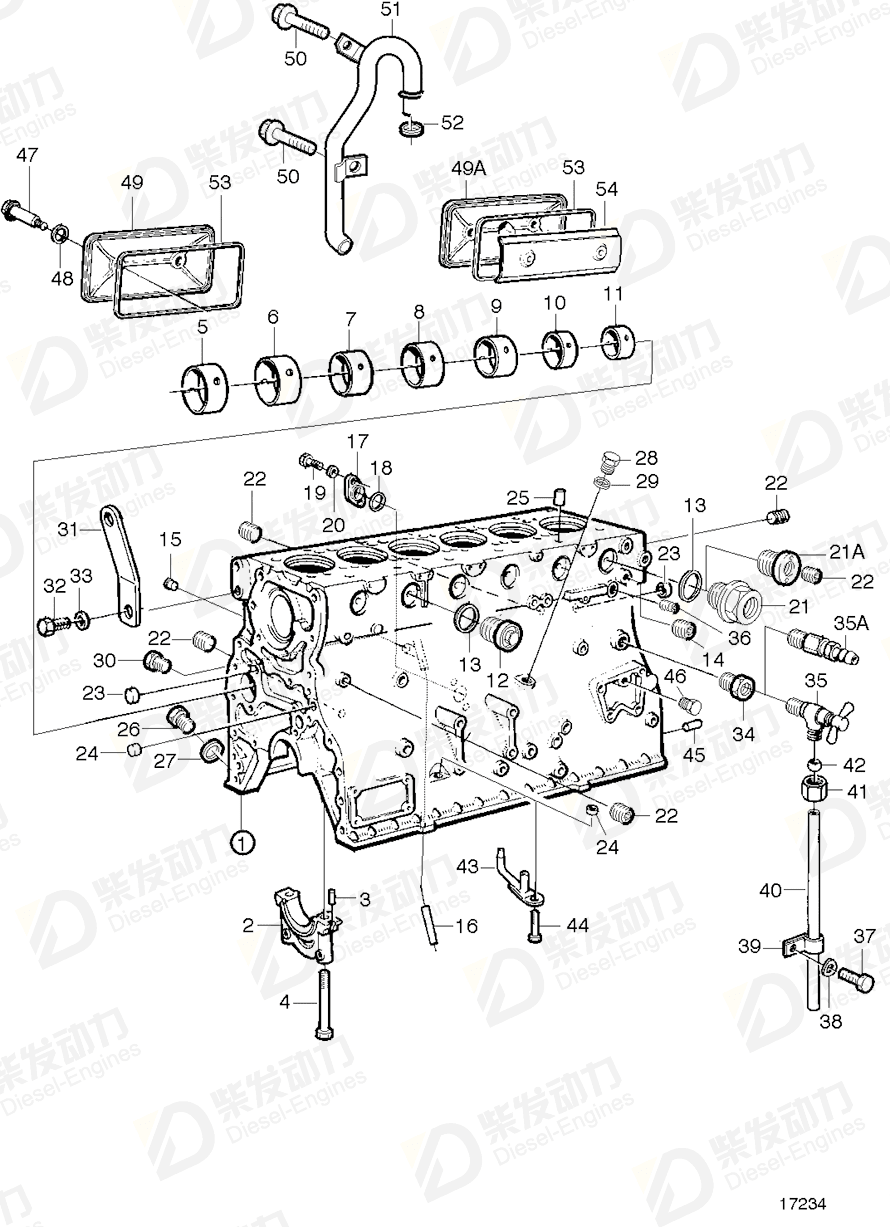

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 478990 | 1 | Spare part design., SNXXXXXXXXXX/199853- |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 423444 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 952075 | 1 | |
| 15 | Plug | 422369 | 2 | |
| 16 | Pipe | 468563 | 1 | |
| 18 | O-ring | 949657 | 1 | (925060) |
| 19 | Hexagon screw | 955524 | 1 | Used on crankshaft 829999. |
| 20 | Spring washer | 941907 | 1 | |
| 21 | Plug | 848565 | 1 | |
| 22 | Plug | 479977 | 3 | |
| 23 | Cap plug | 955083 | 3 | |
| 24 | Cap plug | 955082 | 2 | |
| 25 | Pin | 950543 | 12 | |
| 26 | Plug, 3/4-UNF | 948187 | 1 | |
| 27 | Gasket | 18818 | 1 | |
| 28 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 29 | Gasket | 969011 | 1 | |
| 30 | Plug | 479979 | 5 | |
| 32 | Hexagon screw | 955562 | 2 | L=38mm |
| 33 | Spring washer | 940280 | 2 | |
| 34 | Nipple | 479954 | 1 | (190130) |
| 35 | Faucet | 479970 | 1 | Earlier prod (820436) |
| 36 | Plug | 942734 | 1 | |
| 37 | Hexagon screw | 940133 | 1 | |
| 38 | Spring washer | 942336 | 1 | |
| 39 | Clamp | 942400 | 1 | |
| 41 | Fitting nut | 954357 | 1 | |
| 42 | Fitting | 954365 | 1 | |
| 43 | Oil jet | 468539 | 6 | |
| 44 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 45 | Pin | 191171 | 2 | |
| 46 | Plug | 16318 | 1 | |
| 47 | Shoulder screw | 422541 | 6 | |
| 48 | Sealing ring | 471856 | 6 | |
| 49 | Inspection cover | 423120 | 3 | |
| 50 | Flange screw | 942402 | 2 | |
| 51 | Breather pipe | 8193627 | 1 | |
| 52 | Sealing ring | 421158 | 1 | |
| 53 | Gasket | 469823 | 3 | |
| 54 | Splash plate | 422542 | 1 | |
| 35A | Shut-off cock | 949918 | 1 | (82745) |
| 49A | Inspection cover | 423121 | 1 |
| Item | Part Name | Part No. |
| 21 | Plug 848565 | 848565 |
| Details | |
| Engine model | TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GP-87 TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TWD1210G, TWD1211G TWD1230VE, TWD1231VE |
| Application | Cylinder Block and Related Parts Cylinder Block: A Cylinder Block: B |
