Plug 946559

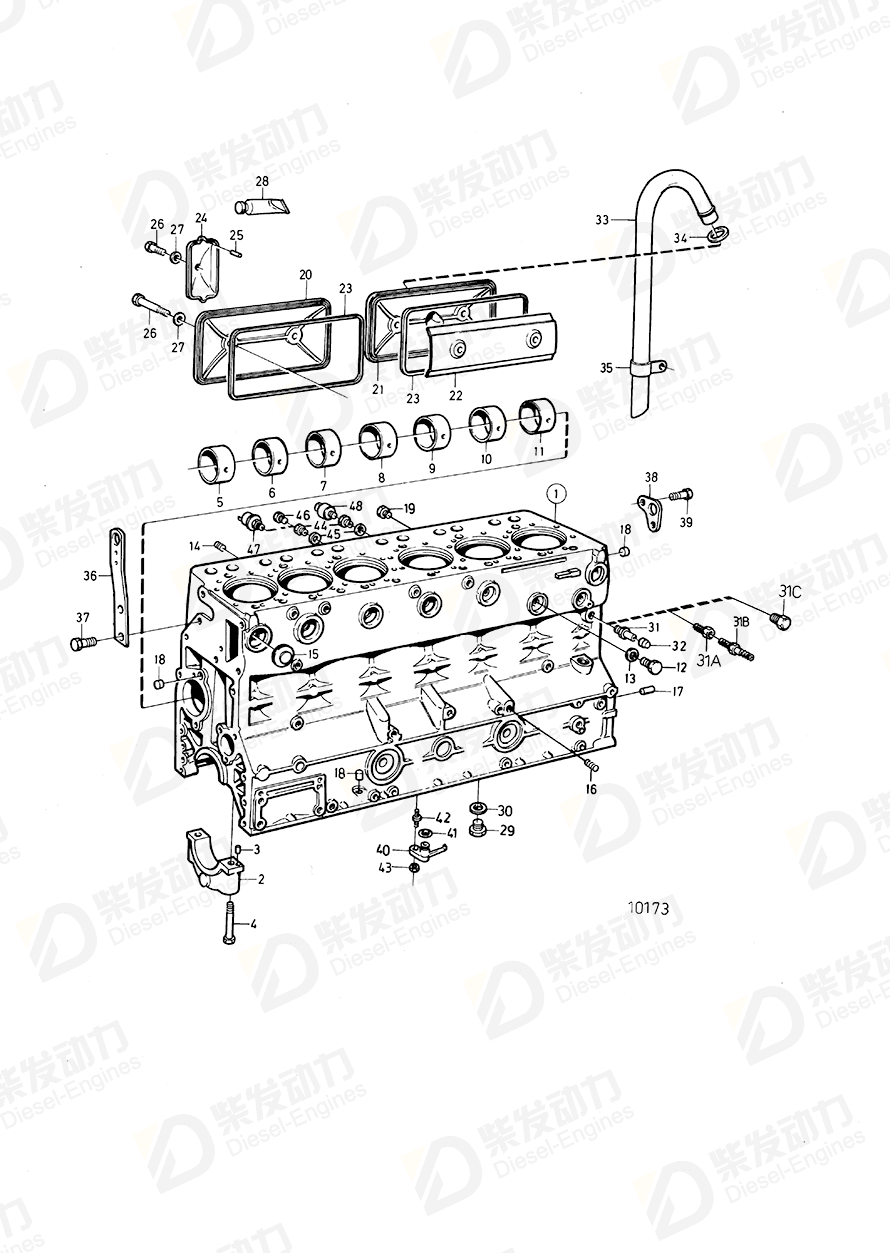

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 471400 | 1 | SN-XXXXXXXXXX/61759 |
| 1 | Cylinder block | 477990 | 1 | |
| 1 | Short block | 3801054 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 465899 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 1 | |
| 13 | Gasket | 469328 | 1 | |
| 14 | Plug | 422369 | 7 | |
| 15 | Expansion plug | 1542263 | 6 | |
| 16 | Plug | 968145 | 1 | (952357) |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 4 | |
| 19 | Plug | 946559 | 1 | |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 471858 | 1 | |
| 23 | Gasket | 421121 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 25 | Spring pin | 951974 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Sealant | 1161231 | 1 | 304ml |
| 29 | Plug | 966146 | 1 | |
| 30 | Gasket | 947629 | 1 | |
| 31 | Hose nipple | 946121 | 1 | Early type |
| 32 | Protecting cap | 476279 | 1 | |
| 33 | Tube | 471857 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Clamp | 968124 | 1 | |
| 37 | Flange screw | 965191 | 2 | |
| 40 | Piston cooling jet | 420628 | 6 | |
| 41 | Sealing ring | 466874 | 6 | |
| 42 | Stud | 471596 | 6 | |
| 43 | Lock nut | 948570 | 6 | |
| 44 | Nipple, oil | 421528 | 2 | |
| 45 | Gasket | 947622 | 2 | |
| 46 | Plug | 191026 | 2 | |
| 31A | Nipple | 479954 | 1 | (190130) |
| 31B | Shut-off cock | 947893 | 1 | |
| 31C | Plug | 479956 | 1 |
| Item | Part Name | Part No. |
| 19 | Plug 946559 | 946559 |
| Details | |
| Engine model | TD71A, TD71AW TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71ACE TD71AG TD71AP TID71A, TID71AG, TID71AP TWD710P |
| Application | Cylinder Block and Related Parts Thermostat and Water Pump with Installation Components Water Pump and Thermostat Housing |
