Plug 948240

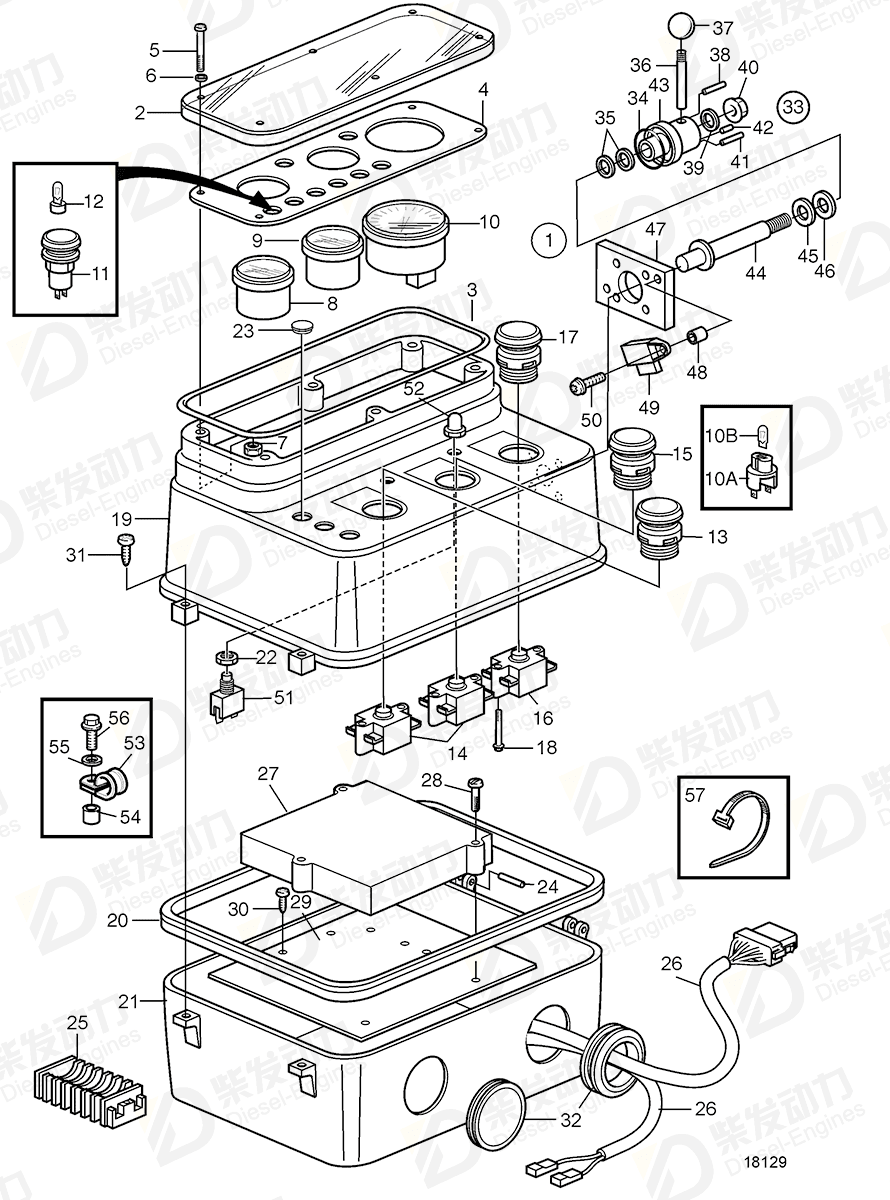

| No. | Part Name | Part Number | Qty | Description |
| 1 | Instrument panel | 874153 | 1 | |
| 2 | Protecting cover | 873654 | 1 | (849842) |
| 3 | Sealing strip | 849885 | 1 | |
| 4 | Plate | 874226 | 1 | |
| 5 | Six point socket scr | 969439 | 6 | (849963) |
| 6 | Gasket | 862501 | 6 | |
| 7 | Flange nut | 965483 | 6 | |
| 8 | Instrument, oil-pressure | 873625 | 1 | 24V |
| 9 | Instrument, temperature | 873624 | 1 | 24V |
| 10 | Tachometer kit, hour/tachometer | 873998 | 1 | Used without diod cable 873695., 12V-24V |
| 11 | Bulb socket | 863721 | 1 | Warning lamp, low coolant level. |
| 11 | Bulb socket | 863723 | 1 | Warning lamp, high coolant temperature. |
| 11 | Bulb socket | 874228 | 1 | Warning lamp for water in fuel. |
| 11 | Bulb socket | 874231 | 1 | Warning lamp, high oil temp. |
| 11 | Bulb socket | 874232 | 1 | Warning lamp, low oil pressure. |
| 11 | Bulb socket | 874372 | 1 | Indicate lamp, glow. |
| 11 | Bulb socket | 874373 | 1 | Diagnos lamp. |
| 11 | Bulb socket | 874380 | 1 | Warning lamp, amp. |
| 12 | Bulb | 182034 | 8 | (277803) |
| 13 | Push button | 863102 | 1 | Red |
| 14 | Contact unit | 3817574 | 2 | Green-red |
| 15 | Push button | 3817578 | 1 | Black (863104) |
| 16 | Contact unit | 873792 | 1 | Green (863116) |
| 17 | Push button | 863103 | 1 | Green |
| 18 | Cross recessed screw | 956065 | 6 | |
| 19 | Cap | 874227 | 1 | |
| 20 | Sealing strip | 849840 | 1 | |
| 21 | Box | 849839 | 1 | |
| 22 | Hexagon nut | 872407 | 1 | |
| 23 | Plug | 948240 | 3 | |
| 24 | Spring pin | 951967 | 2 | Included in repair kit 3830711. |
| 25 | Terminal block | 849992 | 1 | 5-pole |
| 25 | Terminal block | 849993 | 2 | 7-pole |
| 26 | Wiring harness | 874225 | 1 | |
| 27 | Control unit | 874239 | 1 | Instrument panel / CIU |
| 29 | Bracket | 874272 | 1 | |
| 31 | Cross recessed sunk | 862281 | 2 | |
| 32 | Plug | 943920 | 1 | I.D=40mm |
| 33 | Control | 3827009 | 1 | |
| 34 | O-ring | 975672 | 1 | |
| 35 | O-ring, bearing housing | 925054 | 2 | |
| 37 | Wing nut | 940344 | 1 | |
| 38 | Spring pin | 951946 | 1 | |
| 39 | Washer | 955893 | 1 | |
| 40 | Lock nut | 963105 | 1 | |
| 41 | Spring pin | 951953 | 1 | L=16mm |
| 42 | Spring pin | 951940 | 1 | L=8mm |
| 45 | Spring washer | 941908 | 1 | |
| 46 | Washer | 976945 | 1 | |
| 47 | Plate | 3826795 | 1 | |
| 48 | Spacer sleeve | 1573057 | 2 | |
| 49 | Potentiometer | 1336385 | 1 | |
| 50 | Six point socket scr | 969556 | 6 | |
| 51 | Toggle switch | 828584 | 2 | |
| 52 | Nut | 828586 | 2 | |
| 53 | Clamp | 952632 | 1 | Late type |
| 54 | Spacer sleeve | 841035 | 1 | |
| 55 | Washer | 960137 | 1 | |
| 56 | Cross recessed screw | 956065 | 1 | |
| 57 | Cable tie, with mount. Hole | 949666 | 1 | 3x4,0mm² |
| 10A | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 10B | Bulb | 943638 | 1 | For 873625,873624,873664 |
| Item | Part Name | Part No. |
| 23 | Plug 948240 | 948240 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Instrument Panel and Control |
