Plug 952077

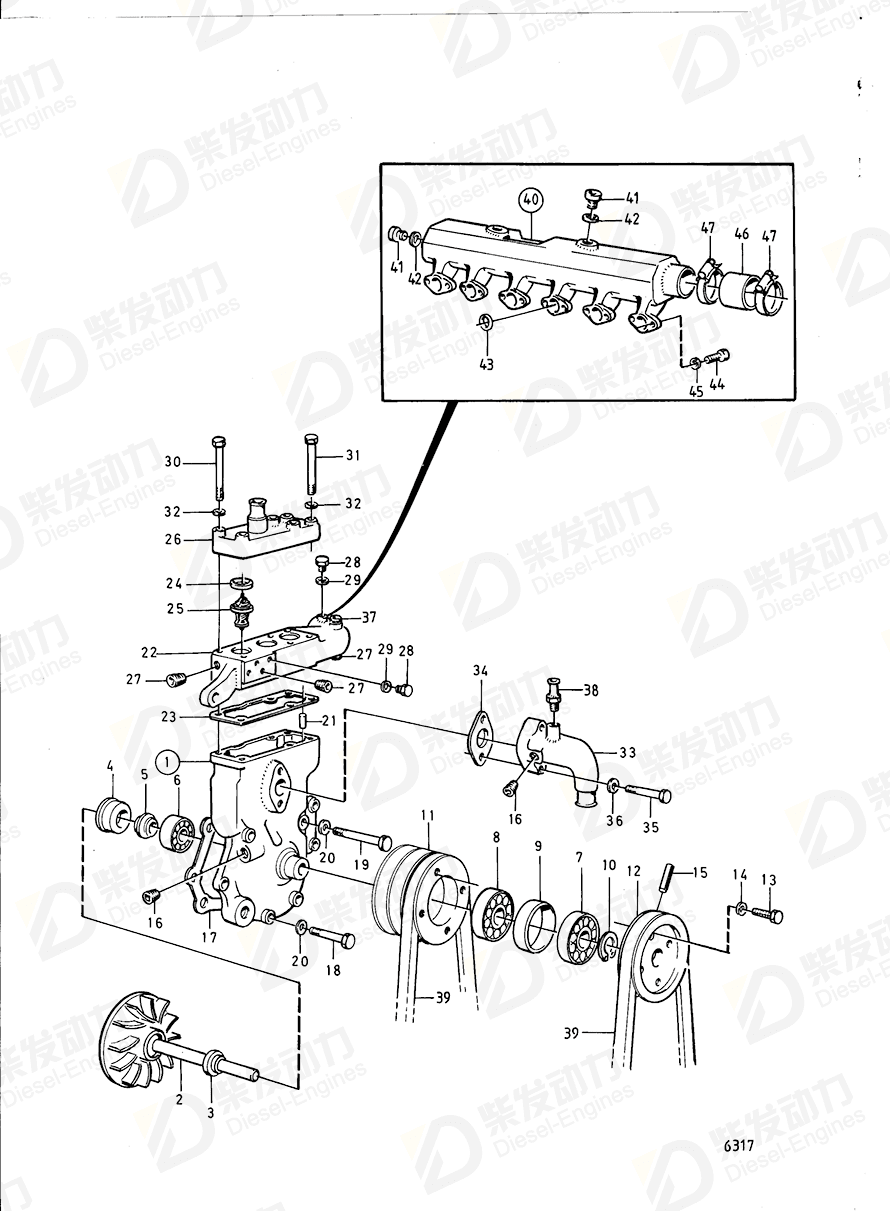

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 822330 | 1 | |
| 1 | Coolant pump | 3803206 | 1 | |
| 2 | Shaft | 823484 | 1 | |
| 3 | Wear ring | 421306 | 1 | |
| 4 | Sealing ring | 1545283 | 1 | (1542833) |
| 5 | Deflector | 70913 | 1 | |
| 6 | Ball bearing | 181670 | 1 | |
| 7 | Ball bearing | 11013 | 1 | |
| 8 | Ball bearing | 181538 | 1 | |
| 9 | Spacer sleeve | 422202 | 1 | |
| 10 | Retaining ring | 914462 | 1 | |
| 11 | V-belt pulley | 423125 | 1 | |
| 12 | V-belt pulley | 422499 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 13 | Hexagon screw | 955525 | 4 | |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Spring pin | 951969 | 1 | Spec. 867139. |
| 16 | Plug | 952077 | 2 | |
| 17 | Gasket | 423351 | 1 | |
| 18 | Hexagon screw | 955536 | 5 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 19 | Hexagon screw | 955542 | 2 | |
| 20 | Spring washer | 942336 | 7 | |
| 21 | Spring pin | 951973 | 2 | |
| 22 | Thermostat housing | 836788 | 1 | |
| 23 | Gasket | 423352 | 1 | |
| 24 | Sealing ring | 416033 | 3 | |
| 25 | Thermostat | 1544297 | 3 | 76°C later prod |
| 26 | Upper section | 822344 | 1 | |
| 27 | Plug | 952077 | 4 | |
| 28 | Plug | 180761 | 3 | |
| 29 | Gasket | 11996 | 3 | |
| 30 | Hexagon screw | 959796 | 2 | L=140mm |
| 31 | Hexagon screw | 959796 | 4 | L=140mm |
| 32 | Washer | 940097 | 6 | |
| 33 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 34 | Gasket | 423138 | 1 | |
| 36 | Spring washer | 942336 | 2 | |
| 37 | Plug | 952075 | 1 | |
| 38 | Hose nipple | 942691 | 1 | |
| 40 | Tube | 468858 | 1 | |
| 41 | Plug | 467366 | 3 | |
| 42 | Gasket | 468463 | 3 | |
| 43 | O-ring | 423281 | 6 | |
| 44 | Hexagon screw | 955525 | 12 | |
| 45 | Spring washer | 941907 | 12 | |
| 46 | Radiator hose | 470464 | 1 | (468216) |
| 47 | Overhaul kit | 875461 | 1 | See group 10A |
| 47 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| Item | Part Name | Part No. |
| 27 | Plug 952077 | 952077 |
| Details | |
| Engine model | D100A D100B D100BHC D100BHC, TD100AHC D100BRC D100BRC, TD100ARC D120A D70B D70CHC D70CHC, TD70CHC D70CRC D70CRC, TD70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G, TD100GG, TD100GP TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GG-87, TID100KG-87 TD100GP TD100GP-85 TD100HP-87 TD1030ME TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120G, TD120GG TD120GG TD120HP-86 TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HPP TD121CHC TD121CHC, TD121CRC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD30A TD31ACE TD40A TD60A TD60B TD60D TD60D-83 TD61A, TD61AW TD61ACE TD61AG TD61AP TD70B TD70CHC TD70CRC TD70G TD70G-83 TD71A, TD71AW TD71ACE TD71AG TD71AP TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID121K-87 TID121KG-87 TID121KGP TID121KP-87, TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87, TID121LPB-87 TID60D TID60DG TID61AG TID70G |
| Application | AIR COMPRESSOR AND INSTALLATION COMPONENTS Air Compressor and Installation Components: A Air Compressor and Installation Components: B Air Compressor TUFLO 500 AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: B Air Compressor TUFLO 700 and Installation Components AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: B Air Compressor, TUFLO 500 and Installation Components Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Air Filter and Installation Components Air Filter and Installation Components: B Circulation Pump and Drive Device with Installation Components Circulation Pump and Drive Device with Installation Components: A Circulation Pump and Drive Device with Installation Components: B Circulation Pump and Drive Device with Installation Components: C Circulation Pump and Thermostat with Installation Components Circulation Pump and Thermostat with Installation Components: A Circulation Pump and Thermostat with Installation Components: B Cylinder Block Cylinder Block and Flywheel Housing Cylinder Block and Related Parts Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D HEAT EXCHANGER AND THERMOSTAT WITH INSTALLATION COMPONENTS Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Installation Components Radiator and Installation Components 35CG: A Radiator and Installation Components 35CG: B Radiator and Installation Components 35CG: C Radiator and Installation Components 35CG: TD100HPB87 Radiator and Installation Components Tropic 45CG: A Radiator and Installation Components Tropic 45CG: B RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components, Standard 35CG: A Radiator and Installation Components, Standard 35CG: B Radiator and Installation Components, Standard 35CG: C RADIATOR AND INSTALLATION COMPONENTS, STD 35 CG Radiator and Installation Components, Std: A Radiator and Installation Components, Std: B Radiator and Installation Components, Std: C Radiator and Installation Components: A Radiator and Installation Components: B Radiator and Installation Comps. Radiator and Installation Comps. Tropic 45CG Radiator and Installation Comps. Tropic 45CG: A Radiator and Installation Comps. Tropic 45CG: B Radiator and Installation Comps. Tropic 45CG: C Radiator and Installation Comps. Tropic 45CG: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D Thermostat and Water Pump with Installation Components: TD100HPB87 Thermostat and Water Pump with Installation Components: TID100KGP87 THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP Thermostat and Water Pump with Installation Comps, Classed Engine Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | Åkerman spec. 867446, 867477. Alt Cyl.block 1542000 EARLY TYPE EXCL. SPEC. 9882, 9961, 9982. For engine with automatic belt tensioner. Late type LMV LMW MO XXXXX/3524- MO-49750/XXXXX MO-XXXXX/98707., Classified engine, Spec.867053 MO-XXXXX/98707., Classified engine, Spec.867117 MO-XXXXX/98707., Early type SN-1101010219/XXXXX, 1/2'' Spec 867842 SPEC. 867131. Spec. 868075 When coolant supervision is mounted When coolant supervision not is mounted |
Related Products
Tags: Plug, Volvo Penta, 952077
