Plug 952358

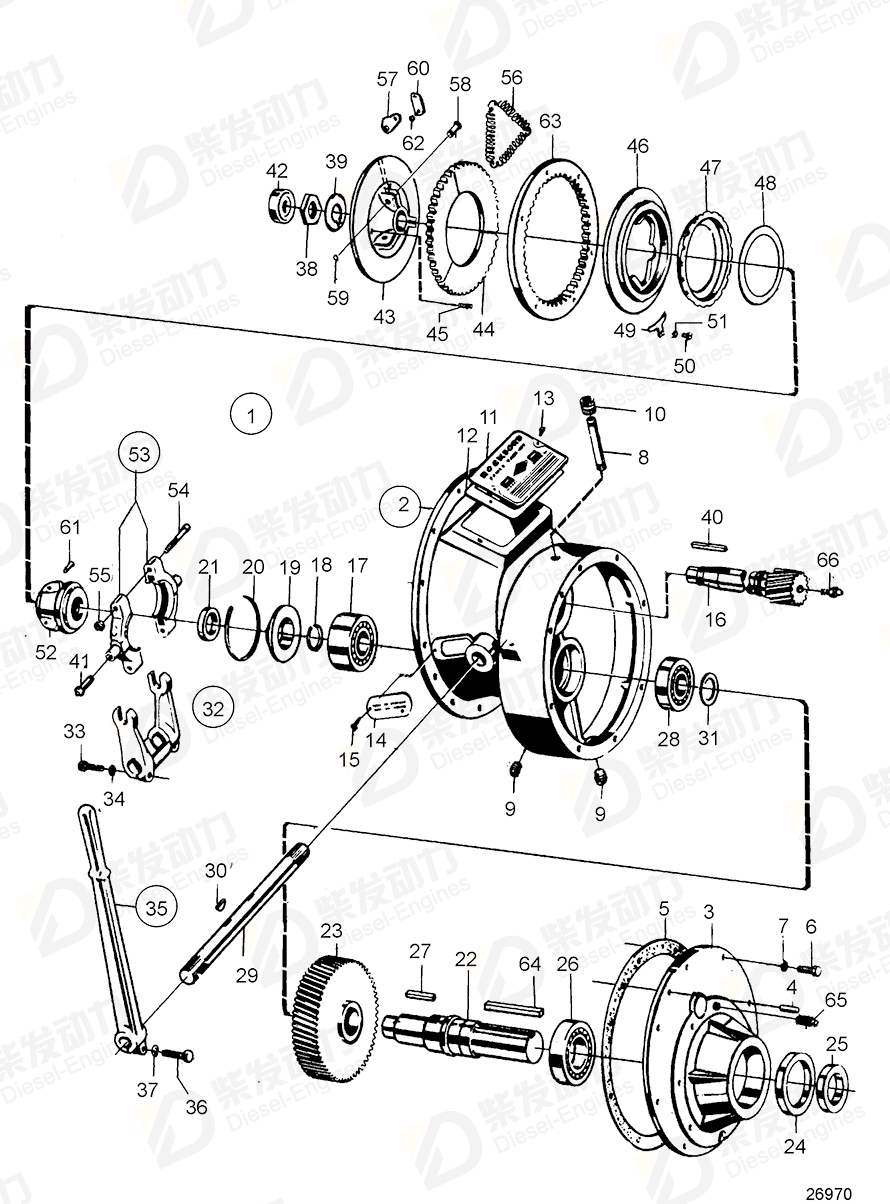

| No. | Part Name | Part Number | Qty | Description |
| 1 | Friction clutch | 820803 | 1 | Rockford BW 10'' |
| 2 | Housing | 828083 | 1 | |
| 5 | Gasket | 819964 | 1 | |
| 6 | Hexagon screw | 940115 | 8 | |
| 7 | Spring washer | 942336 | 8 | |
| 9 | Plug | 968145 | 2 | (952357) |
| 11 | Instruction | 815347 | 1 | |
| 12 | Gasket | 815334 | 1 | |
| 13 | Cross recessed screw | 950044 | 2 | |
| 15 | Cross recessed screw | 950027 | 1 | |
| 16 | Axle shaft | 827512 | 1 | |
| 17 | Bearing | 181653 | 1 | |
| 18 | Lock ring | 827513 | 1 | |
| 19 | Retainer | 827514 | 1 | |
| 20 | Lock ring | 827515 | 1 | |
| 21 | Sealing ring | 827516 | 1 | |
| 22 | Shaft | 819976 | 1 | |
| 23 | Gear | 819975 | 1 | |
| 24 | Retainer | 819962 | 1 | |
| 25 | Oil | 819967 | 1 | |
| 26 | Ball bearing | 181654 | 1 | |
| 27 | Key | 819963 | 1 | |
| 28 | Bearing | 181651 | 1 | |
| 29 | Shaft | 815319 | 1 | |
| 30 | Woodruff key | 815320 | 2 | |
| 31 | Washer | 819978 | 1 | |
| 32 | Release fork | 815337 | 1 | |
| 33 | Hexagon screw | 955535 | 2 | |
| 34 | Spring washer | 942336 | 2 | |
| 35 | Control arm | 815318 | 1 | |
| 36 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 37 | Spring washer | 942336 | 1 | |
| 38 | Nut | 815327 | 1 | |
| 39 | Lock washer | 827517 | 1 | |
| 40 | Key | 827518 | 1 | |
| 41 | Fitting | 815387 | 1 | |
| 42 | Bearing | 183456 | 1 | |
| 43 | Plate | 827519 | 1 | |
| 44 | Disc | 815354 | 1 | |
| 45 | Spring | 815369 | 3 | |
| 46 | Plate | 815385 | 1 | |
| 47 | Nut | 825593 | 1 | |
| 48 | Washer | 825594 | 1 | |
| 49 | Lock | 815378 | 1 | |
| 50 | Screw | 827520 | 1 | |
| 51 | Toothed washer | 940155 | 1 | |
| 52 | Engaging sleeve | 827521 | 1 | |
| 53 | Release bearing | 815360 | 1 | |
| 54 | Hexagon screw | 955661 | 2 | |
| 55 | Lock nut | 950373 | 2 | |
| 56 | Spring | 815382 | 1 | |
| 57 | Intermediate lever | 815370 | 3 | |
| 58 | Pin | 815362 | 3 | |
| 59 | Lock ring | 815358 | 3 | |
| 60 | Link | 815371 | 6 | |
| 61 | Pin | 815361 | 6 | |
| 62 | Lock ring | 815359 | 6 | |
| 63 | Gear ring | 815353 | 1 | |
| 64 | Key | 815909 | 1 | |
| 65 | Plug | 952358 | 1 | MO-21082/XXXXX |
| 66 | Lubricator | 827632 | 1 |
| Item | Part Name | Part No. |
| 65 | Plug 952358 | 952358 |
| Details | |
| Engine model | D42A TD100A TD45B |
| Application | Clutch Rockford Borg Warner 8'' Utv 2, 8:1, 10'' Utv 2, 8:1: 820803 Cylinder Block and Related Part: A Cylinder Block and Related Part: B CYLINDER BLOCK AND RELATED PARTS CYLINDER HEAD: A CYLINDER HEAD: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS, SPEC.9969 THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS Turbo and Installation Components, Classed Engine |
| Specification | |
| Descriptions | FOR ENGINE WITHOUT OIL COOLER. MO-21082/XXXXX |
