Plug 960630

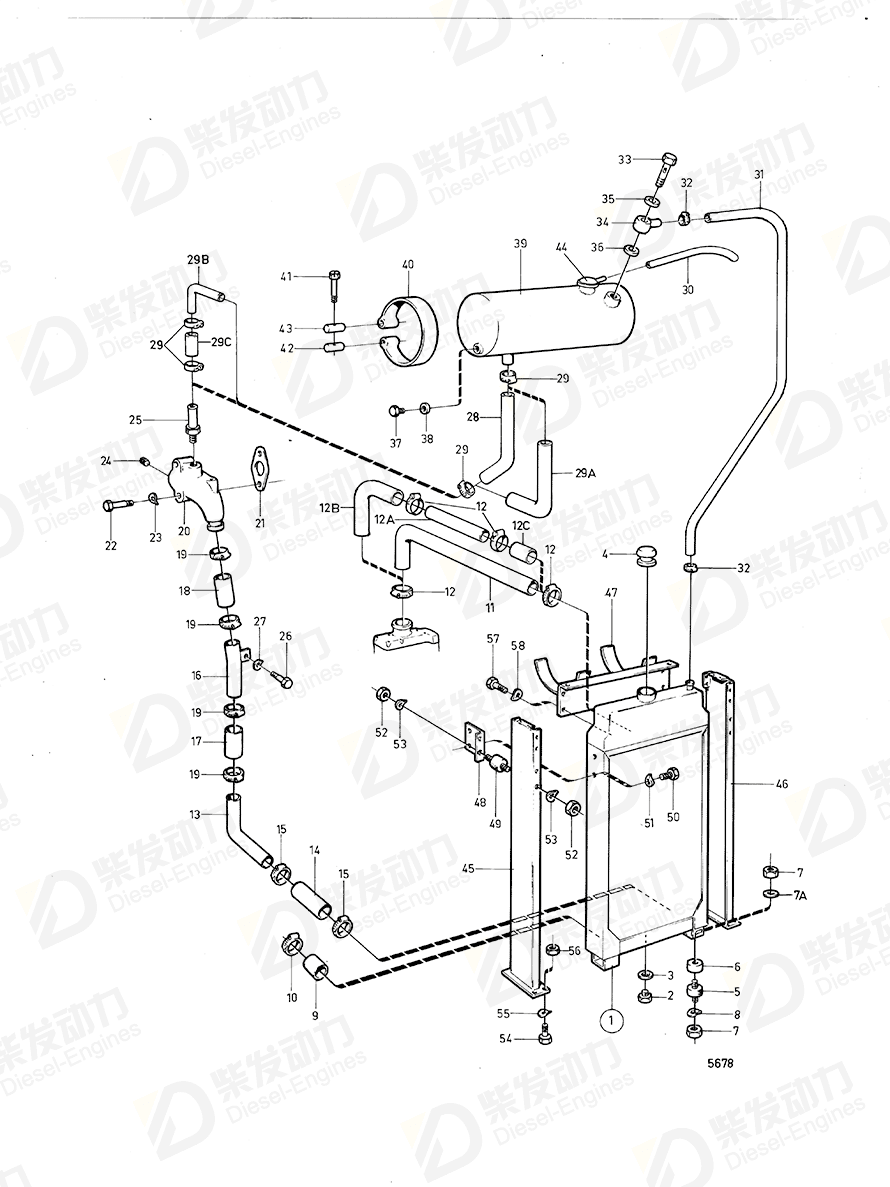

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 823482 | 1 | Alternator,high mounted. |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 957178 | 1 | |
| 4 | Radiator cap insert | 323685 | 1 | |
| 5 | Rubber cushion | 833720 | 2 | |
| 6 | Sleeve | 807228 | 2 | |
| 7 | Hexagon nut | 955850 | 4 | |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Rubber cap | 824474 | 1 | |
| 10 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 11 | Hose | 836106 | 1 | |
| 12 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 13 | Coolant pipe | 836108 | 1 | Early type |
| 13 | Coolant pipe | 845271 | 1 | Late type |
| 14 | Rubber hose | 943372 | 1 | L=90mm |
| 15 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 16 | Coolant pipe | 820639 | 1 | |
| 16 | Coolant pipe | 845885 | 1 | Replaced by 1pc 843087 and 8PCS 955365., Moxxxxx |
| 17 | Rubber hose | 943372 | 1 | L=90mm |
| 18 | Rubber hose | 943372 | 1 | L=90mm |
| 19 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 20 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 21 | Gasket | 423138 | 1 | |
| 22 | Hexagon screw | 955537 | 1 | |
| 22 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 23 | Spring washer | 942336 | 2 | |
| 24 | Plug | 952077 | 2 | |
| 25 | Nipple | 941845 | 1 | |
| 26 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 27 | Spring washer | 942336 | 1 | |
| 28 | Rubber hose | 944386 | 1 | |
| 29 | Hose clamp | 994560 | 2 | |
| 30 | Hose | 192618 | 1 | L=1400mm |
| 31 | Hose | 13776 | 1 | L=450mm early type |
| 31 | Rubber hose | 943366 | 1 | L=600mm late type |
| 32 | Hose clamp | 945651 | 2 | (943470) |
| 33 | Allen key | 914675 | 1 | (942372) |
| 34 | Banjo nipple | 836267 | 1 | |
| 35 | Gasket | 957178 | 1 | |
| 36 | Gasket | 957176 | 1 | For governor 225-1200. |
| 37 | Plug | 836268 | 1 | |
| 38 | Gasket | 957175 | 1 | |
| 39 | Expansion tank | 836199 | 1 | |
| 40 | Tensioning band | 339958 | 2 | |
| 41 | Hexagon screw | 31406 | 2 | |
| 42 | Clevis pin, threaded | 31404 | 2 | |
| 43 | Pin | 31405 | 2 | |
| 44 | Cover | 334687 | 1 | |
| 45 | Bracket | 837221 | 1 | Right |
| 46 | Bracket | 837222 | 1 | Left |
| 47 | Cross stay | 837223 | 1 | |
| 48 | Anchorage | 837387 | 2 | |
| 49 | Cushion | 1228599 | 4 | |
| 50 | Hexagon screw | 940199 | 4 | |
| 51 | Spring washer | 941907 | 4 | |
| 52 | Hexagon nut | 955781 | 8 | |
| 52 | Hexagon nut | 955825 | 8 | Late type |
| 53 | Spring washer | 941906 | 8 | |
| 54 | Hexagon screw | 940134 | 8 | |
| 55 | Spring washer | 941909 | 8 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 56 | Hexagon nut | 940157 | 8 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 57 | Hexagon screw | 940114 | 6 | |
| 58 | Spring washer | 942336 | 6 | |
| 7A | Washer | 955898 | 2 | Late type |
| 12A | Coolant pipe | 845155 | 1 | Late type |
| 12B | Radiator hose | 845156 | 1 | Late type |
| 12C | Rubber hose | 943372 | 1 | L=90mm |
| 29A | Hose | 826224 | 1 | Late type |
| 29B | Coolant pipe | 845276 | 1 | Late type |
| 29C | Rubber hose | 944386 | 1 |
| Item | Part Name | Part No. |
| 2 | Plug 960630 | 960630 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D100BRC, TD100ARC D120A D70B D70CHC D70CRC DH10A, THD102KD, THD102KB TAD1030G TAD1030GE TAD1030P TAD1030V TAD1031GE TAD1032GE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1240GE, TAD1241GE, TAD1242GE TAD1250VE, TAD1251VE, TAD1252VE TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE TAD420VE TAD520GE TAD520GE, TAD720GE, TAD721GE, TAD722GE TAD520VE TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD530GE, TAD531GE TAD532GE TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD550GE, TAD551GE TAD550GE, TAD551GE, TAD750GE, TAD751GE TAD560VE, TAD561VE TAD570VE, TAD571VE, TAD572VE TAD620VE TAD650VE, TAD660VE TAD720GE TAD721GE, TAD722GE TAD730G TAD730GE, TAD731GE TAD730P TAD730V TAD732GE, TAD733GE TAD740GE, TAD741GE TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD120HPP TD1210G, TWD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD164KAE TD30A TD31ACE TD40A TD420VE TD420VE, TAD420VE, TAD620VE TD45B TD520GE TD520GE, TAD530GE, TAD531GE, TAD532GE, TD720GE, TAD720GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TD520VE TD520VE, TD720VE TD60A TD60B TD60D TD60D-83 TD610G, TWD610G TD610G, TWD610G, TD710G TD610M TD610M, TD630ME, TWD630ME TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V TD610V, TD630VE, TWD630VE, TD640VE TD610V, TWD610V, TWD630VE, TD640VE TD61A TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD61A, TD61AW, TD71A, TD71AW, TID71A TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TD70CHC TD70CRC TD70G TD70G-83 TD710G TD71A, TID71A, TD730VE, TWD731VE, TWD740VE TD71A, TID71A, TWD710V, TAD730V TD71A, TWD710V, TWD731VE TD71AG TD71AG, TID71AG TD720GE TD730ME TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID120FG TID120HPP TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID162AG, TID162AGP, TID162AP, TID162APB TID60D TID60DG TID61AG TID70G TID71AG TWD1211G TWD1230ME TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1663GE TWD1672GE, TWD1673GE TWD610P TWD610P, TWD710P TWD610V TWD630ME TWD630VE TWD710G TWD710P TWD730ME, TWD731ME TWD740GE TWD740VE |
| Application | Aluminium Oil Sump Bracket for Cooling Water Filter Bracket for Cooling Water Filter, Later Production Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Cooling System Cylinder Block Cylinder Block and Related Parts Cylinder Block: A Cylinder Block: B Exhaust Line, Dry Flywheel Housing,Vehicle Type: A Flywheel Housing,Vehicle Type: B Flywheel Housing,Vehicle Type: C Fuel Cleaner Fuel Filter Fuel Filter and Installation Components, Spec.867293 Fuel Filter, Components Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump: 242525 Fuel Injection Pump: 242643 Fuel Pipes-Pump-Fuel Filter Spec.867578 Fuel System Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Standard Model: A Fuel System, Standard Model: B Fuel System: 846359 Fuel System: 862183 Fuel System: 863451 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Fuel System: TD100GGP-87 Fuel System: TD100HPB87 Fuel System: TD61AGP Fuel System: TD61APB Fuel System: TD71AGP FUEL SYSTEM: TID121FP Fuel System: TID61AGP Fuel System: TID71AGP Induction Manifold with Starter Element Induction Manifold, Low Mounted Turbocharger Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump, Fuel Filter and Shut-off valve Inlet Manifold Inlet Manifold, Air Intake Left Side Inlet Manifold. High Mounted Turbo Inlet Manifold. High Mounted Turbo. Exhaust Outlet Front Intake Manifold Oil Cooler, Engine Oil Filter, Alt. Location Radiator Radiator 0,50sqm Radiator 0,65sqm Radiator and Fan Radiator and Fan Protection with Installation Components Radiator and Fan with Installation Components, Gen Pac, Alt Radiator and Fan with Installation Components, Gen Pac, Alt: A Radiator and Fan with Installation Components, Gen Pac, Alt: B Radiator and Fan, SN-2100256096 Radiator and Fan, SN2100256097- Radiator and Fan, SN2120211550-: A Radiator and Fan, SN2120211550-: B Radiator and Fan: A Radiator and Fan: B Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 35CG Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components: A Radiator and Installation Components: B Radiator and Installation Comps. Radiator and Metal Fan Radiator and Plastic Fan Radiator and Plastic Fan, SN-2160048211 Radiator: EARLIER PROD Radiator: LATER PROD Radiator: SN 2071145378- Radiator: SN 2071145378-2071170098 Radiator: SN 2071170098- Radiator: SN-2071145377 SCR. Muffler Components and Sensors Timing Gear Casing and Gears Water Pump and Thermostat Housing SN-41134996 Water Pump and Thermostat Housing SN41134997- |
| Specification | |
| Descriptions | (20479599) Alt EARLIER PROD For 420674 For 471172 Replaced by 1 PC 843512,1 ST 191026. SN2160036449- Spec.867785 TD70GG TID70G spec.867784 MOXXXX/170456-. |
