Plug 960632

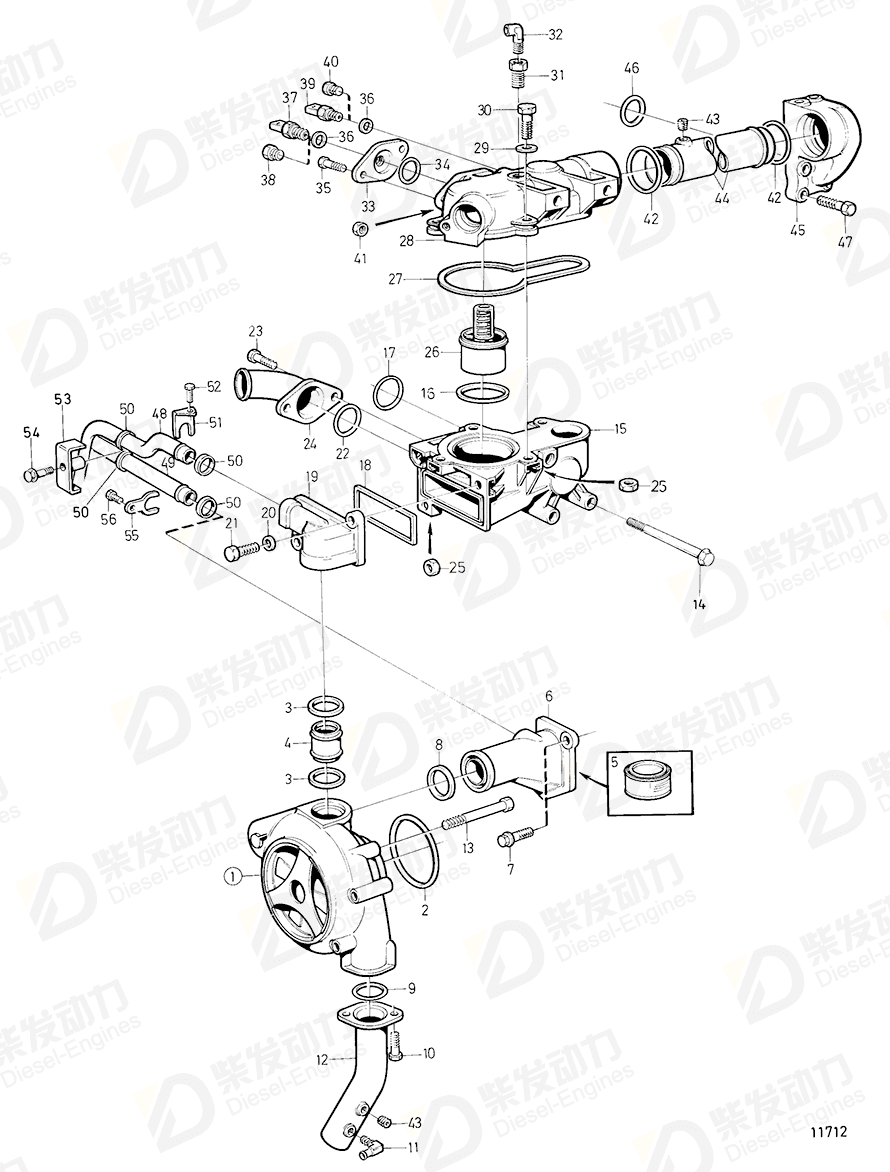

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 420759 | 1 | E.U=3803204, Repl by 477770-2 |
| 1 | Coolant pump | 8192050 | 1 | Repl by 3183908 |
| 2 | O-ring | 925095 | 1 | |
| 3 | Sealing ring | 469982 | 2 | |
| 4 | Pipe | 465886 | 1 | |
| 5 | Sealant | 1161231 | 1 | 304ml |
| 6 | Spacer | 465851 | 1 | |
| 7 | Flange screw | 945444 | 2 | |
| 8 | Sealing ring | 471629 | 1 | |
| 9 | O-ring | 925092 | 1 | |
| 10 | Flange screw | 945444 | 2 | |
| 11 | Elbow nipple | 942649 | 1 | |
| 12 | Coolant pipe | 848143 | 1 | |
| 13 | Flange screw | 965190 | 4 | |
| 14 | Flange screw | 965189 | 3 | |
| 15 | Thermostat housing | 876628 | 1 | Anodic treatment., (471780) |
| 16 | Sealing ring | 1544710 | 1 | |
| 17 | O-ring | 477059 | 1 | |
| 18 | Sealing ring | 471816 | 1 | |
| 19 | Housing | 471822 | 1 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Flange screw | 945444 | 2 | |
| 22 | O-ring | 925092 | 1 | |
| 23 | Flange screw | 945444 | 2 | |
| 24 | Water pipe | 848381 | 1 | |
| 25 | Hexagon nut | 955782 | 5 | |
| 26 | Thermostat | 1661993 | 1 | 76°C |
| 27 | Sealing ring | 471788 | 1 | |
| 28 | Cover | 420968 | 1 | |
| 29 | Spring washer | 941907 | 4 | |
| 30 | Flange screw | 946470 | 4 | |
| 31 | Nipple | 862109 | 1 | |
| 32 | Elbow nipple | 479953 | 1 | |
| 33 | Flange | 862618 | 1 | |
| 34 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 35 | Flange screw | 945444 | 2 | |
| 36 | Gasket | 947624 | 2 | |
| 38 | Plug | 960632 | 1 | |
| 40 | Plug | 960632 | 1 | |
| 41 | Hexagon nut | 955782 | 2 | |
| 42 | Sealing ring | 469982 | 2 | |
| 43 | Plug | 479977 | 1 | |
| 44 | Tube | 848655 | 1 | |
| 45 | Connecting pipe | 465911 | 1 | |
| 46 | O-ring | 477059 | 1 | |
| 47 | Flange screw | 965186 | 1 | |
| 47 | Flange screw | 965220 | 2 | |
| 48 | Coolant pipe | 862545 | 1 | Thermostat housing-oil cooler. |
| 48 | Coolant pipe | 865817 | 1 | Themostat housing-charger air cooler., Is used when compressor is mounted. |
| 49 | Coolant pipe | 862617 | 1 | Water pump-charge air cooler., TWD610G |
| 49 | Coolant pipe | 865815 | 1 | Water pump-charge air cooler., Is used when compressor is mounted. |
| 50 | Rubber moulding | 471626 | 5 | |
| 51 | Bracket | 849397 | 1 | |
| 52 | Flange screw | 946470 | 1 | |
| 53 | Attaching clamp | 849059 | 1 | |
| 54 | Flange screw | 965194 | 1 | |
| 55 | Clamp | 421654 | 1 | |
| 56 | Flange screw | 965175 | 1 |
| Item | Part Name | Part No. |
| 40 | Plug 960632 | 960632 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V, TWD1031VE TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1240GE, TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TAD1250VE, TAD1251VE, TAD1252VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1354GE, TAD1355GE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD1630P, TWD1630P TAD1630V TAD1631G, TAD1631GE TAD1640GE, TAD1641GE, TAD1642GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1641VE, TAD1642VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1643VE-B TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE TAD730G TAD730P TAD730V TAD740GE, TAD741GE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TAD940GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE TAD950VE, TAD951VE, TAD952VE TD100G-85 TD100G-87 TD100GG-85 TD100GG-87 TD100HP-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE TD1210G, TWD1210G, TWD1211G TD121GP-87, TWD1211P TD164KAE TD31ACE TD45B TD610G, TWD610G TD610G, TWD610G, TD710G, TWD710G TD610M TD610M, TD630ME TD610M, TD630ME, TWD630ME TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V TD610V, TD630VE, TWD630VE, TD640VE TD610V, TWD610V TD610V, TWD610V, TD630VE TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A, TD61AW TD61AG TD61AP TD630ME TD630VE TD640VE TD710G TD710G, TWD710G, TAD730G TD71A, TD71AW TD71A, TD730VE, TAD730V TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD71AG TD71AP TD730ME TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TID100K TID100K-87 TID100KG TID100KG-87 TID100KP-87 TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TID71A, TWD710V, TWD731VE TWD1010G TWD1031VE TWD1210G, TWD1211G TWD1210P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V, TWD1230VE TWD1230ME TWD1230VE TWD1231VE TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE TWD1630G TWD1630P TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE TWD610P TWD610V, TWD630VE TWD630ME TWD630VE TWD710G TWD710P TWD710P, TAD730P TWD730ME TWD731ME TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | After Cooler with Installation Components By-pass Filter for Higher Oil Volume, Alternative Location. By-pass Filter, Alternative Location Cylinder Block Flywheel Housing Flywheel Housing for Twin Starter Motors Fuel Filter Housing, Components. Fuel filter Fuel Filter, Alternative Location Fuel Filters Housing,Components. Fuel System Fuel System, Alternative Mounting Induction Manifold and Intercooler Induction Manifold with Starter Element Induction Manifold with Starter Element: B Inlet and Exhaust Manifold Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Inlet Manifold with Starter Element 1-pole: A Inlet Manifold with Starter Element 1-pole: B Inlet Manifold with Starter Element 2-pole SN1201090022- Lubricating System with Low Oil Sump Oil Cooler, Engine Oil Filter Housing and Oil Filter Oil Filter Housing and Oil Filter, Remote Mounted. Components Oil Filter Housing and Oil Filter,Alternative Mounting SN-2013601681 Oil Filter Housing and Oil Filter,Alternative Mounting SN2013601682- Oil Filter Housing, Components. Alternative Mounting. Oil Filter, Alt. Location Oil Filter, Alternative Location Oil Pump, Components Oil Pump: 11030633 Oil Pump: 4772128 Remote Fuel Filter, Open Power Unit Retarder. Thermostat Housing Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D Thermostat and Water Pump with Installation Components: TD100HPB87 Thermostat and Water Pump with Installation Components: TID100KGP87 Thermostat Housing Timing Gear Casing and Gears Timing Gear Casing and Gears, SN-2071082971 Timing Gear Casing and Gears, SN2071082972- Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Timing Gear Casing and Gears: C Timing Gear Housing Turbocharger Water Pump and Thermostat Water Pump and Thermostat Housing Water Pump and Thermostat Housing, Later Prod.: A Water Pump and Thermostat Housing, Later Prod.: B Water Pump and Thermostat Housing, Later Prod.: C Water Pump and Thermostat Housing, SN-XXXXXXXXXX/6060 Water Pump and Thermostat Housing, SNXXXXXXXXXX/6061- Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat SNXXXXXXXXXX/211549-: B Water Pump, Thermostat and Fan Bearing Water Pump, Thermostat Housing and Water Filter Water Pump, Thermostat Housing and Water Filter. Earlier Production Water Pump, Thermostat Housing and Water Filter. SN-2012326598 Water Pump, Thermostat Housing and Water Filter. SN2012326599- Water Pump, Thermostat Housing and Water Filter. with Air Compressor Mounted |
| Specification | |
| Descriptions | Alt Not for EDC Not when tachometer sensor is mounted. SN 1101010220/XXXXX-, M18 Std TD61APB TD61APB M18 TD71APB When tachometer sender not is mounted. |
