Plug 961130

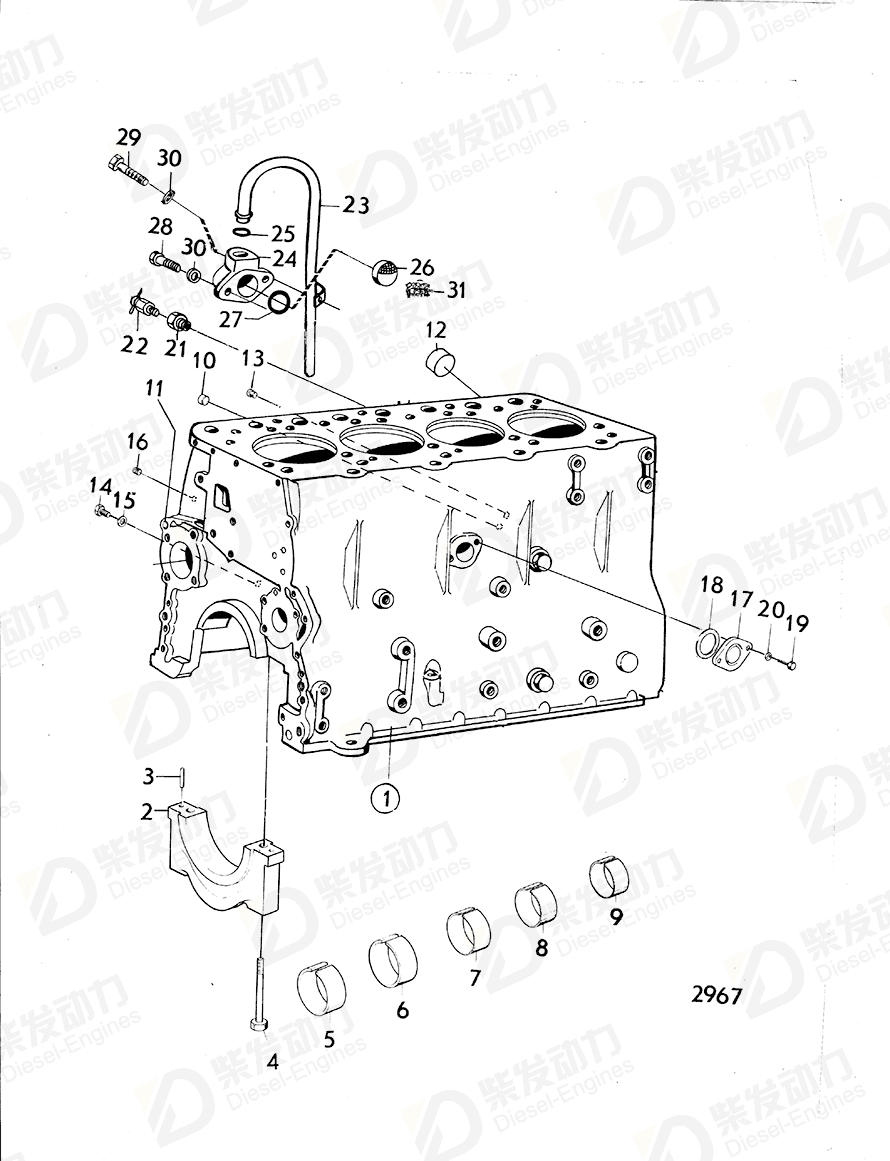

| No. | Part Name | Part Number | Qty | Description |
| 1 | Block | 785950 | 1 | REPLACED BY 1PC 787438, 1PC 961892, 1PC 947621, 1PC 981895, 1PC 947627, 1PC 6630496 |
| 1 | Cylinder block | 787438 | 1 | D42A PP SPEC. 16053, 867638. |
| 3 | Pin | 950564 | 1 | |
| 4 | Screw | 421153 | 10 | |
| 5 | Bushing | 785515 | 1 | |
| 6 | Bushing | 422079 | 1 | |
| 7 | Bushing | 422080 | 1 | |
| 8 | Bushing | 422081 | 1 | |
| 9 | Bushing | 785443 | 1 | |
| 10 | Cap plug | 967853 | 5 | |
| 11 | Cap plug | 955082 | 3 | |
| 12 | Cap plug | 70792 | 3 | |
| 13 | Plug | 952358 | 1 | MO-21082/XXXXX |
| 13 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 13 | Plug | 961895 | 1 | D42A PP SPEC. 16053, 867638 |
| 15 | Gasket | 947621 | 1 | |
| 15 | Gasket | 947627 | 1 | |
| 15 | Gasket | 957173 | 1 | |
| 16 | Plug | 961130 | 1 | |
| 17 | Cover | 785739 | 1 | |
| 18 | Gasket | 785764 | 1 | |
| 19 | Hexagon screw | 955512 | 2 | |
| 20 | Washer | 925737 | 2 | D42A PP SPEC. 16053, 867638 |
| 20 | Spring washer | 941906 | 2 | |
| 21 | Reduction nipple | 190130 | 1 | |
| 22 | Shut-off cock | 82745 | 1 | |
| 22 | Shut-off cock | 87502 | 1 | D42A PP SPEC. 16053, 867638. |
| 23 | Tube | 787175 | 1 | |
| 23 | Breather pipe | 787177 | 1 | D42A PP SPEC. 16053, 867638 |
| 24 | Anchorage | 787013 | 1 | |
| 25 | Sealing ring | 787017 | 1 | |
| 26 | Oil collector | 408578 | 1 | |
| 27 | Gasket | 778633 | 1 | |
| 28 | Hexagon screw | 940135 | 2 | |
| 29 | Hexagon screw | 955523 | 1 | |
| 30 | Spring washer | 941907 | 3 | |
| 31 | Copper wool | 6602101 | 1 |
| Item | Part Name | Part No. |
| 16 | Plug 961130 | 961130 |
| Details | |
| Engine model | D42A TD45B |
| Application | Cylinder Block and Related Part: A Cylinder Block and Related Part: B CYLINDER BLOCK AND RELATED PARTS |
