Plug 961896

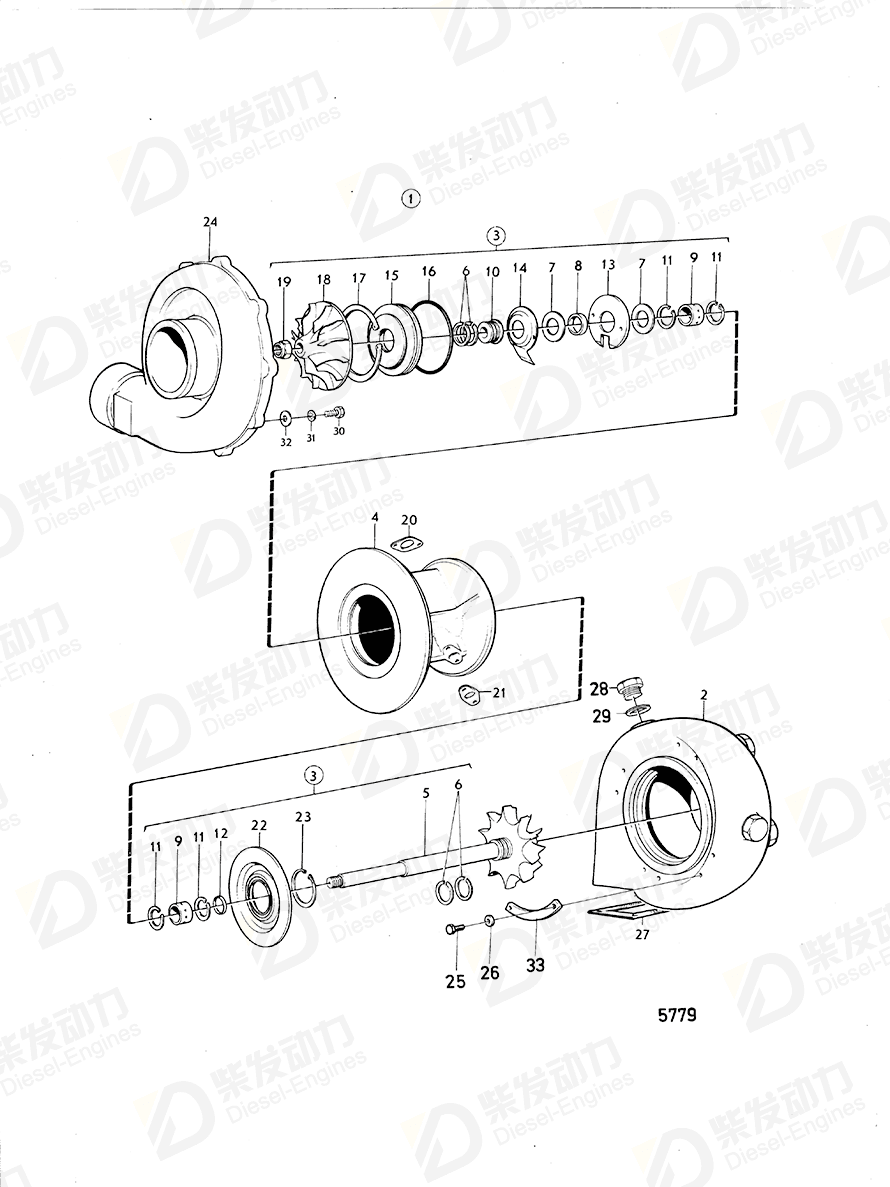

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 842427 | 1 | |
| 1 | Turbocharger | 3802009 | 1 | |
| 3 | Rotor | 843420 | 1 | |
| 5 | Turbine rotor | 467554 | 1 | |
| 7 | Thrust ring | 467026 | 2 | |
| 8 | Spacer sleeve | 422660 | 1 | |
| 10 | Ring retainer | 467556 | 1 | |
| 11 | Lock ring | 417727 | 4 | |
| 14 | Splash plate | 422662 | 1 | |
| 15 | Insert | 467557 | 1 | |
| 17 | Lock ring | 420467 | 1 | |
| 18 | Compressor wheel | 467558 | 1 | |
| 19 | Nut | 1518784 | 1 | (422669) |
| 20 | Gasket | 417378 | 1 | |
| 21 | Gasket | 417381 | 1 | |
| 23 | Lock ring | 422360 | 1 | |
| 25 | Hexagon screw | 940100 | 8 | |
| 26 | Washer | 843422 | 8 | |
| 27 | Gasket | 417382 | 1 | |
| 28 | Plug | 961896 | 8 | |
| 29 | Gasket | 957188 | 8 | |
| 30 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 31 | Spring washer | 941907 | 10 | |
| 32 | O-ring | 955984 | 10 | MO-13688/XXXXX |
| 33 | Striker plate | 843421 | 4 | |
| 33 | Repair kit | 843424 | 1 |
| Item | Part Name | Part No. |
| 28 | Plug 961896 | 961896 |
| Details | |
| Engine model | TD70G TD70G-83 TID70G |
| Application | Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Turbo: 842427 Turbo: 844452 |
