Plug 961965

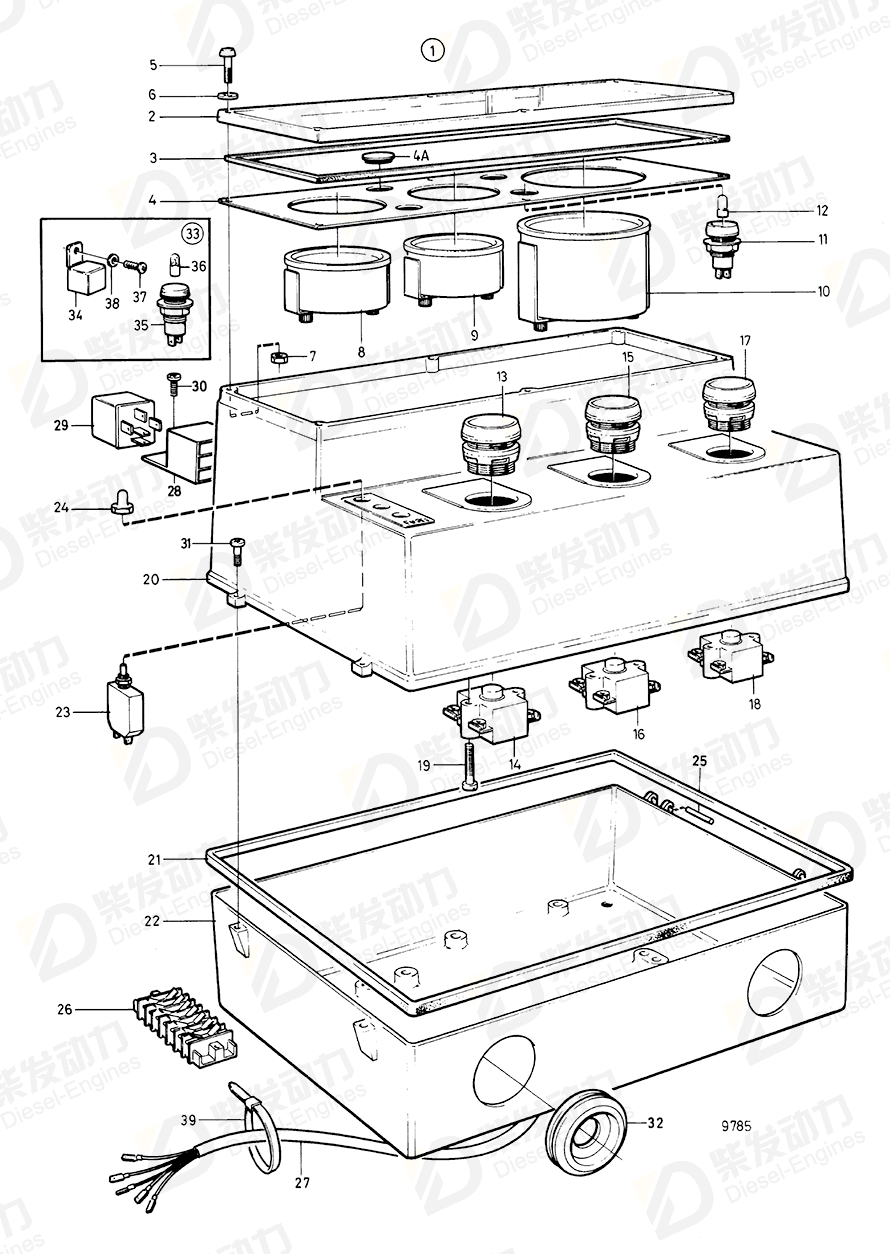

| No. | Part Name | Part Number | Qty | Description |
| 1 | Instrument panel | 849969 | 1 | Repl by 873627 |
| 1 | Instrument panel | 873627 | 1 | |
| 2 | Protecting cover | 873654 | 1 | (849842) |
| 3 | Sealing strip | 849885 | 1 | |
| 4 | Instrument plate | 863800 | 1 | |
| 5 | Cross recessed screw | 849963 | 6 | |
| 6 | Gasket | 862501 | 6 | |
| 7 | Flange nut | 990938 | 6 | M5,D+,B- |
| 8 | Oil pressure gauge, oil-pressure | 849849 | 1 | 24V |
| 9 | Thermometer, temperature | 849848 | 1 | 24V |
| 10 | Tachometer | 854915 | 1 | Repl by operating clock/tachometer 874496 and intermediate ring 873721., D=80mm |
| 11 | Bulb socket | 849966 | 1 | Warning lamp, amp. |
| 12 | Bulb | 182034 | 1 | (277803) |
| 13 | Push button | 863102 | 1 | Red |
| 14 | Contact | 863115 | 1 | Green-red |
| 15 | Push button | 863104 | 1 | |
| 16 | Contact | 863115 | 1 | Green-red |
| 17 | Push button | 863103 | 1 | Green |
| 18 | Contact | 863116 | 1 | Green |
| 19 | Cross recessed screw | 956063 | 6 | |
| 20 | Cap | 849838 | 1 | |
| 21 | Sealing strip | 849840 | 1 | |
| 22 | Box | 849839 | 1 | |
| 23 | Fuse | 966689 | 2 | 8A |
| 23 | Fuse | 968821 | 1 | 16A |
| 24 | Nut | 862006 | 2 | |
| 25 | Spring pin | 951967 | 2 | Included in repair kit 3830711. |
| 26 | Terminal block | 849992 | 1 | 5-pole |
| 26 | Terminal block | 849993 | 2 | 7-pole |
| 27 | Cable block | 862137 | 1 | |
| 28 | Housing | 977184 | 3 | 6,3x5x4,8/2,8x4 |
| 29 | Relay | 1504951 | 2 | For instrument panel 841096 and 841097., 24Vlate production. |
| 30 | Cross recessed screw | 956074 | 3 | EARLY TYPE |
| 31 | Cross recessed sunk | 862281 | 2 | |
| 32 | Plug | 943920 | 1 | I.D=40mm |
| 34 | Alarm separator | 863724 | 1 | |
| 35 | Bulb socket | 863721 | 1 | Warning lamp, low coolant level. |
| 35 | Bulb socket | 863722 | 1 | Warning lamp, low oil pressure. |
| 35 | Bulb socket | 863723 | 1 | Warning lamp, high coolant temperature. |
| 36 | Bulb | 182034 | 3 | (277803) |
| 37 | Cross recessed screw | 956089 | 1 | |
| 38 | Washer | 955892 | 1 | |
| 39 | Cable tie | 948211 | 1 | |
| 4A | Plug | 961965 | 3 |
| Item | Part Name | Part No. |
| 4A | Plug 961965 | 961965 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TWD1230ME TWD1231VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P TWD740VE |
| Application | Instrument Box Instrument Panel and Alarm Separator Kit Instrument Panel and Alarm Separator Kit, Earlier Production Instrument Panel and Alarm Separator Kit, Later Production Instrument Panel and Control Instrument Panel with Speed Control and Alarm Separator Kit |
