Pressure cap 844624

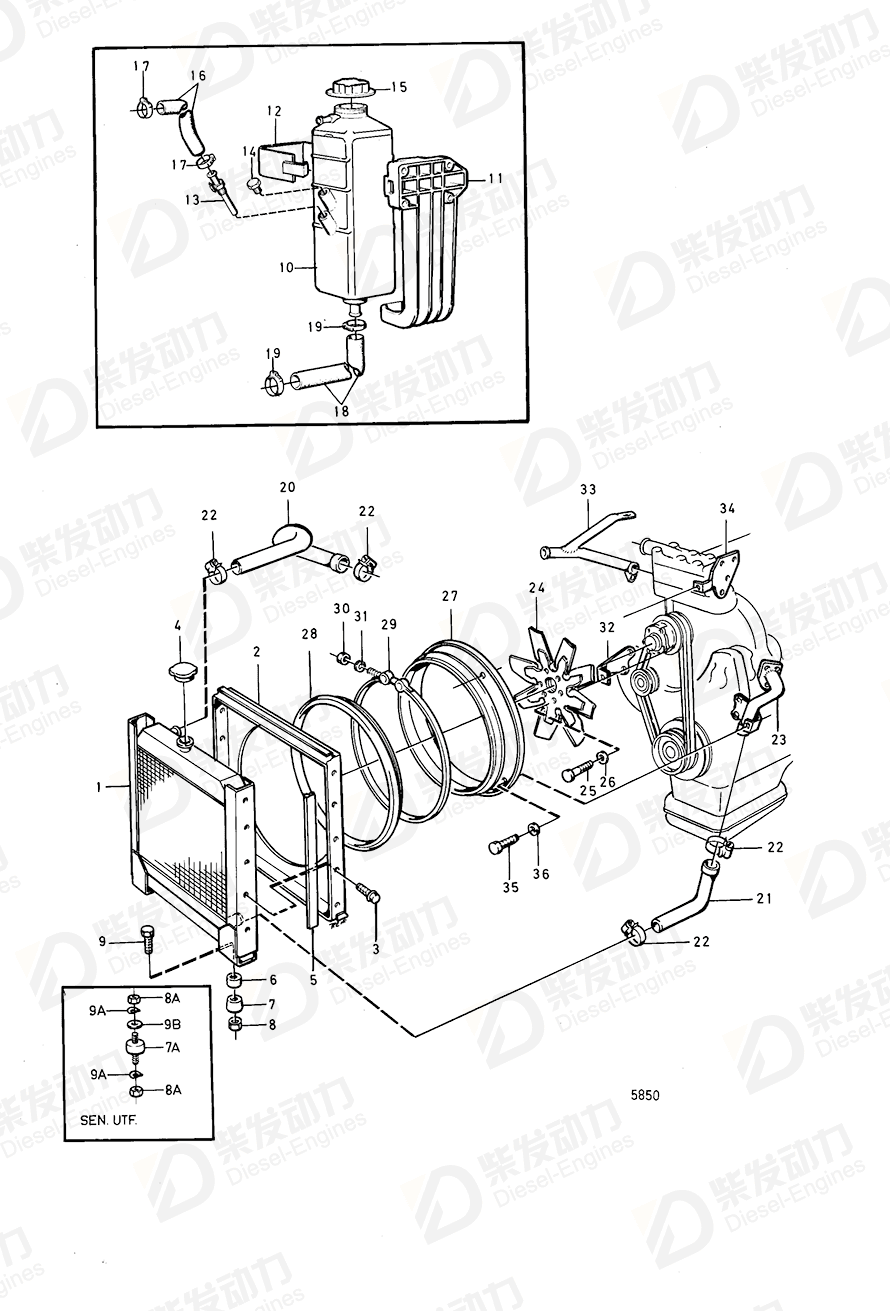

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 844043 | 1 | |
| 2 | Fan shroud | 844282 | 1 | D70B spec. 867055, 867060. TD70B spec. 867066 |
| 3 | Hexagon screw | 945970 | 14 | |
| 4 | Radiator cap insert | 323685 | 1 | |
| 5 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 6 | Sleeve | 807228 | 2 | |
| 7 | Rubber cushion | 833950 | 2 | Spec.868067 |
| 8 | Hexagon nut | 955850 | 2 | |
| 9 | Hexagon screw | 955314 | 2 | Early type |
| 10 | Expansion tank | 844062 | 1 | |
| 11 | Bracket | 843260 | 1 | |
| 12 | Clamp | 843266 | 1 | |
| 13 | Connecting pipe | 843247 | 1 | |
| 14 | Plug | 836268 | 1 | |
| 15 | Pressure cap | 844624 | 1 | |
| 16 | Rubber hose | 943366 | 1 | L=600mm late type |
| 17 | Hose clamp | 943470 | 2 | |
| 18 | Rubber hose | 943368 | 1 | L=4000mm |
| 19 | Hose clamp | 943472 | 2 | |
| 20 | Radiator hose | 844260 | 1 | |
| 21 | Radiator hose | 844261 | 1 | |
| 22 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 23 | Connecting pipe | 844947 | 1 | |
| 24 | Fan | 823716 | 1 | Spec. 867221., MD70BK spec 867116 MOXXXX/9685-, D=620mm |
| 24 | Fan, suction type | 843868 | 1 | D=750mm |
| 24 | Fan, pusher type | 843869 | 1 | D=750mm |
| 25 | Hexagon screw | 955535 | 6 | |
| 26 | Spring washer | 942336 | 6 | |
| 27 | Fan ring | 476807 | 1 | Compl |
| 28 | Sealing strip | 476612 | 1 | |
| 29 | Hose clamp | 1544650 | 1 | |
| 30 | Hexagon nut | 955780 | 1 | |
| 31 | Washer | 940090 | 1 | |
| 32 | Bracket | 844012 | 1 | |
| 33 | Bracket | 844023 | 1 | |
| 34 | Bracket | 476438 | 1 | |
| 35 | Hexagon screw | 955294 | 4 | |
| 36 | Spring washer | 941907 | 4 | |
| 7A | Rubber cushion | 833720 | 2 | |
| 8A | Hexagon nut | 955850 | 4 | |
| 9A | Spring washer | 940280 | 4 | |
| 9B | Washer | 955898 | 2 | Late type |
| Item | Part Name | Part No. |
| 15 | Pressure cap 844624 | 844624 |
| Details | |
| Engine model | D70CRC, TD70CRC TD100G-87 TD1010G, TWD1010G TD120C TD120G TD30A TD31ACE TD40A TD60A TD60B TD60D TD60D-83 TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD61A, TD61AW, TD71A, TD71AW, TID71A TD61ACE, TD71ACE TD70G TID60DG |
| Application | Radiator Radiator and Fan Protection with Installation Components Radiator and Fan with Installation Components Spec.867578 RADIATOR AND FAN WITH INSTALLATION COMPONENTS: A RADIATOR AND FAN WITH INSTALLATION COMPONENTS: B Radiator and Fan, 35°C Radiator and Installation Components Radiator and Installation Components 35CG: A Radiator and Installation Components: A Radiator and Installation Components: B Radiator with Installation Components |
| Specification | |
| Descriptions | (1542591) ALT For TWD1010G |
